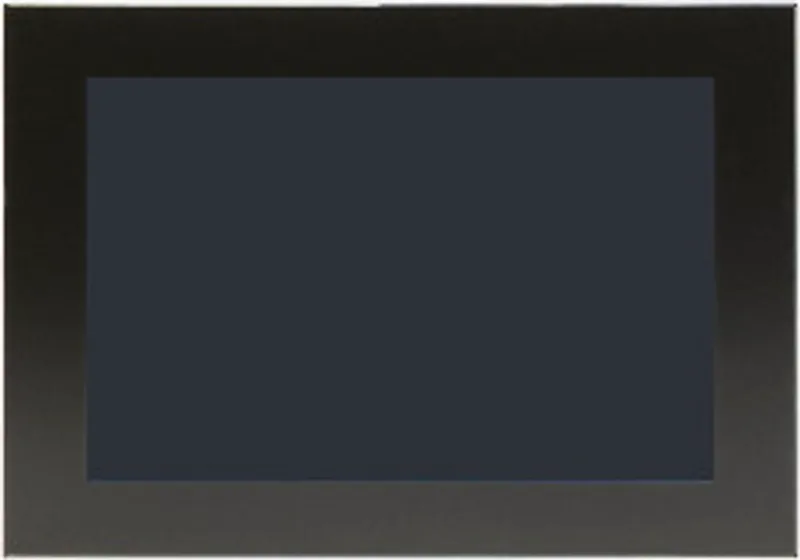

B&R 4PPC80.101E-13A – Power Panel C80, 10.1", glass front (anti-glare)

Name: B&R 4PPC80.101E-13A – Power Panel C80, 10.1", glass front (anti-glare)
Brand: B&R
SKU: 4PPC80.101E-13A

MPN: 4PPC80.101E-13A · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Power Panel C80
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.6 kg

Shipping & availability

When can 4PPC80.101E-13A be shipped?

4PPC80.101E-13A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 4PPC80.101E-13A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 4PPC80.101E-13A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PPC80.101E-13A, subject to availability and destination.

Power Panel C80, 10.1", glass front (anti-glare), fieldbus interfaces: 1x CAN bus, 1x RS485. CPU and memory: 1600 MHz (Intel Atom E3940), 4 GB DRAM, 64 kB FRAM, 4 GB onboard flash drive. Display and touch screen: 10.1", 1280 x 800 (WXGA) resolution, projected capacitive touch screen, multi-touch support, anti-glare glass front with black frame, landscape and portrait format configurable with software. Interfaces: 1x POWERLINK, 1x Ethernet 10/100/1000 Mbit/s, 1x X2X Link, 2x USB 3.0, 1x CAN bus, 1x RS485.

Accessories

Optional accessories (8)

0TB6102.3100-00	Terminal blocks — Accessory 2-pin cage clamp terminal block (3.81)
0TB1210.3100	Terminal blocks — Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfa…
5ACCRHMI.0018-000	Accessories — HMI C80/PPC1200 battery compartment - 1x battery holder C80/PPC1200 - 1x battery including circuit board
6ACCRPP3.0001-000	Other — This installation kit contains the following replacement parts: 9 retaining clips with torque limiting; 1x 2-pin cage clamp terminal block;…
0TB6102.3000-00	Terminal blocks — 2-pin accessory screw clamp terminal block (3.81)
5MMUSB.4096-02	USB accessories — USB 3.0 flash drive 4096 MB SLC - Only for HMI products
5MMUSB.4096-01	USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB…
5MMUSB.2048-01	USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M…

Specifications

General information

Support – mapp View	Yes
Support – Controller redundancy	No
Support – Visual Components support	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Light transmission	70%
B&R ID code	0xF9E0
Cooling	Passive
Power button	No
Reset button	Yes
Status indicators	Operating state, terminating resistor LEDs, interface status
Buzzer	No

Controller

Processor – Data code	32 kB
Processor – Program code	32 kB
Processor – Type	Intel Atom x5-E3940
Processor – Clock frequency	1600 MHz
Processor – Total number of cores	4
Processor – Architecture	14 nm
Processor – Thermal design power (TDP)	9.5 W
Processor – L2 cache	2 MB
Processor – Intel 64 architecture	Yes
Processor – Intel Hyper-Threading Technology	No
Processor – Intel vPro Technology	No
Processor – Intel Virtualization Technology (VT-x)	Yes
Processor – Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Processor – Enhanced Intel SpeedStep Technology	Yes
Real-time clock – Accuracy	At 25°C: Typ. 12 ppm (1 second) per day " data-placement="top" data-html="true" data-container="body" data-content="At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).">
Real-time clock – Retention time	Approx. 8 years
Real-time clock – Battery-backed	Yes
Memory – Type	LPDDR4 SDRAM
Memory – Memory size	4 GB
Memory – Velocity	DDR4L-2133
Memory – Memory interface width	Dual channel
Memory – Removable	No
Graphics – Controller	Intel HD Graphics
Graphics – Max. dynamic graphics frequency	600 MHz
Graphics – Color depth	Max. 32-bit
Graphics – DirectX support	12
Graphics – OpenGL support	4.3
Application memory – Theoretical	150 TBW
Application memory – Client workload	90 TBW " data-placement="top" data-html="true" data-container="body" data-content="TBW = Terabytes written">
Application memory – Type	Flash memory 5 GB NVMe pSLC
Application memory – Data retention	10 years
Application memory – Error-correcting code (ECC)	Yes
Real-time clock " data-placement="top" data-html="true" data-container="body" data-content="The real-time clock is backed up by a battery.">	Nonvolatile, resolution 1 s
Mode/Node switches	No
Remanent variables	64 kB FRAM, retention >10 years " data-placement="top" data-html="true" data-container="body" data-content="The memory size for remanent variables is configurable in Automation Studio. Permanent variables are not supported.">
Shortest task class cycle time	0.4 ms
Typical instruction cycle time	0.01 µs
Chipset	Apollo Lake
Power management	ACPI 5.0

Display

Viewing angles – Horizontal	Direction L / Direction R = Typ. 85°
Viewing angles – Vertical	Direction U / Direction D = Typ. 85°
Backlight – Type	LED
Backlight – Brightness	Typ. 500 cd/m²
Backlight – Half-brightness time " data-placement="top" data-html="true" data-container="body" data-content="At 25°C ambient temperature. Reducing the brightness by 50% can typically increase the half-brightness time by approximately 50%.">	50,000 h
Filter glass – Transmittance	≥85%
Touch screen – Type	Multi-touch
Touch screen – Technology	PCT (projected capacitive touch)
Touch screen – Surface	Glass, chemically hardened (6H), anti-glare
Type	TFT color
Diagonal	10.1"
Colors	16.7 million LVDS
Resolution	WXGA; 1280 x 800 px
Contrast	Typ. 800:1
Screen rotation	Yes " data-placement="top" data-html="true" data-container="body" data-content="Can be set using software.">

Interfaces

Interface IF1 – Fieldbus	POWERLINK V2 managing or controlled node
Interface IF1 – Type	Type 4 " data-placement="top" data-html="true" data-container="body" data-content="See section "Communication → POWERLINK → General information → Hardware - IF/LS" in Automation Help">
Interface IF1 – Variant	1x RJ45 shielded
Interface IF1 – Line length	Max. 100 m between 2 nodes (segment length)
Interface IF1 – Max. transfer rate	100 Mbit/s
Interface IF2 – Physical layer	10BASE-T/100BASE-TX/1000BASE-T
Interface IF2 – Half-duplex	Yes
Interface IF2 – Full-duplex	Yes
Interface IF2 – Autonegotiation	Yes
Interface IF2 – Auto-MDI/MDIX	Yes
Interface IF2 – Type	Ethernet
Interface IF2 – Variant	1x RJ45 shielded
Interface IF2 – Line length	Max. 100 m between 2 nodes (segment length)
Interface IF2 – Max. transfer rate	10/100/1000 Mbit/s
Interface IF3 – Variant	Internal Ethernet interface
Interface IF4 – Type	USB 3.0
Interface IF4 – Variant	Type A
Interface IF4 – Current-carrying capacity	1 A
Interface IF5 – Fieldbus	USB 3.0
Interface IF5 – Variant	Type A
Interface IF5 – Current-carrying capacity	1 A
Interface IF6 – Fieldbus	X2X Link master
Interface IF6 – Max. distance	Max. 100 m between 2 nodes (segment length)
Interface IF7 – Bus length ≤25 m	1 Mbit/s
Interface IF7 – Bus length ≤60 m	500 kbit/s
Interface IF7 – Bus length ≤200 m	250 kbit/s
Interface IF7 – Bus length ≤1000 m	50 kbit/s
Interface IF7 – Type	CAN bus
Interface IF7 – Variant	3 pins of the 10-pin multipoint connector; Galvanically isolated
Interface IF10 – Type	RS485
Interface IF10 – Variant	3 pins of the 10-pin multipoint connector
Interface IF10 – Transfer rate	Max. 115.2 kbit/s

Electrical properties

Nominal voltage	24 VDC, SELV/PELV " data-placement="top" data-html="true" data-container="body" data-content="IEC 61010-2-201 requirements must be observed; see section "+24 VDC power supply" in the user's manual.">
Nominal current	1.4 A
Operating voltage	24 VDC ±25%
Inrush current	Typ. 5 A, max. 100 A for < 50 μs
Power consumption " data-placement="top" data-html="true" data-container="body" data-content="Power consumption including all interfaces.">	33.6 W
Fuse	10 A fast, internal " data-placement="top" data-html="true" data-container="body" data-content="The internal fuse cannot be replaced by the user or reset.">
Reverse polarity protection	Yes
Galvanic isolation	No
Electrical isolation	POWERLINK (IF1), Ethernet (IF2), X2X Link (IF6) and CAN (IF7) to each other, to other interfaces and to the base device

Operating conditions

Permissible mounting orientations " data-placement="top" data-html="true" data-container="body" data-content="For details, see section "Installation and wiring"."> – Standard mounting orientation	Vertical
Permissible mounting orientations " data-placement="top" data-html="true" data-container="body" data-content="For details, see section "Installation and wiring"."> – Rotation	In 90° increments (portrait/landscape)
Degree of protection per EN 60529	Rev. F0 and later: IP65 front; Up to Rev. E8: IP55 front; Back: IP20

Ambient conditions

Temperature – Operation	-20 to 60°C " data-placement="top" data-html="true" data-container="body" data-content="The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.">
Temperature – Storage	-20 to 80°C
Temperature – Transport	-20 to 80°C
Elevation – Operation	Max. 3000 m " data-placement="top" data-html="true" data-container="body" data-content="The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.">
Relative humidity	See section "Temperature/Humidity diagrams".

Mechanical properties

Front – Design	Black
Dimensions – Width	279 mm
Dimensions – Height	191 mm
Dimensions – Depth	41.2 mm
Weight	1.6 kg

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Installation- / EMC-Guide	PDF · 20 MB · 1.43 (12/20/2022) - EN
Power Panel C80 Model number key	PDF · 124 KB · 2.00 (04/25/2024)
Power Panel C80 user's manual	PDF · 8 MB · 1.06 (12/10/2024) - EN
