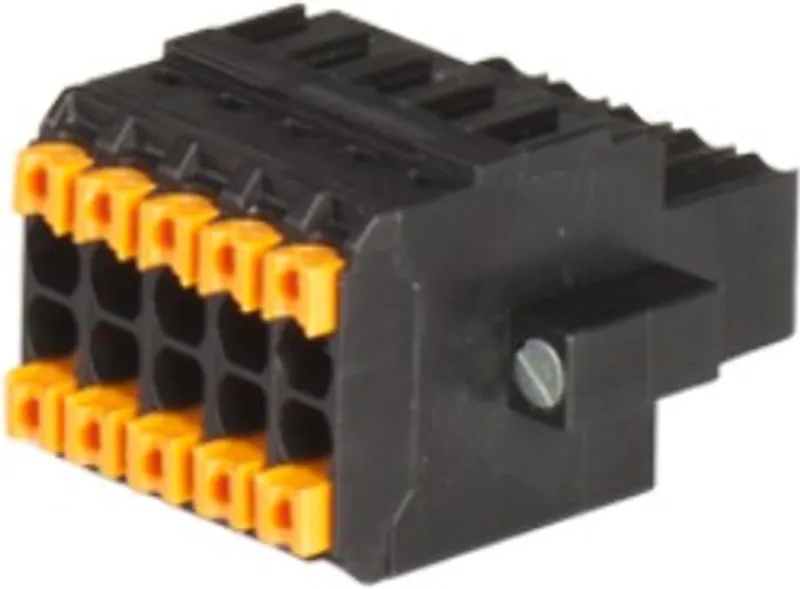

B&R 0TB1210.3100 – Two-row 10-pin terminal block 0TB1210.3100 is used to…

Name: B&R 0TB1210.3100 – Two-row 10-pin terminal block 0TB1210.3100 is used to…
Brand: B&R
SKU: 0TB1210.3100

MPN: 0TB1210.3100 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Terminal blocks
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 0TB1210.3100 be shipped?

0TB1210.3100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB1210.3100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB1210.3100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB1210.3100, subject to availability and destination.

Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfaces of various interface options.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 " data-placement="top" data-html="true" data-container="body" data-content="Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.">
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) " data-placement="top" data-html="true" data-container="body" data-content="Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.">
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck

Terminal block

Connection cross section – AWG wire	26 to 16 AWG
Connection cross section – Wire end sleeves with plastic covering	0.14 to 1 mm²
Connection cross section – Single-wire	0.14 to 1.5 mm²
Connection cross section – Fine-stranded wires	0.14 to 1.5 mm²
Connection cross section – With wire end sleeve	0.14 to 1.5 mm²
Note	Nominal data per UL
Number of pins	10 (female)
Type of terminal block	Push-in spring connection
Cable type	Only copper wires (no aluminum wires!)
Pitch	3.5 mm

Electrical properties

Nominal voltage	300 V
Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!">	10 A
