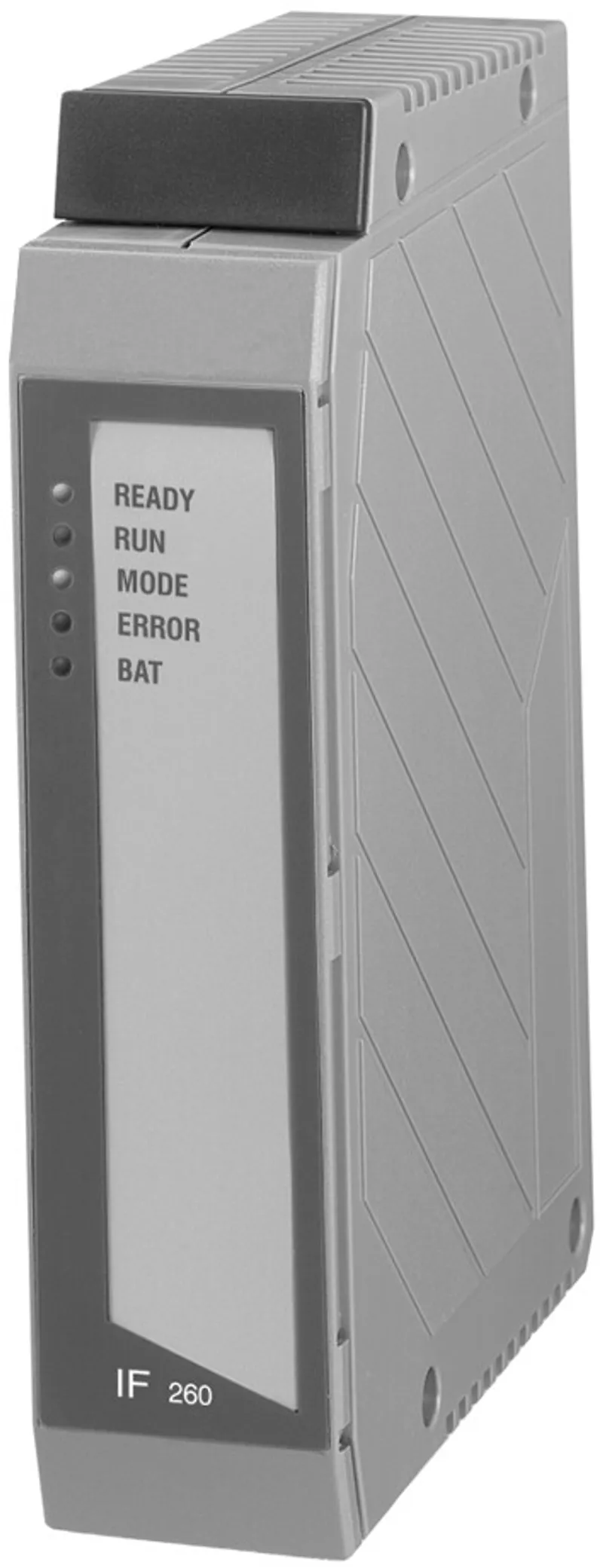

B&R 3IF260.60-1 – 2005 CPU or programmable interface processor, 850 kB SRAM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3IF260.60-1 be shipped?
3IF260.60-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3IF260.60-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3IF260.60-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF260.60-1, subject to availability and destination.
2005 CPU or programmable interface processor, 850 kB SRAM, 1.5 MB FlashPROM, 1 insert slot for connectable interface modules
Specifications
General Information
| C-UL-US Listed | Yes |
| B&R ID Code | $2A |
| Slot – ≥4 | Programmable interface processor operation |
| Power Consumption – 5V | Max. 3.5 W |
| Power Consumption – Total | Max. 3.5 W |
| Typical Instruction Cycle Time | 0.4 µs |
| Memory Capacity – System RAM | 174 KB SRAM |
| Memory Capacity – User RAM | 850 KB SRAM |
| Memory Capacity – System PROM | 512 KB FlashPROM |
| Memory Capacity – User PROM | 1536 KB FlashPROM |
| Real-time Clock | Nonvolatile |
| Resolution | 1s |
| Insert Slots | 1 (for interface module inserts) |
| Reset Button | Yes |
| Status Display | 5 Status LEDs |
| NC-Synchronization | Yes |
| Data Buffering – Backup Battery in 2005 Backplane | At least 4 years |
| Data Buffering – Buffering with AC240 Battery Module | At least 2.5 years |
| Data Buffering – Buffering with NiMH Rech. Battery | At least 2 months |
| Data Buffering – Battery Monitoring | Yes (when operated as main CPU) |
Mechanical Characteristics
| Dimensions | B&R 2005 single-width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3IF260.60-1 | PDF · 441 KB · 1.0 (06/08/2004) - EN |
