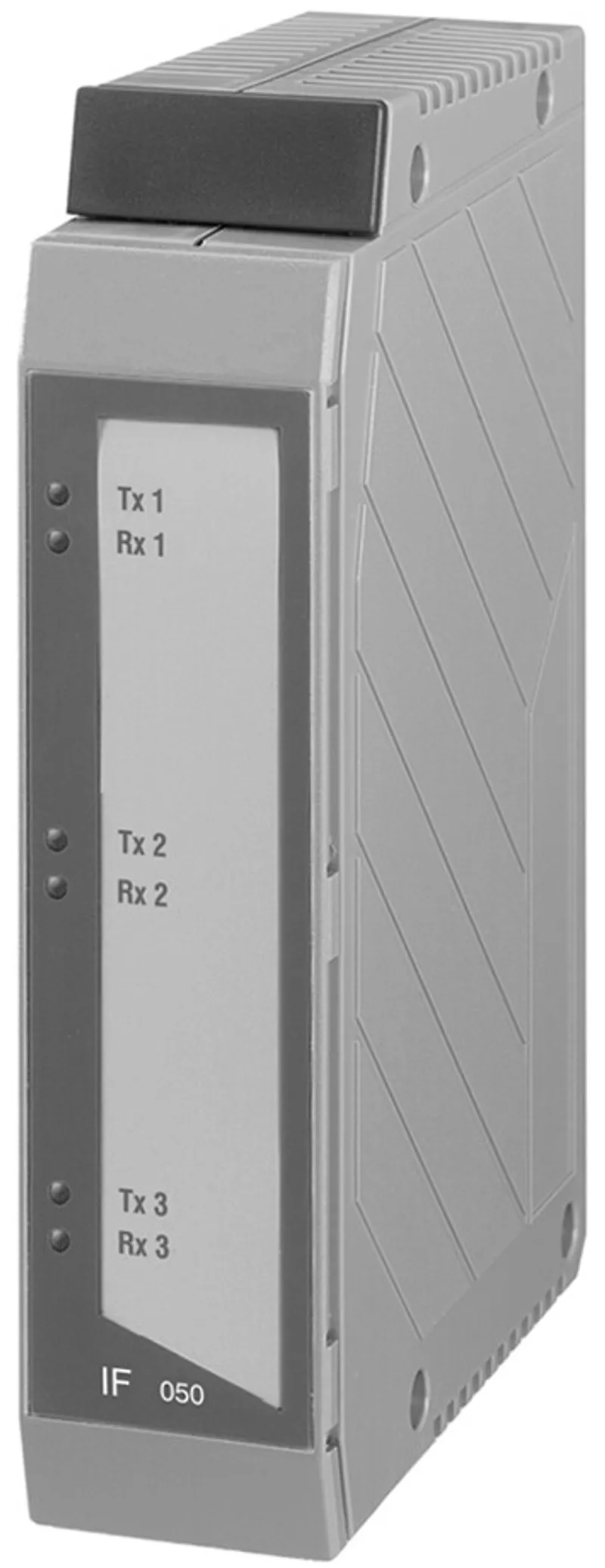

B&R 3IF050.6 – 2005 interface module 1 RS232 interface 1 RS485/RS422
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3IF050.6 be shipped?
3IF050.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3IF050.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3IF050.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF050.6, subject to availability and destination.
2005 interface module 1 RS232 interface 1 RS485/RS422, network-capable 1 RS232/TTY interface all interfaces electrically isolated
Accessories
Optional accessories (2)
| 0G1000.00-090 | Infrastructure components — The RS485 bus connector is used to connect a controller to a Profibus network or an RS485 network. The terminating resistor is integrated i… |
| 0AC916.9 | Infrastructure components — Bus termination, RS485, active for PROFIBUS networks, remote I/O standard top-hat rail mounting supply voltage: 120 / 230 VAC |
Specifications
General Information
| C-UL-US Listed | Yes |
| B&R ID Code | $60 |
| Processor | RISC |
| Dual Ported RAM (DPR) | 576 bytes |
| Type | RS232 RS485/RS422 1) RS232/TTY |
| Input Filter / Protective Circuit | Yes Yes Yes |
| Electrical Isolation – Interface - PLC | Yes Yes Yes |
| Electrical Isolation – Interface - Interface | Yes Yes Yes |
| Design | 9-pin 9-pin 9-pin DSUB plug DSUB socket DSUB plug |
| Maximum Distance | 15 m / 19200 Baud 1200 m (without repeater) RS232: 15 m / 19200 Baud TTY: 300 m |
| Handshake Lines | DCD, DTR, DSR, --- RS232: RTS, CTS RTS, CTS, RI TTY: --- |
| Baud Rates1) | Max. 64 kBaud Max. 347 kBaud RS232: Max. 64 kBaud TTY: Max. 2.4 kBaud |
| Network Capable | No Yes No (with a max. of 32 transmitters, 32 receivers and two terminating resistors can be loaded per bus segment) |
| Data Formats | 5 to 8 data bits, parity yes / no / even / odd , 1 / 1.5 / 2 stop bits |
| Power Consumption – 5V | Max. 7 W |
| Power Consumption – Total | Max. 7 W |
| Dimensions | B&R 2005 single-width |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3IF050.6 | PDF · 1,014 KB · 1.0 (06/08/2004) - EN |
