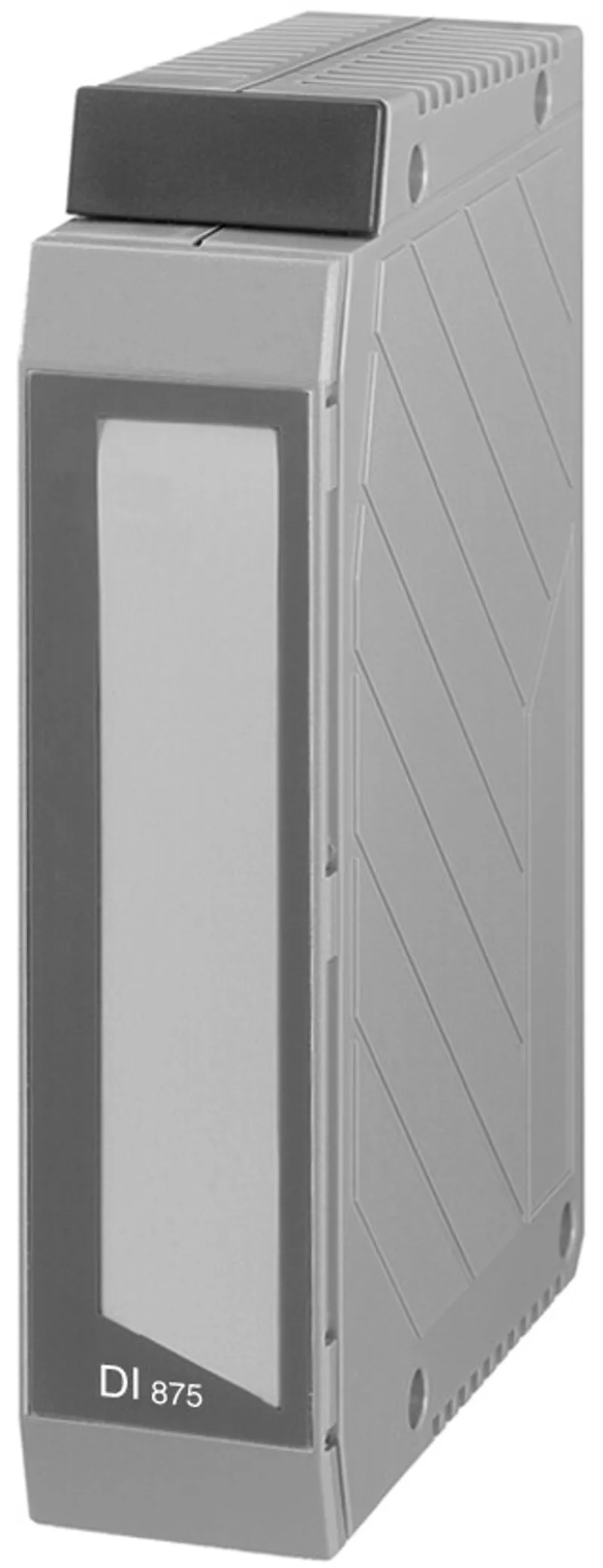

B&R 3DI875.6 – I/O module, 16 NAMUR inputs in 2 groups

MPN: 3DI875.6 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3DI875.6 be shipped?

3DI875.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3DI875.6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3DI875.6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DI875.6, subject to availability and destination.

2005 digital input module, 16 NAMUR inputs, 8.05 VDC, 2 electrically isolated input groups, order 2x TB718 terminal blocks separately!

Accessories

Required accessories (order separately)

7TB718.91	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB718.9	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Specifications

Short description

I/O module

16 NAMUR inputs in 2 groups

General information

Diagnostics – I/O power supply	Yes, using LED status indicator
Diagnostics – Short circuit	Yes, using LED status indicator and software
Diagnostics – Open circuit	Yes, using LED status indicator and software
Power consumption – 24 VDC	4.8 W
Power consumption – 5 VDC	1.3 W
Power consumption – Total	6.1 W
Electrical isolation – Group - Group	Yes
Electrical isolation – Channel - Channel	No (same group)
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	I/O function per channel, operating state per channel, I/O power supply per input group

NAMUR inputs

Input filter – Hardware	≤1 ms
Input filter – Software	-
Input circuit	For NAMUR encoder per EN 60947-5-6
Open-circuit voltage	8.05 V ±5%

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 2x TB718 terminal blocks separately
