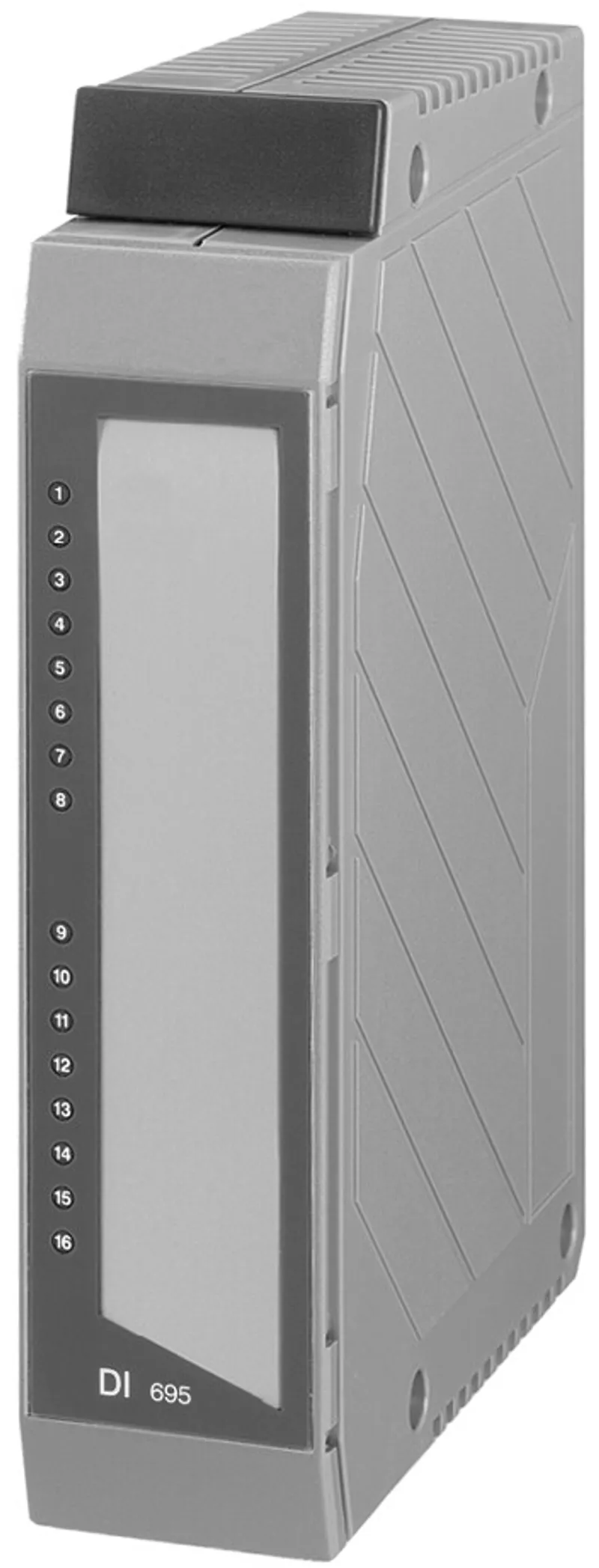

B&R 3DI695.6 – I/O module, 16 digital inputs 120 / 230 VAC in 2 groups
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 3DI695.6 be shipped?
3DI695.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3DI695.6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3DI695.6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DI695.6, subject to availability and destination.
2005 digital input module, 16 inputs 120 / 230 VAC, 50 ms, 2 electrically isolated input groups, order 1x terminal block TB170 separately!
Accessories
Specifications
Short description
| I/O module | 16 digital inputs 120 / 230 VAC in 2 groups |
General information
| Power consumption – 24 VDC | - |
| Power consumption – 5 VDC | 1.5 W |
| Power consumption – Total | 1.5 W |
| Power consumption – External | 4 W |
| Electrical isolation – Group - Group | Yes |
| Electrical isolation – Channel - Channel | No (same group) |
| Electrical isolation – Channel - PLC | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Status indicators | I/O function per channel |
Digital inputs
| Input filter – Hardware | ≤50 ms |
| Input filter – Software | - |
| Nominal voltage | 120 to 230 VAC |
| Rated frequency | 50 to 60 Hz |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Dimensions – Width | System 2005 single-width |
| Can be installed on – Base unit | Yes |
| Can be installed on – Expansion unit | Yes |
| Note | Order 1x terminal block TB170 separately. |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 3DI695.6 | PDF · 341 KB · 1.0 (06/08/2004) - EN |
