Bosch Rexroth R911172535

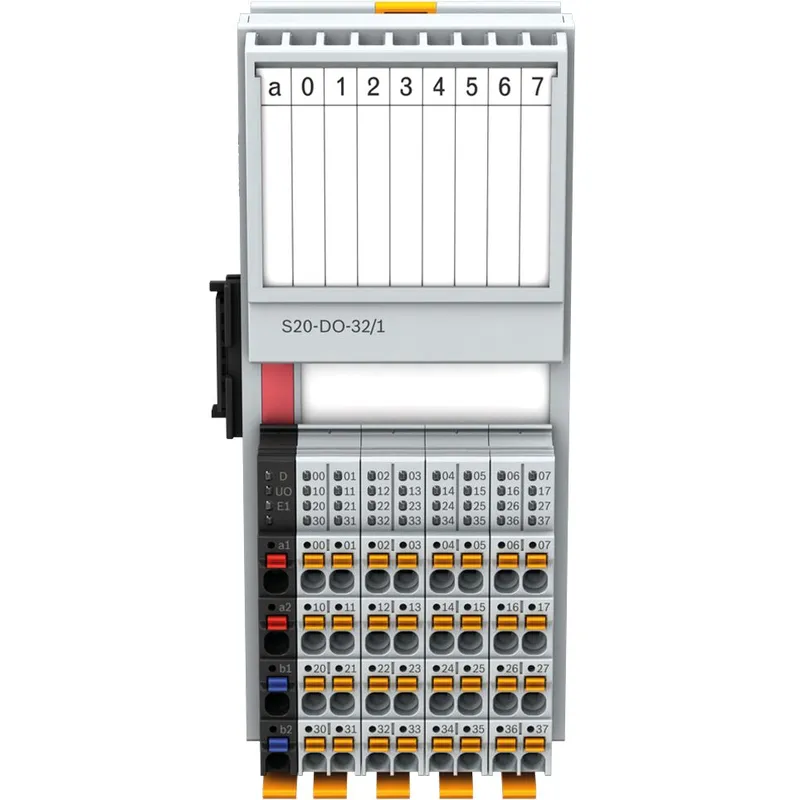

DIGITAL OUTPUT MODULE S20-DO-32/1

MPN: R911172535
Category: Digital Output Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911172535?

S20 in protection type IP20 is the flexibly scalable I/O system for shortest cycle times and highest precision and provides a real-time data flow between control and peripherals - whether locally at the XM control or as decentralized I/O station.

Compact, modular and simple

Space-saving I/O technology for top hat rail mounting

Individually combinable modules

Innovative assembly and installation concept

Specifications

Connection type	Push-in
Connectivity technology	1-wire technique
Number of channels	32
Max. output current per channel [A]	0.5
Width [mm]	53.6
Height [mm]	54
Depth [mm]	126.1
International protection code	IP20
Nominal output voltage [V DC]	24
Logic voltage UBus [V DC]	5
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	5-95
Permissible air humidity (transport) [%]	5-95
Ambient temperature (storage and transport) [°C]	-40-85
Ambient temperature (during operation) [°C]	-25-60
Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Weight [kg]	0.24
