Digital Output Modules Parts
Compare Digital Output Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connectivity technology | Number of channels | Max. output current per channel [A] | Width [mm] | Weight [kg] |
|---|---|---|---|---|---|
| R911173749 | 2-wire technique | 4 | 0.008 | 53.6 | 0.26 |
| R911172541 | 2-wire technique | 8 | 0.002 | 35 | 0.19 |

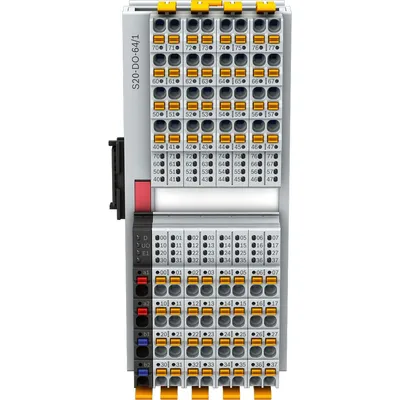

| R911173742 | 1-wire technique | 64 | 0.5 | 53.6 | 0.01 |
| R911172535 | 1-wire technique | 32 | 0.5 | 53.6 | 0.24 |

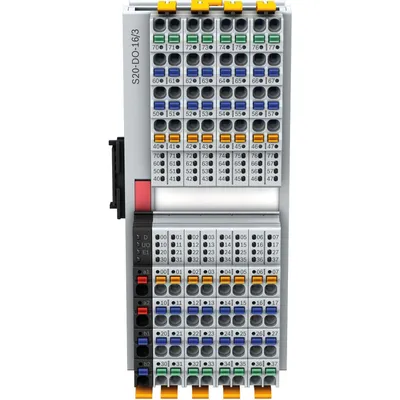

| R911172534 | 2-wire, 3-wire technique | 16 | 0.5 | 53.6 | 0.3 |
| R911172542 | 1-wire technique | 16 | 0.5 | 35 | 0.18 |
Common to all listed parts
| Connection type | Push-in |
| Height [mm] | 54 |
| International protection code | IP20 |
| Logic voltage UBus [V DC] | 5 |
| Permissible air humidity (storage) [%] | 5-95 |
| Permissible air humidity (transport) [%] | 5-95 |
| Ambient temperature (storage and transport) [°C] | -40-85 |
| Ambient temperature (during operation) [°C] | -25-60 |
