Bosch Rexroth R902271111

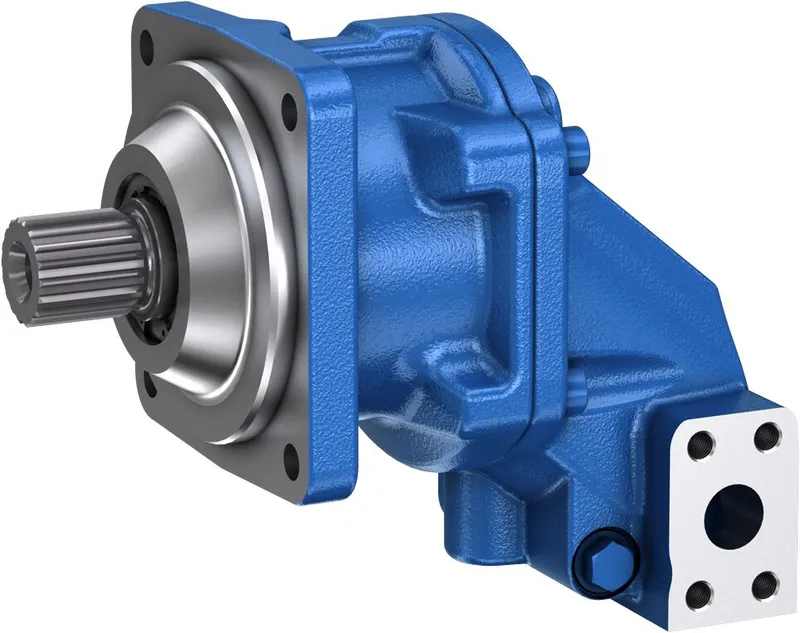

AXIAL-PISTON MOTOR A2FMM045/70NWVM4Z602D00-0 *GO2EU*

MPN: R902271111
Category: Axial piston fixed motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R902271111?

The A2FM is a fixed motor with an axial tapered piston rotary group with a bent-axis design for hydrostatic drives in open and closed circuits. In axial piston units with a bent-axis design, the pistons are arranged at an angle to the drive shaft. The pistons rest directly on the drive shaft where they generate torque depending on the pressure.

Very high power density

Very high total efficiency

High starting efficiency

Robust 40° bent-axis technology

Specifications

Product family	A2FM
Type of actuation	Motor
Pressure range	400 to 450 bar
Size (displacement) [cm³]	45
Series	70
Port and fastening threads	metric (DIN 3852)
Direction of rotation	alternating
Sealing material	FKM fluorocarbon rubber
Shaft end	Splined shaft W30x2x30x14x9
Mounting flange	ISO3019-2 metric 125-4
Port plate for service lines	SAE A and B lateral
Valves	Rinsing and feed v.: 4.0 L/min
Sensors	without
Special version	Standard version
Flushing flow [l/min]	4.0
Shaft seal ring	Standard
For pressure differential (bar) [bar]	25.0
Cracking pressure of boost pressure valve [bar]	16
Port A	SAE 3/4 fastening thread M10
Port T1	M18x1.5 plugged
Port T2	M18x1.5 open
Port R	without
Port B	SAE 3/4 fastening thread M10
Classification society (external)	Standard (without acceptance)
Test certificate	without
Test certificate language code	Without
Paint/base coat	RAL 9005 deep black
Paint/top coat	without
Weight [kg]	17
