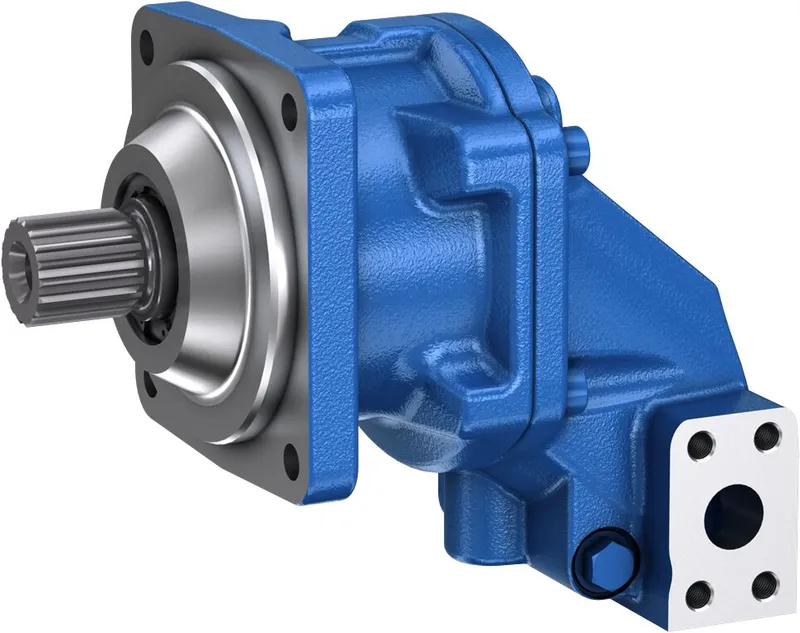

AXIAL-PISTON MOTOR A2FMM063/70NWVM4Z802E00-0 *GO2EU*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston fixed motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902271109 be shipped?
R902271109 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902271109 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902271109 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902271109, subject to availability and destination.
The A2FM is a fixed motor with an axial tapered piston rotary group with a bent-axis design for hydrostatic drives in open and closed circuits. In axial piston units with a bent-axis design, the pistons are arranged at an angle to the drive shaft. The pistons rest directly on the drive shaft where they generate torque depending on the pressure. Very high power density Very high total efficiency High starting efficiency Robust 40° bent-axis technology
Specifications
Specifications
| Product family | A2FM |
| Type of actuation | Motor |
| Pressure range | 400 to 450 bar |
| Size (displacement) [cm³] | 63 |
| Series | 70 |
| Port and fastening threads | metric (DIN 3852) |
| Direction of rotation | alternating |
| Sealing material | FKM fluorocarbon rubber |
| Shaft end | Splined shaft W35x2x30x16x9 |
| Mounting flange | ISO3019-2 metric 125-4 |
| Port plate for service lines | SAE A and B lateral |
| Valves | Rinsing and feed v.: 6.0 L/min |
| Sensors | without |
| Special version | Standard version |
| Flushing flow [l/min] | 6.0 |
| Shaft seal ring | Standard |
| For pressure differential (bar) [bar] | 25.0 |
| Cracking pressure of boost pressure valve [bar] | 16 |
| Port A | SAE 3/4 fastening thread M10 |
| Port T1 | M18x1.5 plugged |
| Port T2 | M18x1.5 open |
| Port R | without |
| Port B | SAE 3/4 fastening thread M10 |
| Classification society (external) | Standard (without acceptance) |
| Test certificate | without |
| Test certificate language code | Without |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | without |
| Weight [kg] | 17 |
