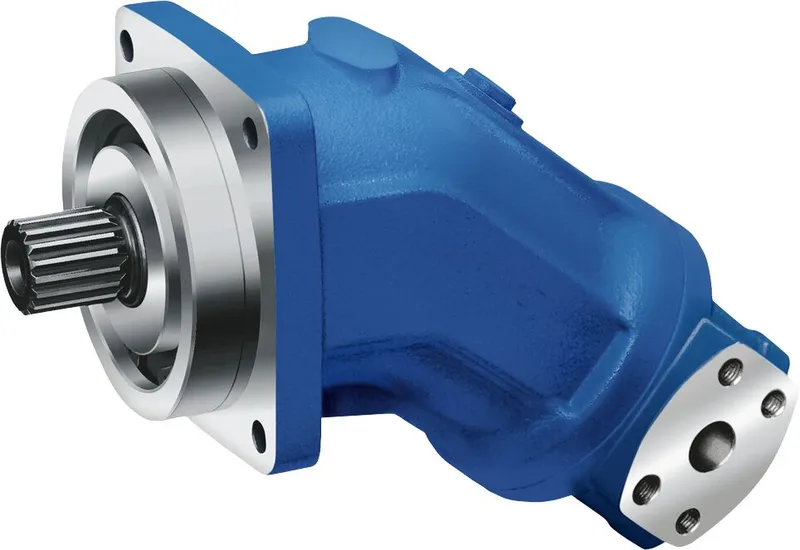

AXIAL-PISTON PUMP A2FO90/61R-VBB05 *GO2EU*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Axial piston fixed pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R902230065 be shipped?
R902230065 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R902230065 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R902230065 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R902230065, subject to availability and destination.
The A2FO is a fixed pump with an axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. Robust pump with long service life Very high total efficiency High power density Large variety of available nominal sizes allows exact adjustment to the application
Specifications
Specifications
| Product family | A2FO |
| Size (displacement) [cm³] | 90 |
| Series | 61 |
| Direction of rotation | clockwise |
| Sealing material | FKM |
| Low temperature version | no |
| Shaft end | B (cyl.shaft w.key.DIN6885) |
| Mounting flange | 4-hole ISO 3019-2 |
| Working ports | 05 (S rear;B(A)lat.SAE met) |
| Rotary group, hydraulic part | Standard |
| Drive shaft bearing | Standard bearing |
| Shaft seal ring | Standard WDR |
| Housing ports | Air bleed port R |
| Housing ports, status | Air bleed port R plugged |
| Port plate | B - Standard |
| Classification society (external) | Standard (without acceptance) |
| Test certificate | without |
| Test certificate language code | Without |
| Paint/base coat | RAL 9005 deep black |
| Paint/top coat | without |
| Weight [kg] | 31 |
