Axial piston fixed pumps Parts
Compare Axial piston fixed pumps
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Size (displacement) [cm³] | Series | Sealing material | Shaft end |
|---|---|---|---|---|---|
| R902230065 | 31 | 90 | 61 | FKM | B (cyl.shaft w.key.DIN6885) |
| R902230063 | 31 | 80 | 61 | FKM | P (cylindrical shaft with key DIN6885) |
| R902230064 | 24 | 80 | 61 | FKM | A (splined shaft DIN 5480) |
| R902230061 | 18.8 | 63 | 61 | FKM | B (cyl.shaft w.key.DIN6885) |

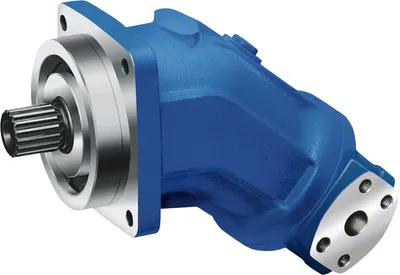

| R902230059 | 18 | 56 | 61 | NBR | P (cylindrical shaft with key DIN6885) |
| R902230060 | 20 | 56 | 61 | FKM | A (splined shaft DIN 5480) |
| R902230058 | 17 | 45 | 61 | FKM | P (cylindrical shaft with key DIN6885) |
| R902230057 | 10.9 | 32 | 61 | FKM | B (cyl.shaft w.key.DIN6885) |
| R902230056 | 11 | 32 | 61 | FKM | A (splined shaft DIN 5480) |
| R902230054 | 11.67 | 28 | 61 | FKM | P (cylindrical shaft with key DIN6885) |
| R902230055 | 11.5 | 28 | 61 | FKM | A (splined shaft DIN 5480) |
| R902230053 | 66.9 | 200 | 63 | FKM | B (cyl.shaft w.key.DIN6885) |
| R902230052 | 45 | 180 | 61 | FKM | B (cyl.shaft w.key.DIN6885) |
| R902230051 | 51 | 160 | 61 | FKM | P (cylindrical shaft with key DIN6885) |
| R902230050 | 8.5 | 16 | 61 | FKM | A (splined shaft DIN 5480) |
| R902230049 | 39 | 125 | 61 | FKM | B (cyl.shaft w.key.DIN6885) |
| R902230048 | 6 | 12 | 61 | FKM | A (splined shaft DIN 5480) |
| R902230047 | 35 | 107 | 61 | NBR | P (cylindrical shaft with key DIN6885) |
Common to all listed parts
| Product family | A2FO |
| Direction of rotation | clockwise |
| Mounting flange | 4-hole ISO 3019-2 |
| Rotary group, hydraulic part | Standard |
| Drive shaft bearing | Standard bearing |
| Shaft seal ring | Standard WDR |
| Housing ports | Air bleed port R |
| Housing ports, status | Air bleed port R plugged |
