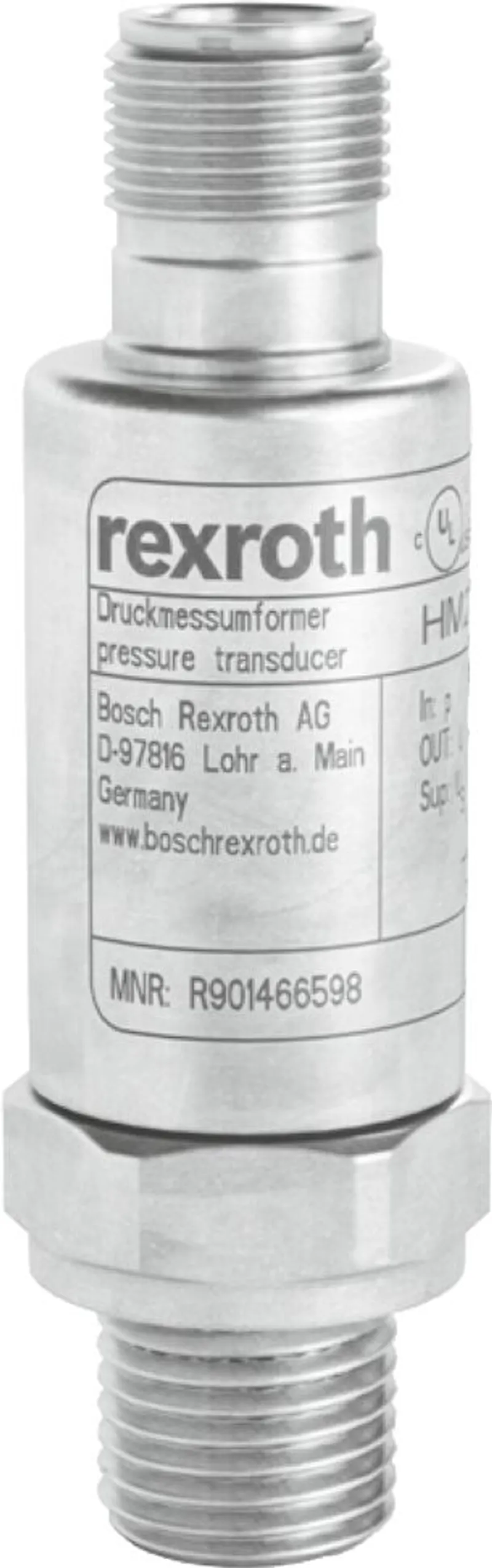

Bosch Rexroth R901466600
PRESSURE TRANSDUCER HM 20-2X/315-H-K35-N
- MPN
- R901466600
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Bosch Rexroth R901466600?
Short signal rise time < 1 ms for dynamic pressure control. All components in contact with the media are made of stainless steel. High degree of measurement accuracy of < 0.5% FS. Excellent overload and bursting behavior.
Thin film measuring cell
Analog output 0.1 … 10 V
Hydraulic connection G1/4
Throttle element in the pressure channel
Connector 4-pole, M12x1, A-coded
Specifications
Specifications
| Connection diagram | Male thread G1/4 |
| Product family | HM20 |
| Operating pressure, max. [bar] | 315.0 |
| Output signal | 0.1…10 V |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 4-pole, M12 x 1, coding A |
| Display | No |
| Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU; CE – RoHS Directive 2011/65/EU; UKCA – Electromagnetic compatibility (EMC) SI2016/1091; UKCA – RoHS Directive SI2012/3032 |
| Conformity | CE; RoHS; UKCA |
| Hydraulic fluid | HFC; HL; HLP; Nitrogen (up to 300 bar) |
| Seals | NBR |
| Weight [kg] | 0.07 |
