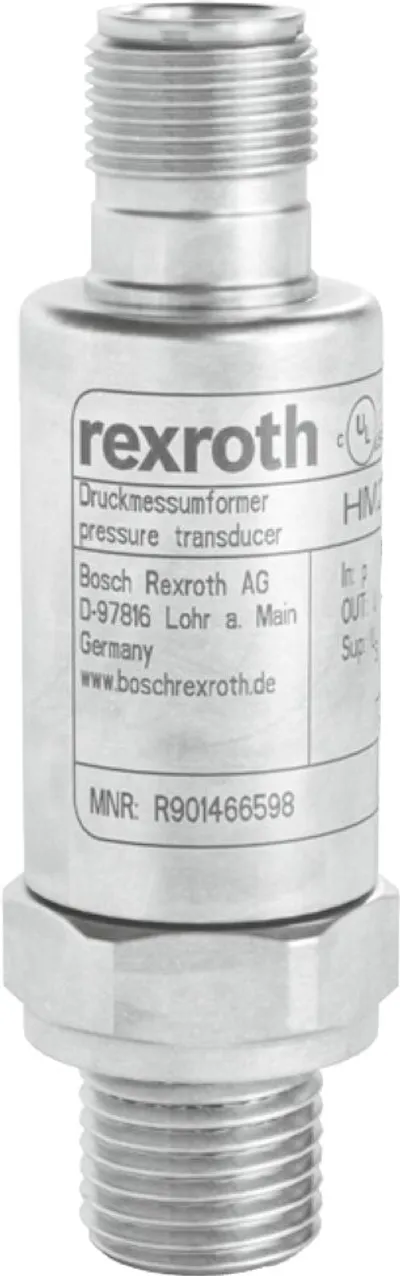

Power unit accessories, pressure sensors Parts
Compare Power unit accessories, pressure sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Operating pressure, max. [bar] | Output signal |
|---|---|---|
| R901342035 | 630.0 | 4…20 mA |
| R901466598 | 400.0 | 0.1…10 V |
| R901456334 | 400.0 | 4…20 mA |
| R901466600 | 315.0 | 0.1…10 V |
| R901456333 | 250.0 | 0.1…10 V |
| R901466597 | 250.0 | 4…20 mA |
| R901381345 | 160.0 | 4…20 mA |
| R901342025 | 100.0 | 0.1…10 V |
| R901342024 | 100.0 | 4…20 mA |
| R901342022 | 50.0 | 4…20 mA |
| R901364927 | 10.0 | 4…20 mA |
Common to all listed parts
| Connection diagram | Male thread G1/4 |
| Product family | HM20 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 4-pole, M12 x 1, coding A |
| Display | No |
| Electrical connection description | Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101 |
| Conformity | CE; RoHS; UKCA |
| Hydraulic fluid | HFC; HL; HLP; Nitrogen (up to 300 bar) |
