DOUBLE CAM BEARING LWA-032-SNS-FN-E-0

Name: DOUBLE CAM BEARING LWA-032-SNS-FN-E-0
Brand: Bosch Rexroth
SKU: R190413210

MPN: R190413210 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Bearings with adjusting screws
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R190413210 be shipped?

R190413210 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R190413210 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R190413210 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R190413210, subject to availability and destination.

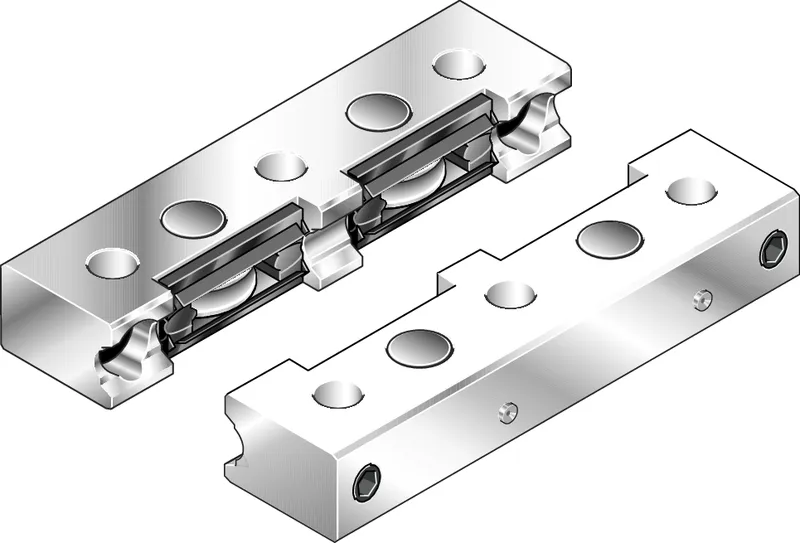

The cam roller double bearing is characterized by the following product features: Size 32 Format SNS: Width = slimline, length = normal, height = standard Runner block body made of aluminum Standard load carrying capacity Accuracy class E: Economic Without preservation Without initial lubrication Without attachment element, left (front reference edge) Without attachment element, right (front reference edge) Lube nipple integrated Standard version Overall length of the runner block = 129 Interchangeable element Distance of the runner blocks on the table construction is freely selectable Zero-clearance adjustment using socket hex screws on the rear side of the runner blocks. Tough all-round sealing with excellent wiping action. Grease lubrication recommended. On two half-rails

Specifications

Version	Cam roller guide
Nominal size [mm]	32
Width of runner block [mm]	31.0
Length of runner block [mm]	129.0
Height of runner block [mm]	20.5
Height runner block with guide rail [mm]	26.0
Maximum acceleration rate amax [m/s²]	50.0
Maximum permissible linear speed vmax [m/s]	10.0
Note: maximum permissible speed vmax	For average load.
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]	0,42 · a
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]	21
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]	25
Maximum dynamic load in y-direction Fy max [N]	1000
Operating temperature (min. … max.)	-20 °C ... +80 °C
Maximum static load due to a resulting force in the y-direction F0y max [N]	1000
Weight [kg]	0.23
Maximum operating temperature [°C]	+80
Maximum dynamic load in z-direction Fz max [N]	850
Minimum operating temperature [°C]	-20

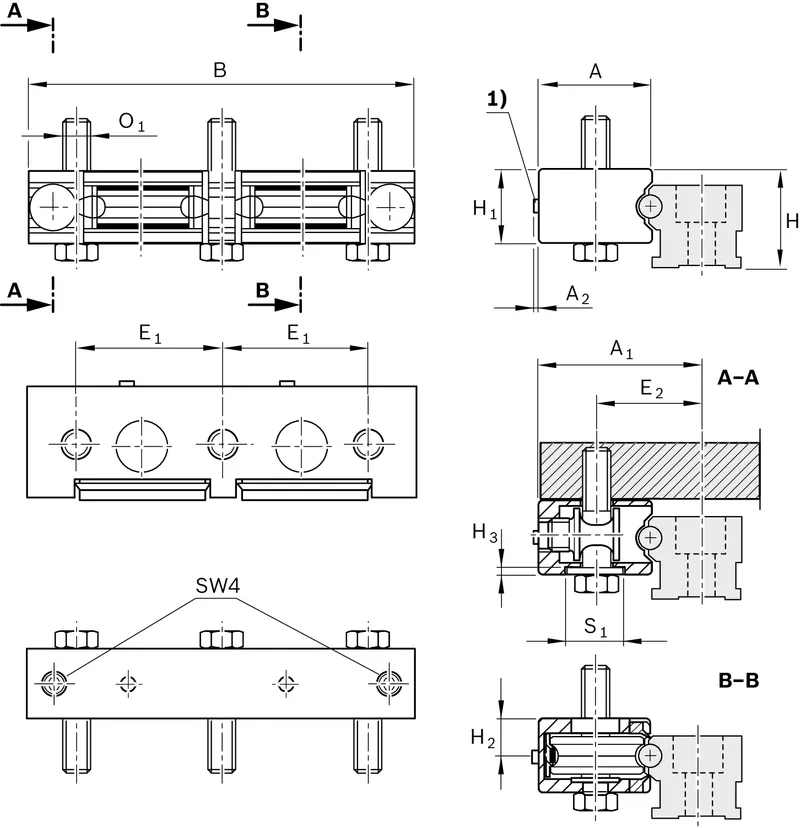

Dimension A (profiled rail systems) [mm]	31
Dimension A1 (profiled rail systems) [mm]	43
Dimension A2 (profiled rail systems) [mm]	2
Dimension B (profiled rail systems) [mm]	129
Dimension E1 [mm]	48
Dimension E2 (profiled rail systems) [mm]	27
Dimension H [mm]	26.0
Dimension H1 (profiled rail systems) [mm]	20.5
Dimension H2 (profiled rail systems) [mm]	11
Dimension H3 [mm]	2.5
Dimension O1 thread diameter	M8
Dimension S1 (profiled rail systems) [mm]	18
Dimension O1 thread diameter footnote	Fastening screws are not included. For screws ISO 4014 8.8, a washer according to ISO 7089 is required.
