BALL SCREW 50X5RX3,5 (T9)

Name: BALL SCREW 50X5RX3,5 (T9)
Brand: Bosch Rexroth
SKU: R151151900

MPN: R151151900 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Precision screws
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R151151900 be shipped?

R151151900 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R151151900 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R151151900 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R151151900, subject to availability and destination.

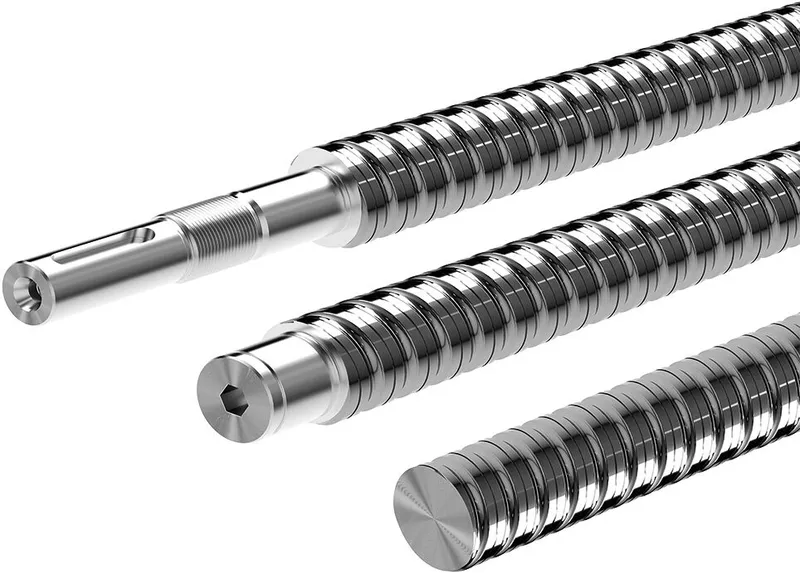

Precision screw<br>Nominal diameter d0 = 50<br>Lead P = 5 (right)<br>Ball diameter Dw = 3.5<br>Tolerance grade T9 (0.130/300 mm)

Specifications

Nominal size [mm]	50 x 5R x 3,5
Max. length Lmax [mm]	4500.0
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Mass m (kg/m) [kg/m]	14.05
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Weight [kg]	0
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15
Dimension d1 [mm]	49
Dimension d2 [mm]	46.4
