Precision screws Parts
Compare Precision screws
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Max. length Lmax [mm] | Mass m (kg/m) [kg/m] | Dimension d1 [mm] | Dimension d2 [mm] |
|---|---|---|---|---|---|
| R153126900 | 8 x 5R x 1,588 | 1500.0 | 0.3 | 7.5 | 6.3 |
| R153126700 | 8 x 5R x 1,588 | 1500.0 | 0.3 | 7.5 | 6.3 |
| R153126500 | 8 x 5R x 1,588 | 1500.0 | 0.3 | 7.5 | 6.3 |
| R153123900 | 8 x 2,5R x 1,588 | 1500.0 | 0.3 | 7.5 | 6.3 |
| R153123700 | 8 x 2,5R x 1,588 | 1500.0 | 0.3 | 7.5 | 6.3 |
| R153123500 | 8 x 2,5R x 1,588 | 1500.0 | 0.3 | 7.5 | 6.3 |
| R151174900 | 80 x 10R x 6,5 | 4500.0 | 35.58 | 78 | 73.3 |
| R151174700 | 80 x 10R x 6,5 | 4500.0 | 35.58 | 78 | 73.3 |
| R151174500 | 80 x 10R x 6,5 | 4500.0 | 35.58 | 78 | 73.3 |
| R151169910 | 63 x 40R x 6,5 | 4500.0 | 21.4 | 61 | 56.3 |
| R151169710 | 63 x 40R x 6,5 | 4500.0 | 21.4 | 61 | 56.3 |
| R151169510 | 63 x 40R x 6,5 | 4500.0 | 21.4 | 61 | 56.3 |
| R151167910 | 63 x 20R x 6,5 | 4500.0 | 21.42 | 61 | 56.3 |
| R151167710 | 63 x 20R x 6,5 | 4500.0 | 21.42 | 61 | 56.3 |
| R151167510 | 63 x 20R x 6,5 | 4500.0 | 21.42 | 61 | 56.3 |

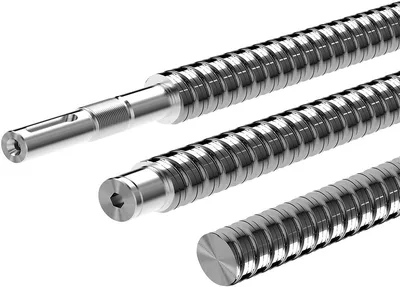

| R151164900 | 63 x 10R x 6 | 4500.0 | 21.72 | 61 | 56.8 |
| R151164700 | 63 x 10R x 6 | 4500.0 | 21.72 | 61 | 56.8 |
| R151164500 | 63 x 10R x 6 | 4500.0 | 21.72 | 61 | 56.8 |
| R151151900 | 50 x 5R x 3,5 | 4500.0 | 14.05 | 49 | 46.4 |
| R151151700 | 50 x 5R x 3,5 | 4500.0 | 14.05 | 49 | 46.4 |
| R151151500 | 50 x 5R x 3,5 | 4500.0 | 14.05 | 49 | 46.4 |
| R151159910 | 50 x 40R x 6,5 | 4500.0 | 12.98 | 48 | 43.3 |
| R151159710 | 50 x 40R x 6,5 | 4500.0 | 12.98 | 48 | 43.3 |
| R151159510 | 50 x 40R x 6,5 | 4500.0 | 12.98 | 48 | 43.3 |
Common to all listed parts
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Direction of lead | Right |
| Weight [kg] | 0 |
| Maximum operating temperature [°C] | +80 |
| Bearing temperature max [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Bearing temperature min [°C] | -15 |
