TORQUE RESISTANT BUSHING KBDR4-H-13DD
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Linear bushings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R072421300 be shipped?
R072421300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R072421300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R072421300 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R072421300, subject to availability and destination.

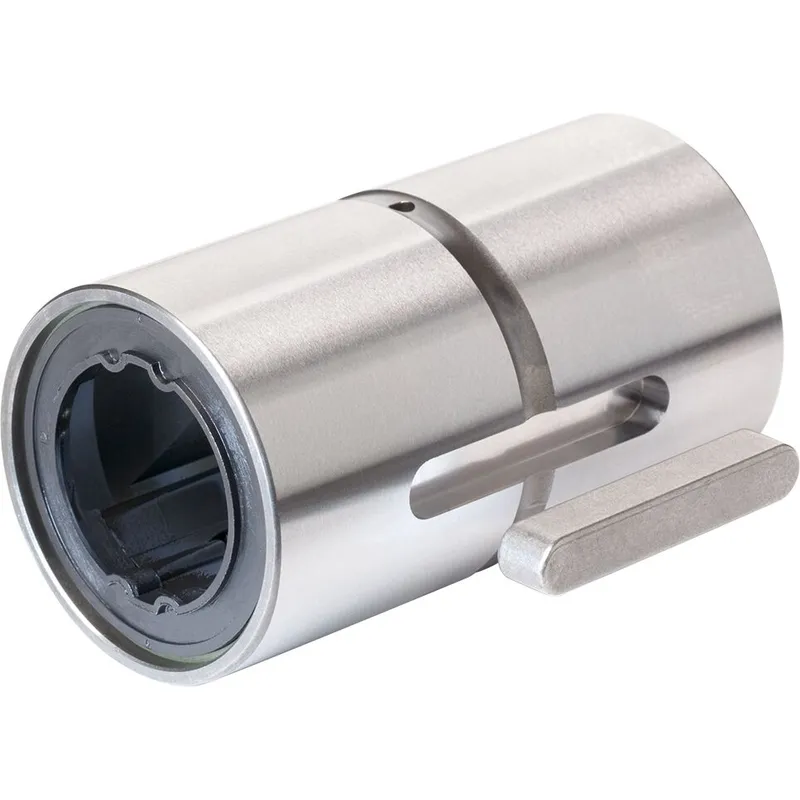

Torque-resistant linear bushing (cylindrical, sleeve design)<br>Ball guide grooves = 4<br>Shaft diameter d = 13<br>With two seals<br>Without shaft For self-supporting, torsionally stiff guides with only one shaft With four ball guide grooves for transferring torque Matching shaft profiles with machined ball guide grooves Shafts machined to customer specification Integrated wiper seals Hardened and ground outer sleeve POM ball retainer Balls made of rolling bearing steel Fitting key for torque transmission Relubricatable
Specifications
Specifications
| Shaft diameter d [mm] | 13.0 |
| Version | Standard |
| Format of linear bushings | H - Sleeve design |
| Series | Torque |
| Type | Linear bushing |
| Seal | 2 integrated wiper seals |
| Raceway grooves | 4 |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 2120.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 16.7 |
| Length of linear bushing [mm] | 36.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0.07 |
| Footnote diameter d | Actual shaft diameter varies |
| Static load capacity C0 [N] | 4890.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Static torsional moment load capacity Mt0 [Nm] | 39.2 |
| Shaft diameter, detailed [mm] | 13 |

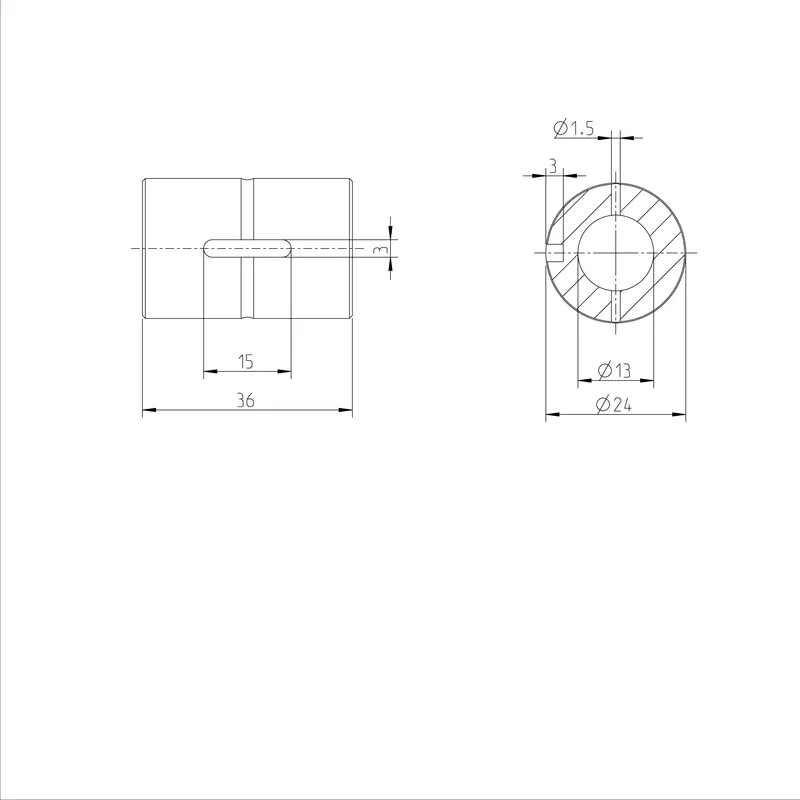

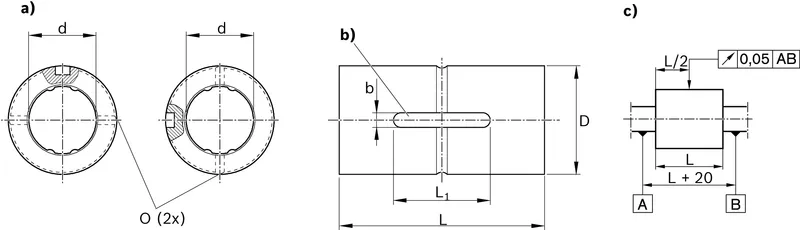

| Dimension b [mm] | 3 |
| Dimension D [mm] | 24 |
| Dimension D h6 [mm] | 24 |
| Dimension L [mm] | 36 |
| Dimension L tolerance [mm] | -0.2 |
| Dimension L1 [mm] | 15 |
| Dimension t [mm] | 1.5 |
| Dimension t1 [mm] | 3 |
