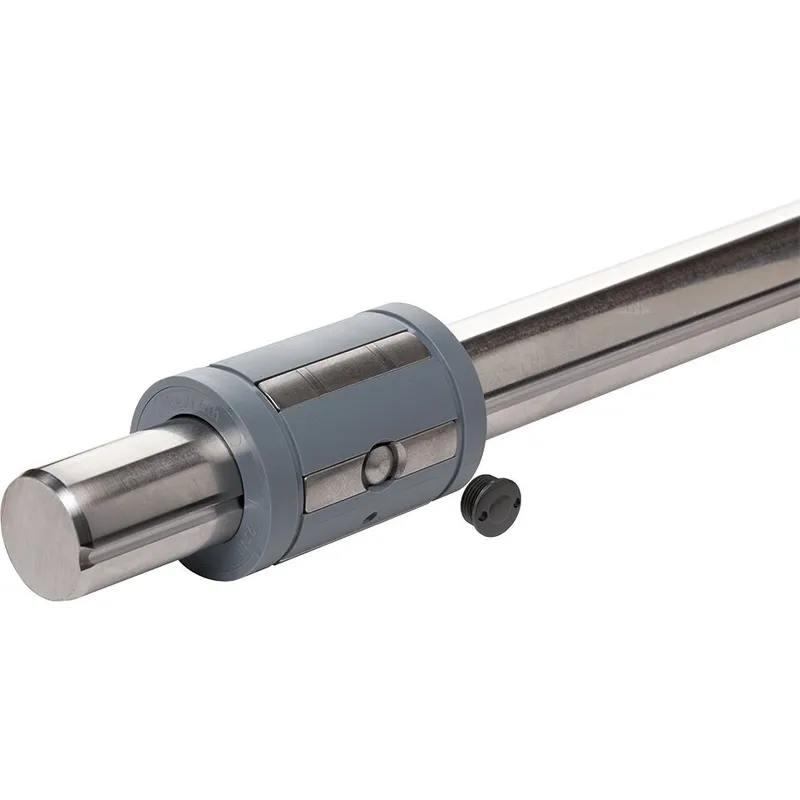

Bosch Rexroth R072035069
TORQUE RESISTANT BUSHING KBDRC2-50-WO-K
- MPN
- R072035069
- Category
- Linear bushings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Bosch Rexroth R072035069?
Torque-resistant compact linear bushing (standard)
Ball guide grooves = 2
Shaft diameter d = 50
Without seal
With tubular shaft
L = shaft length to specification (cut)
For self-supporting, torsionally stiff guides with only one shaft
Torque-resistant linear bushings with adjusting screw come set to zero clearance
Matching shaft profiles with machined ball guide grooves
Precision steel shaft with a ball guide groove for shaft diameters 12 and 16 mm, with two ball guide grooves from shaft diameter 20 mm
Hardened steel bearing plates
Balls made of rolling bearing steel
Hardened steel adjusting screw
Steel lock nut
Ball retainer and outer sleeve made of PA or POM
Specifications
Specifications
| Shaft diameter d [mm] | 50.0 |
| Version | Standard |
| Format of linear bushings | – Closed |
| Series | Torque-resistant compact |
| Type | Linear bushing |
| Seal | Without wiper seals |
| Raceway grooves | 2 |
| Dynamic load capacity C [N] | 9250.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 167.0 |
| Length of linear bushing [mm] | 100.0 |
| Outer diameter D [mm] | 75.0 |
| Mass m (kg/m) [kg/m] | 15.3 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Static load capacity C0 [N] | 6470.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |

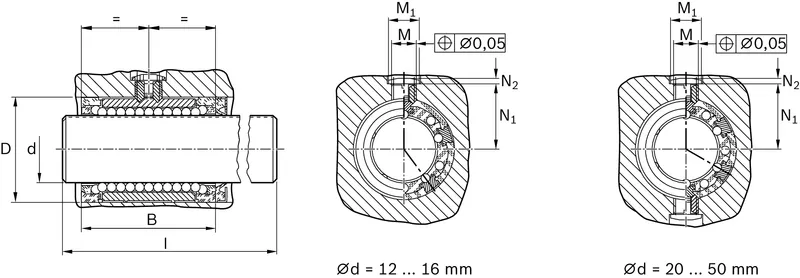

| Dimension B (profiled rail systems) [mm] | 100 |
| Dimension D [mm] | 75 |
| Dimension M1 [mm] | 20 |
| Dimension N1 (profiled rail systems) [mm] | 46.7 |
| Dimension N2 (profiled rail systems) [mm] | 3 |
