TORQUE RESISTANT BUSHING KBDRC1-16-WV-900

Name: TORQUE RESISTANT BUSHING KBDRC1-16-WV-900
Brand: Bosch Rexroth
SKU: R072001685

MPN: R072001685 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R072001685 be shipped?

R072001685 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R072001685 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R072001685 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R072001685, subject to availability and destination.

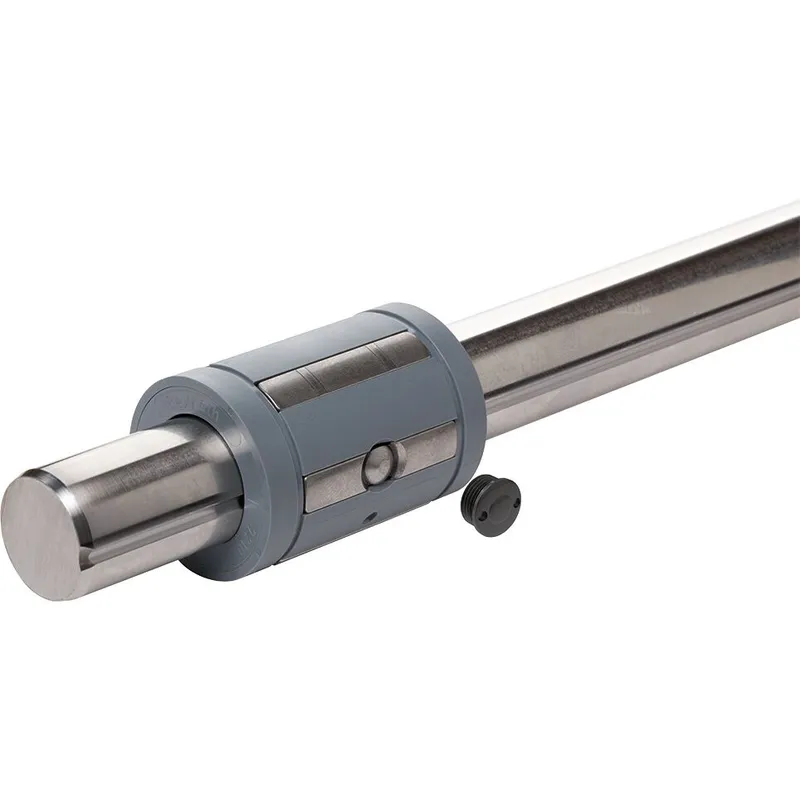

Torque-resistant compact linear bushing (standard) Ball guide grooves = 1 Shaft diameter d = 16 Without seal Shaft included 900 = standard length as per table For self-supporting, torsionally stiff guides with only one shaft Torque-resistant linear bushings with adjusting screw come set to zero clearance Matching shaft profiles with machined ball guide grooves Precision steel shaft with a ball guide groove for shaft diameters 12 and 16 mm, with two ball guide grooves from shaft diameter 20 mm Hardened steel bearing plates Balls made of rolling bearing steel Hardened steel adjusting screw Steel lock nut Ball retainer and outer sleeve made of PA or POM

Specifications

Shaft diameter d [mm]	16.0
Version	Standard
Format of linear bushings	– Closed
Series	Torque-resistant compact
Type	Linear bushing
Seal	Without wiper seals
Raceway grooves	1
Dynamic load capacity C [N]	780.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	3.3
Length of linear bushing [mm]	36.0
Outer diameter D [mm]	26.0
Mass m (kg/m) [kg/m]	1.57
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	1.5
Static load capacity C0 [N]	530.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

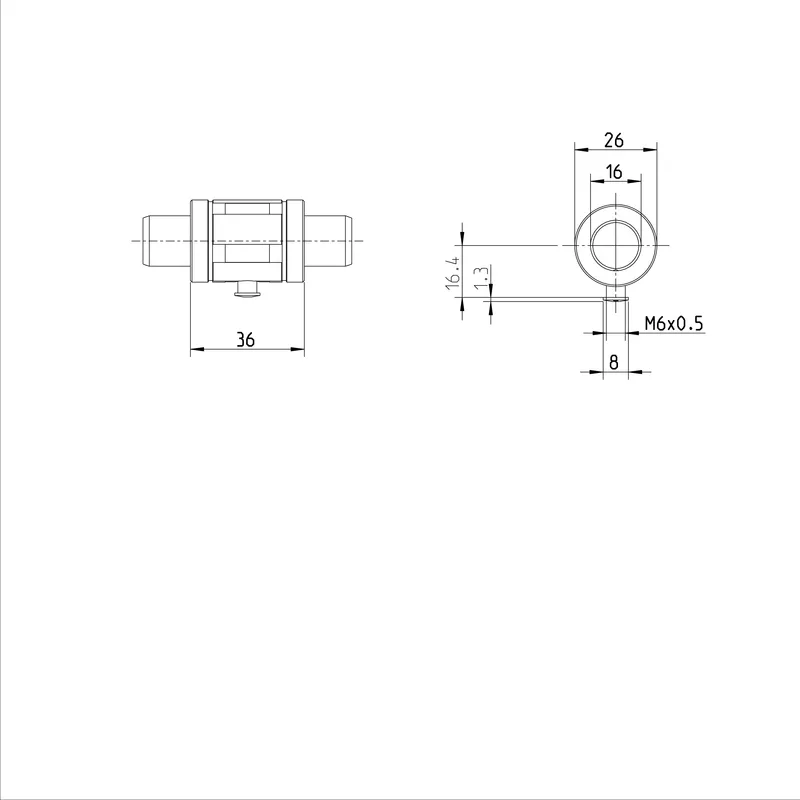

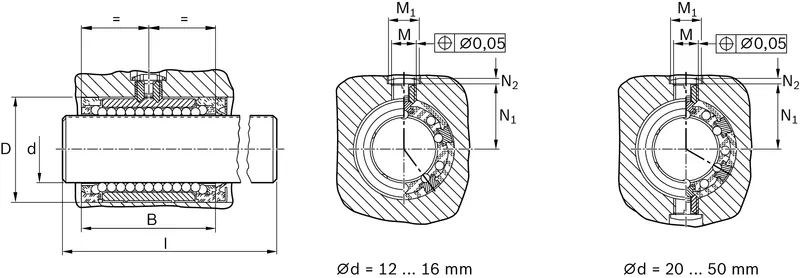

Dimension B (profiled rail systems) [mm]	36
Dimension D [mm]	26
Dimension M1 [mm]	8
Dimension N1 (profiled rail systems) [mm]	16.4
Dimension N2 (profiled rail systems) [mm]	1.3
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	400
