TORQUE RESISTANT BUSHING KBDR1-40-SPECIAL

Name: TORQUE RESISTANT BUSHING KBDR1-40-SPECIAL
Brand: Bosch Rexroth
SKU: R069604086

MPN: R069604086 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linear bushings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R069604086 be shipped?

R069604086 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R069604086 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R069604086 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R069604086, subject to availability and destination.

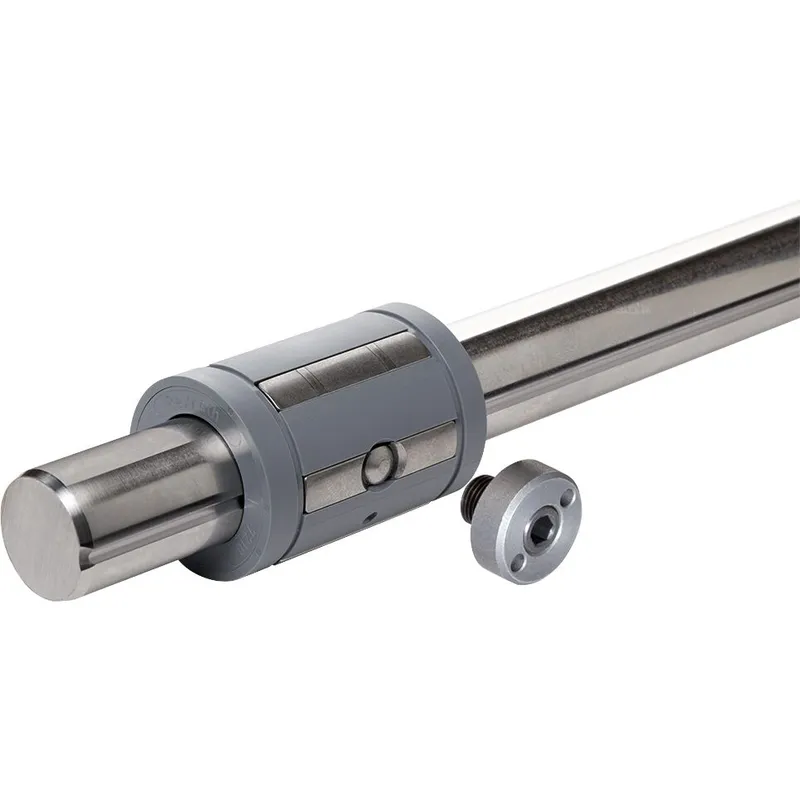

Torque-resistant linear bushing (standard) Ball guide grooves = 1 Shaft diameter d = 40 Without seal Without shaft SPECIAL = shaft length processing in acc. with drawing For self-supporting, torsionally stiff guides with only one shaft Torque-resistant linear bushings with adjusting screw come set to zero clearance Shafts machined to customer specification Precision steel shaft with one ball guide groove for transferring torques Ball retainer and outer sleeve made of PA or POM Hardened steel bearing plates Balls made of rolling bearing steel Hardened steel adjusting screw Steel lock nut

Specifications

Shaft diameter d [mm]	40.0
Version	Standard
Format of linear bushings	– Closed
Series	Torque
Type	Linear bushing
Seal	Without wiper seals
Raceway grooves	1
Dynamic load capacity C [N]	6320.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	53.0
Length of linear bushing [mm]	80.0
Outer diameter D [mm]	62.0
Mass m (kg/m) [kg/m]	9.8
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
Static load capacity C0 [N]	4350.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

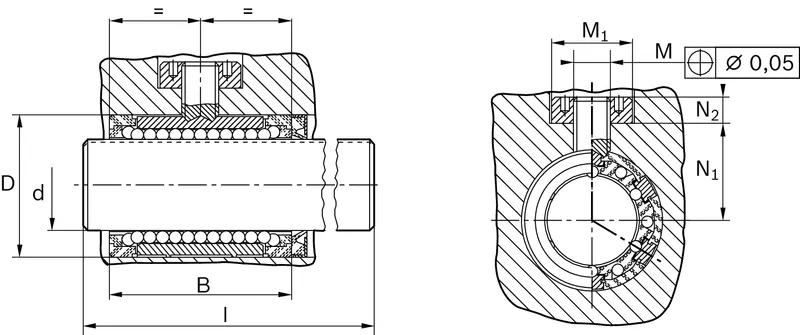

Dimension B (profiled rail systems) [mm]	80
Dimension D [mm]	62
Dimension M1 [mm]	26
Dimension N1 (profiled rail systems) [mm]	44
Dimension N2 (profiled rail systems) [mm]	9.5
Standard length l of the shaft [mm]	600
