Bosch Rexroth R02681H020

MODULE SMS-080-P10-1000

MPN
R02681H020
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R02681H020?

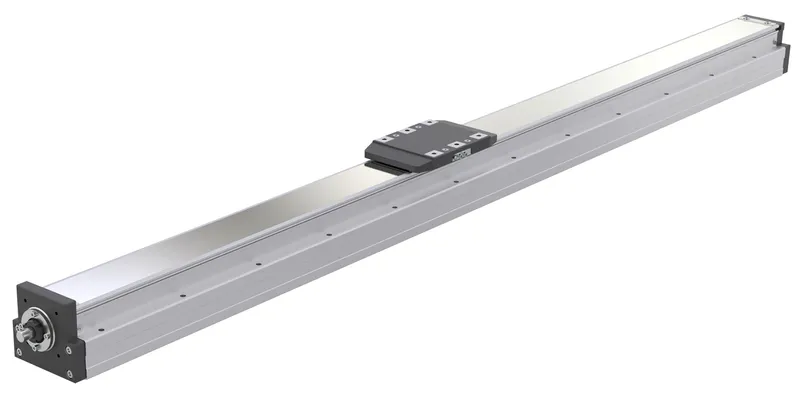

The ultra-compact SMS module with threaded screw drive enables highly efficient handling of fixings and is particularly suitable for simple positioning and delivery tasks. The SMS module is also ideal for electrification in cost-sensitive areas or for substitution of pneumatic modules. A large selection of preconfigured variants in commercially available modular lengths can be selected online via a few parameters and are quickly available from stock. Suitable motor attachments, for example, with flange coupling or belt side drive for servo motors or stepping motors, are also optionally available as separate accessories. Furthermore, multi-axis systems can be built from the SMS modules using the connection plate and angle bracket accessories.

Specifications

Specifications

Nominal size d0 x P [mm]16 x 10
Nominal size [mm]SMS-080
Maximum payload vertical [kg]21.0
Maximum payload horizontal [kg]88.0
Maximum payload - wall mounting [kg]88.0
Repeatability [mm]±0.005
Module width [mm]82.0
Module height [mm]78.0
Maximum stroke [mm]1000.0
Maximum acceleration rate amax [m/s²]3.0
Maximum permissible linear speed vmax [m/s]0.26
Permissible overhang A at maximum payload horizontal [mm]115
Permissible overhang B at maximum payload horizontal [mm]19
Permissible overhang C at maximum payload horizontal [mm]27
Note: overhang (horizontal installation)Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for horizontal installation can be found in catalog R99…
Permissible overhang A at maximum payload vertical [mm]133
Permissible overhang C at maximum payload vertical [mm]133
Note: overhang (vertical installation)Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for vertical installation can be found in catalog R99…
Permissible overhang A at maximum payload - wall mounting [mm]27
Permissible overhang B at maximum payload - wall mounting [mm]19
Permissible overhang C at maximum payload - wall mounting [mm]115
Note: overhang (wall mounting)Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for wall assembly can be found in catalog R99…
Maximum drive torque [Nm]2.2
Overall length Ltot [mm]1218
Weight [kg]9.85
