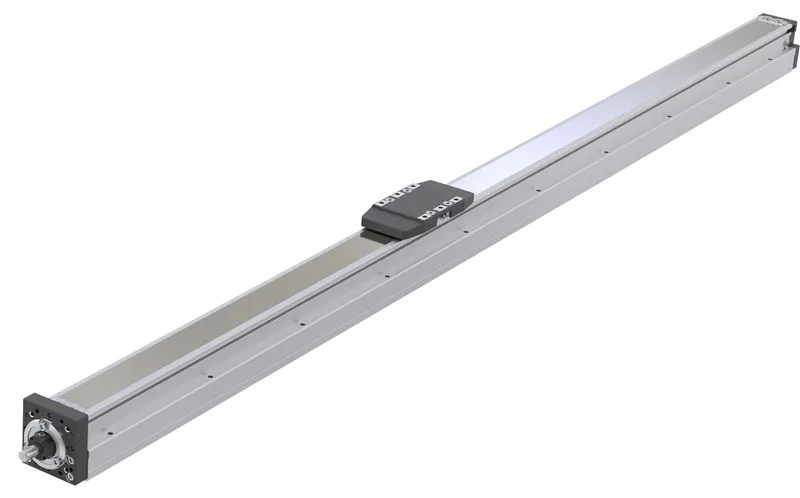

MODULE SMS-040-P12-100

Name: MODULE SMS-040-P12-100
Brand: Bosch Rexroth
SKU: R02681D002

MPN: R02681D002 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Small modules SMS
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R02681D002 be shipped?

R02681D002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R02681D002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R02681D002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R02681D002, subject to availability and destination.

The ultra-compact SMS module with threaded screw drive enables highly efficient handling of fixings and is particularly suitable for simple positioning and delivery tasks. The SMS module is also ideal for electrification in cost-sensitive areas or for substitution of pneumatic modules. A large selection of preconfigured variants in commercially available modular lengths can be selected online via a few parameters and are quickly available from stock. Suitable motor attachments, for example, with flange coupling or belt side drive for servo motors or stepping motors, are also optionally available as separate accessories. Furthermore, multi-axis systems can be built from the SMS modules using the connection plate and angle bracket accessories.

Specifications

Nominal size d0 x P [mm]	10 x 12
Nominal size [mm]	SMS-040
Maximum payload vertical [kg]	3.5
Maximum payload horizontal [kg]	20.0
Maximum payload - wall mounting [kg]	20.0
Repeatability [mm]	±0.005
Module width [mm]	44.0
Module height [mm]	52.0
Maximum stroke [mm]	100.0
Maximum acceleration rate amax [m/s²]	3.6
Maximum permissible linear speed vmax [m/s]	0.72
Permissible overhang A at maximum payload horizontal [mm]	87
Permissible overhang B at maximum payload horizontal [mm]	18
Permissible overhang C at maximum payload horizontal [mm]	23
Note: overhang (horizontal installation)	Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for horizontal installation can be found in catalog R99…
Permissible overhang A at maximum payload vertical [mm]	144
Permissible overhang C at maximum payload vertical [mm]	144
Note: overhang (vertical installation)	Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for vertical installation can be found in catalog R99…
Permissible overhang A at maximum payload - wall mounting [mm]	23
Permissible overhang B at maximum payload - wall mounting [mm]	18
Permissible overhang C at maximum payload - wall mounting [mm]	87
Note: overhang (wall mounting)	Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for wall assembly can be found in catalog R99…
Maximum drive torque [Nm]	1.1
Overall length Ltot [mm]	261
Weight [kg]	1
