WORKPIECE PALLET WT 2/LS 320X400

Name: WORKPIECE PALLET WT 2/LS 320X400
Brand: Bosch Rexroth
SKU: 3842562355

MPN: 3842562355 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Workpiece pallet WT 2/LS
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842562355 be shipped?

3842562355 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842562355 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842562355 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842562355, subject to availability and destination.

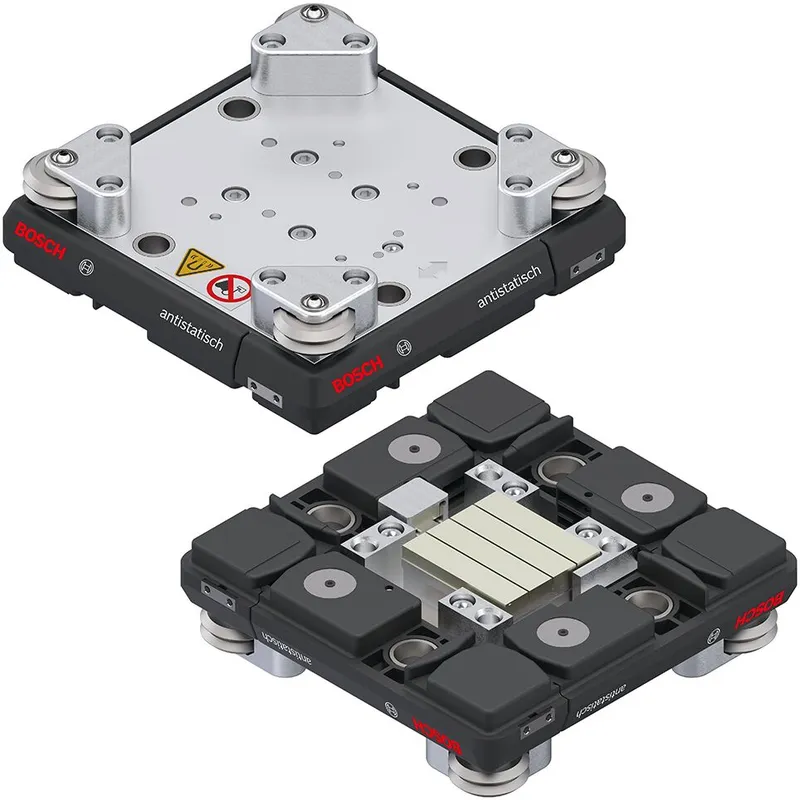

Workpiece pallet WT 2/LS 320x400 Suitable for belt, toothed belt and flat top chain Plastic frame modules with PA wear pad and aluminum carrying plate Suitable for use in an EPA Integrated roller carrier with guide rollers Integrated feed magnet with magnetic protection plate Integrated measuring magnet Magnet stop protection

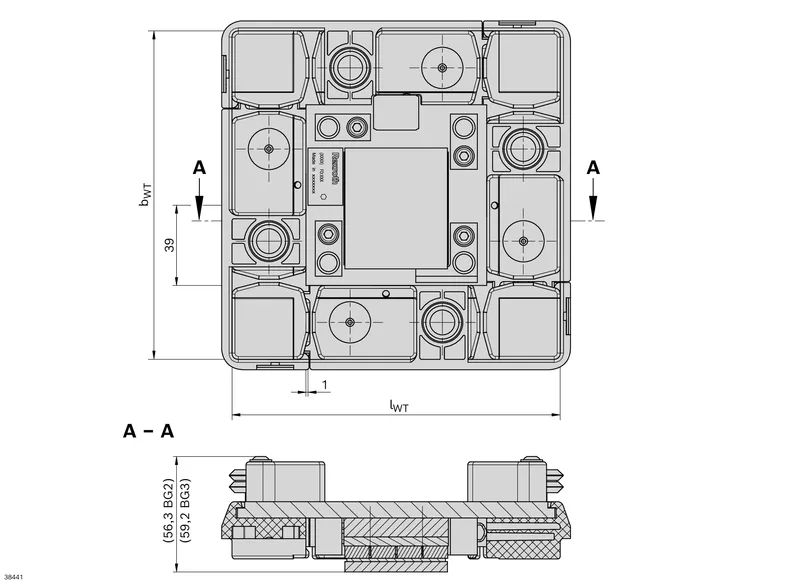

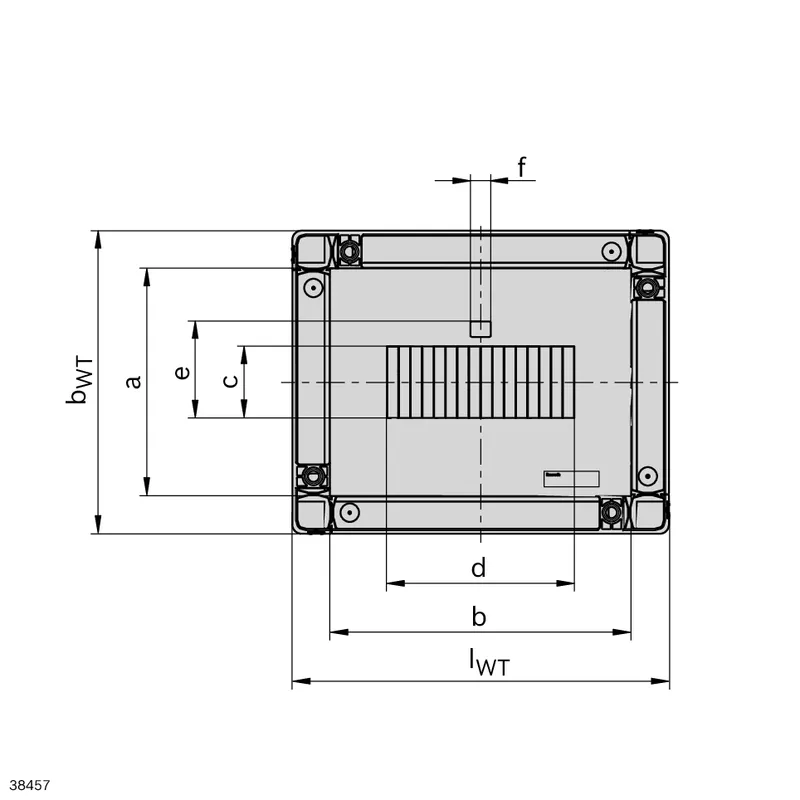

Specifications

Dimension h [mm]	154.45
Dimension [a] [mm]	9.3
Dimension [b] [mm]	328
Length [l] [mm]	204
Force F [N]	56.0
Dimension b [mm]	29.01
Workpiece pallet length [lWT] [mm]	400
Weight workpiece pallet [mWT] [kg]	6.17
Magnetic rows	1
Weight (transported material) [kg]	30
Scope of delivery	Carrying plates; Connection elements; Feed magnet with magnetic protection plate; Frame modules; Magnet stop protection; Measuring magnet; Positioning bushings; Roller carrier with guide rollers
Delivery information	Assembled, individually packed with magnetic cover
Notice	Nominal force refers to room temperature.; The process force Fz can be increased by using the maximum possible load as a process force.
Process force Fx [N]	0
Process force Fy [N]	500
Process force Fz	Fz = 100 N + Maximale Zuladung - Aktuelle Zuladung
Workpiece pallet width [bWT] [mm]	320
Weight [kg]	5.94
