WORKPIECE PALLET WT 2/LS 320X240
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Workpiece pallet WT 2/LS |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842562353 be shipped?
3842562353 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842562353 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842562353 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842562353, subject to availability and destination.

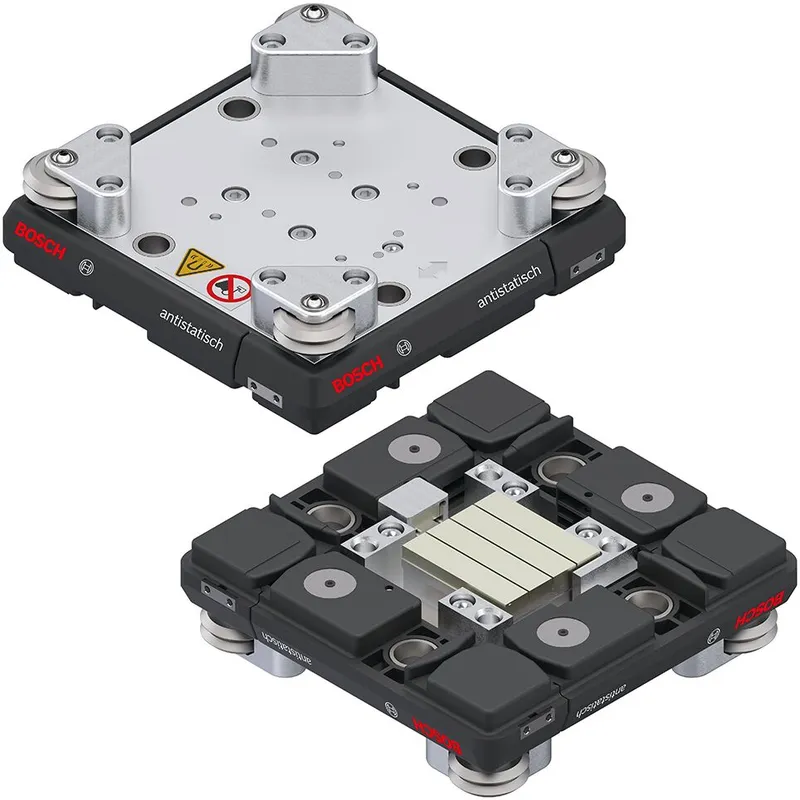

Workpiece pallet WT 2/LS 320x240 Suitable for belt, toothed belt and flat top chain Plastic frame modules with PA wear pad and aluminum carrying plate Suitable for use in an EPA Integrated roller carrier with guide rollers Integrated feed magnet with magnetic protection plate Integrated measuring magnet Magnet stop protection

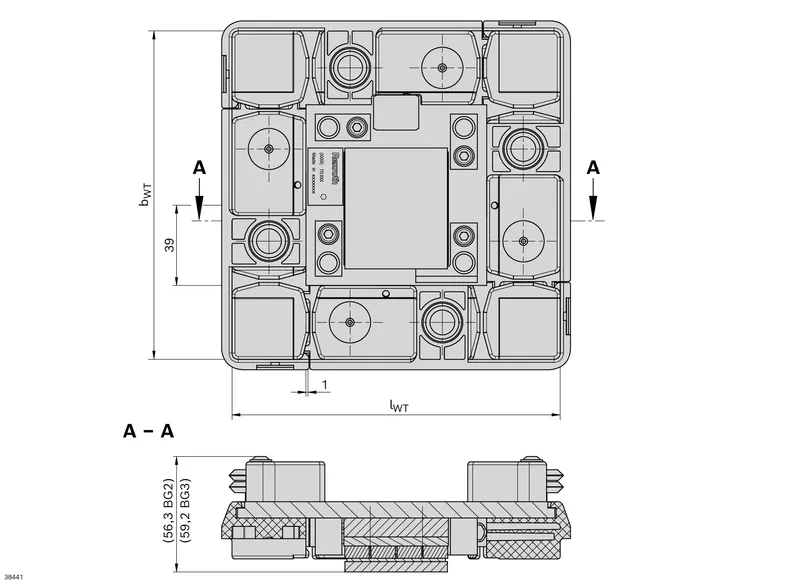

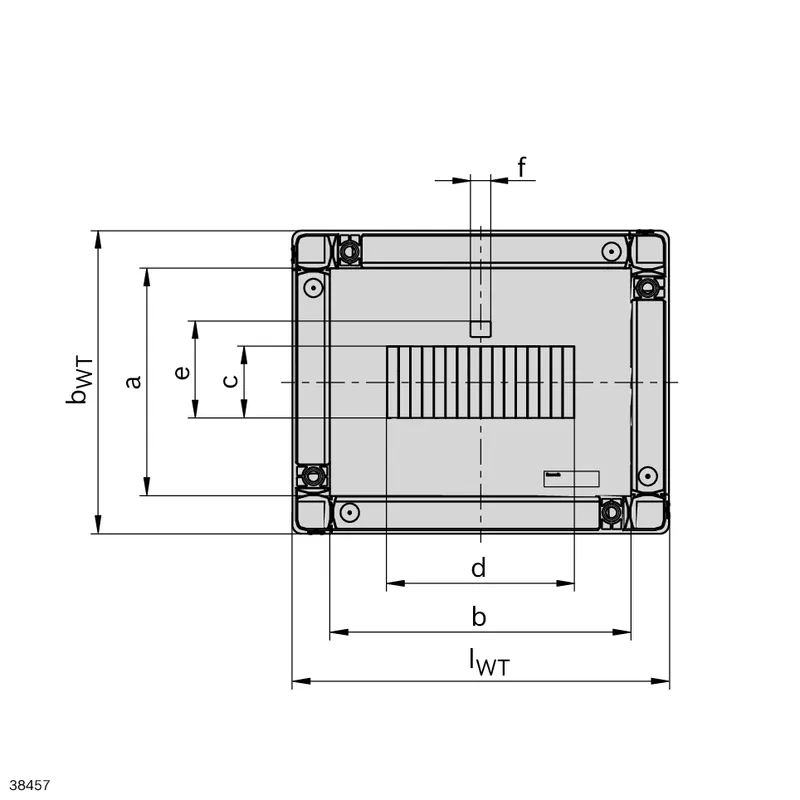

Specifications
Specifications
| Dimension h [mm] | 162 |
| Dimension [a] [mm] | 1.1 |
| Dimension [b] [mm] | 168 |
| Length [l] [mm] | 102 |
| Force F [N] | 28.0 |
| Dimension b [mm] | 23.1 |
| Workpiece pallet length [lWT] [mm] | 240 |
| Weight workpiece pallet [mWT] [kg] | 3.44 |
| Magnetic rows | 1 |
| Number [kkØ6] | 2x |
| Number [M5] | 2x |
| Weight (transported material) [kg] | 20 |
| Scope of delivery | Carrying plates; Connection elements; Feed magnet with magnetic protection plate; Frame modules; Magnet stop protection; Measuring magnet; Positioning bushings; Roller carrier with guide rollers |
| Delivery information | Assembled, individually packed with magnetic cover |
| Notice | Nominal force refers to room temperature.; The process force Fz can be increased by using the maximum possible load as a process force. |
| Process force Fx [N] | 0 |
| Process force Fy [N] | 500 |
| Process force Fz | Fz = 100 N + Maximale Zuladung - Aktuelle Zuladung |
| Workpiece pallet width [bWT] [mm] | 320 |
| Weight [kg] | 3.33 |
