CURVE 160+ VERT STS 5°R500

Name: CURVE 160+ VERT STS 5°R500
Brand: Bosch Rexroth
SKU: 3842547147

MPN: 3842547147 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Curves STS
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842547147 be shipped?

3842547147 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842547147 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842547147 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547147, subject to availability and destination.

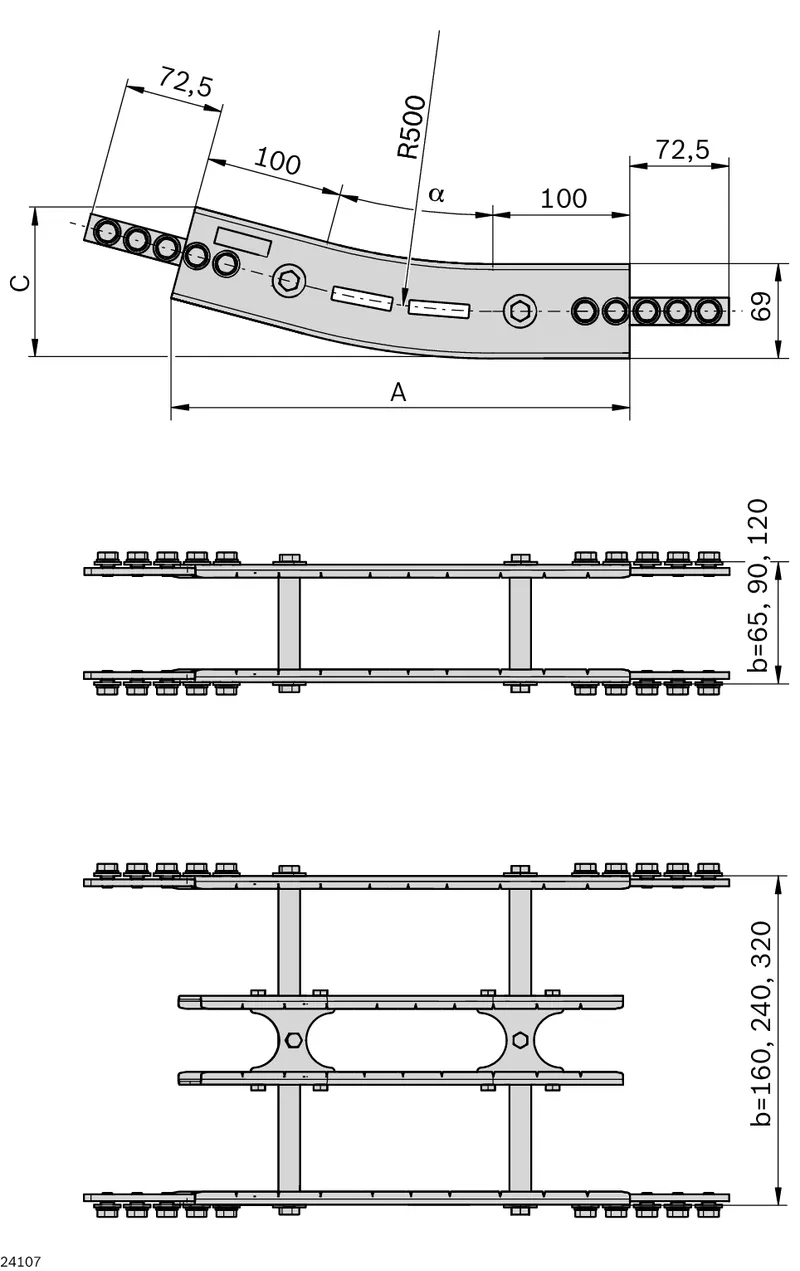

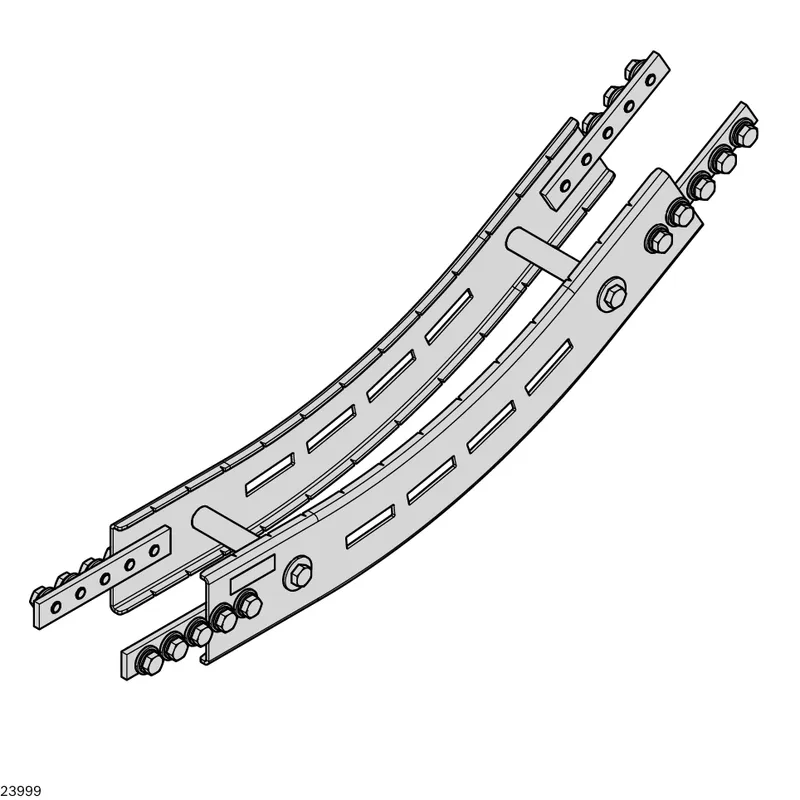

Vertical curve STS VFplus 160 5°

Specifications

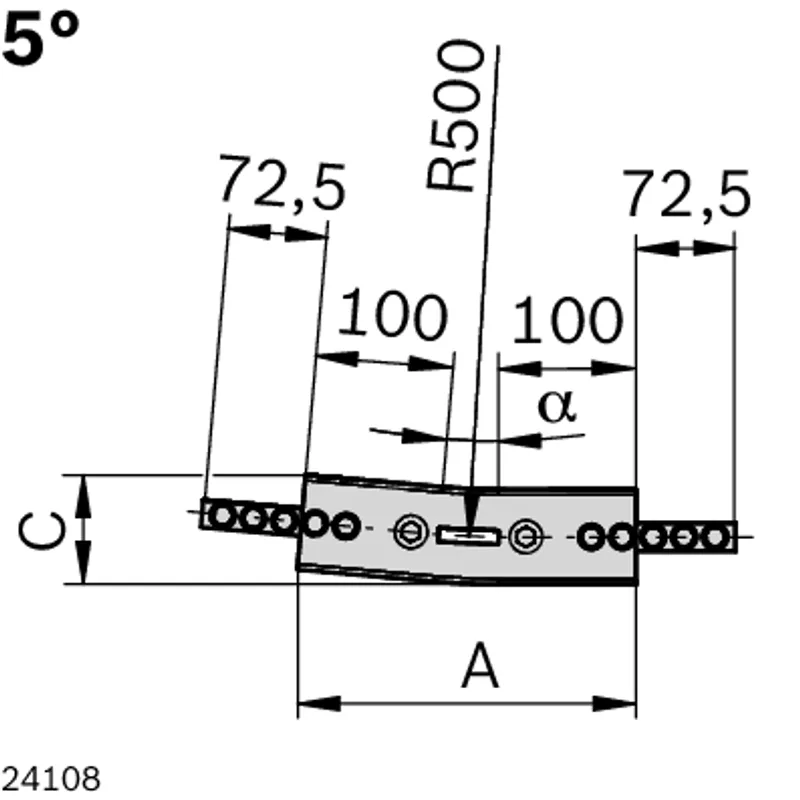

Deflection angle [α] [°]	5
Dimension A [mm] [mm]	246.2
Size [b] [mm]	160
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Notice	Effective sliding rail length with support profile
Material information	Connector: Non-rusting steel 1.4301; Profile: Non-rusting steel 1.4301; Support profile from size 160: Non-rusting steel 1.4301
Actual chain length [m]	2x 0,24
Effective sliding rail length [m]	8x 0,24
Required accessories	Slide rail: Length calculation
Weight [kg]	2.36
