Curves STS Parts
Compare Curves STS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Actual chain length [m] | Deflection angle [α] [°] | Dimension A [mm] [mm] | Effective sliding rail length [m] | Weight [kg] |
|---|---|---|---|---|---|
| 3842547139 | 2x 0,24 | 5 | 246.2 | 4x 0,24 | 1.55 |
| 3842547142 | 2x 0,59 | 45 | 548.7 | 4x 0,59 | 2.51 |

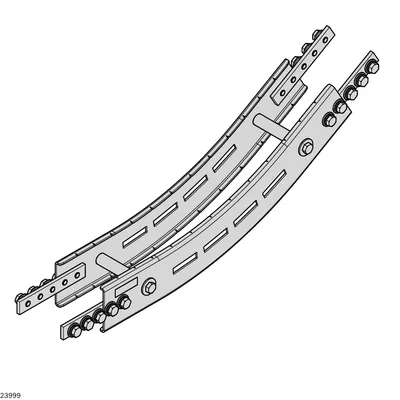

| 3842547141 | 2x 0,46 | 30 | 453.9 | 4x 0,46 | 2.13 |
| 3842547140 | 2x 0,33 | 15 | 334.9 | 4x 0,33 | 1.75 |
| 3842557058 | 2x 1,3 | 90 | 845 | 4x 1,3 | 4.38 |

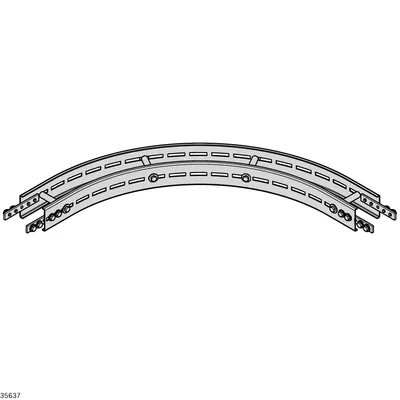

| 3842557055 | — | 90 | 645 | — | 3.48 |
| 3842557057 | 2x 0,75 | 45 | 352.6 | 4x 0,75 | 2.48 |
| 3842557054 | — | 45 | 294 | — | 2.03 |
| 3842557056 | 2x 0,56 | 30 | 227.8 | 4x 0,56 | 1.95 |
| 3842547135 | 2x 0,24 | 5 | 246.2 | 4x 0,24 | 1.47 |
| 3842547138 | 2x 0,59 | 45 | 548.7 | 4x 0,59 | 2.47 |
| 3842547137 | 2x 0,46 | 30 | 453.9 | 4x 0,46 | 2.09 |
| 3842547136 | 2x 0,33 | 15 | 334.9 | 4x 0,33 | 1.75 |
| 3842557053 | 2x 1,3 | 90 | 832.5 | 4x 1,3 | 4.22 |
| 3842557052 | 2x 0,75 | 45 | 331.2 | 4x 0,75 | 2.4 |
| 3842557051 | 2x 0,56 | 30 | 204.4 | 4x 0,56 | 1.87 |
| 3842547154 | 2x 0,24 | 5 | 246.2 | 8x 0,24 | 2.86 |
| 3842547156 | 2x 0,46 | 30 | 453.9 | 8x 0,46 | 3.48 |
| 3842547155 | 2x 0,33 | 15 | 334.9 | 8x 0,33 | 3.1 |
| 3842547133 | 2x 0,98 | 90 | 760 | 5x 0,98 | 7.67 |

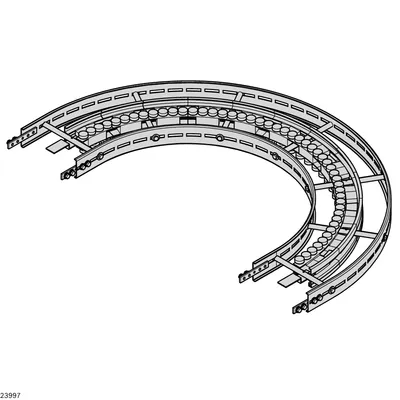

| 3842547132 | 2x 0,59 | 45 | 637.4 | 5x 0,59 | 4.5 |
| 3842547131 | 2x 0,46 | 30 | 516.6 | 5x 0,46 | 3.8 |
| 3842547134 | 2x 1,77 | 180 | 1320 | 5x 1,77 | 13.54 |
| 3842547151 | 2x 0,24 | 5 | 246.2 | 8x 0,24 | 2.61 |
Common to all listed parts
| Delivery information | Fully assembled |
| Required accessories | Slide rail: Length calculation |
