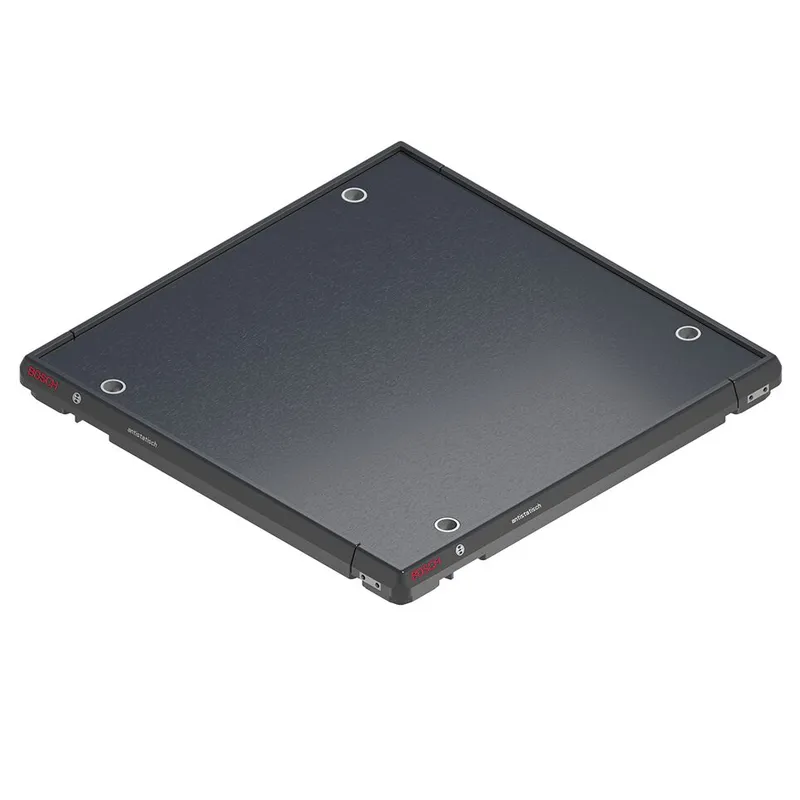

WORKPIECE PALLET LWT400 BWT400
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Workpiece pallet WT 2 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0842090080 be shipped?
0842090080 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0842090080 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0842090080 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0842090080, subject to availability and destination.
WT 2 workpiece pallet, fully assembled 400x400 Suitable for belt, toothed belt and flat top chain Robust workpiece pallet with high rigidity Integrated positioning bushings Prepared for installation of mobile data tags of the ID 15 ID 40 and ID 200 identification systems Not suitable for accumulation roller chains Plastic frame modules with universal steel carrying plate 15 standard sizes Material:<br>- Frame module polyamide (PA) wear pad<br>- Steel carrying plate (4.8 mm)

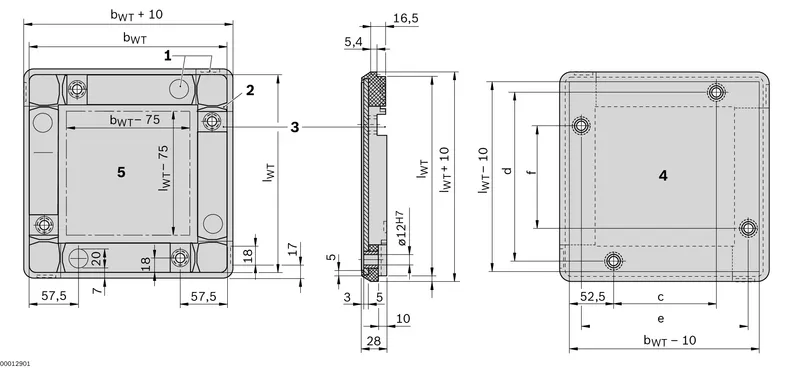

Specifications
Specifications
| Dimension [c] [mm] | 285 |
| Dimension [d] [mm] | 364 |
| Plate thickness [dPL] [mm] | 4.8 |
| Workpiece pallet total weight [mG] [kg] | 100 |
| Workpiece pallet length [lWT] [mm] | 400 |
| Weight workpiece pallet [mWT] [kg] | 6.6 |
| Plate weight [mPL] [kg] | 5.9 |
| Flatness [mm] | 0.6 |
| Scope of delivery | Carrying plate; Connection elements; Frame modules; Positioning bushings |
| Delivery information | Fully assembled |
| Material information | Frame module with polyamide (PA) wear pad; Steel carrying plate (4.8 mm) |
| Workpiece pallet width [bWT] [mm] | 400 |
| Weight [kg] | 6.6 |
