Workpiece pallet WT 2 Parts
Compare Workpiece pallet WT 2
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimension [c] [mm] | Dimension [d] [mm] | Weight workpiece pallet [mWT] [kg] | Plate weight [mPL] [kg] | Weight [kg] |
|---|---|---|---|---|---|
| 3842523405 | 525 | 604 | 16.3 | 15.3 | 16.3 |
| 0842090088 | 365 | 604 | 12.4 | 11.4 | 12.4 |
| 0842090083 | 285 | 604 | 11 | 9.3 | 11 |
| 0842090086 | 365 | 444 | 9.7 | 8.3 | 9.66 |
| 0842090081 | 285 | 444 | 8 | 6.1 | 8.02 |
| 0842090051 | 205 | 444 | 6.4 | 5.5 | 6.42 |
| 0842090080 | 285 | 364 | 6.6 | 5.9 | 6.6 |
| 0842090050 | 205 | 364 | 5.4 | 4.6 | 5.36 |

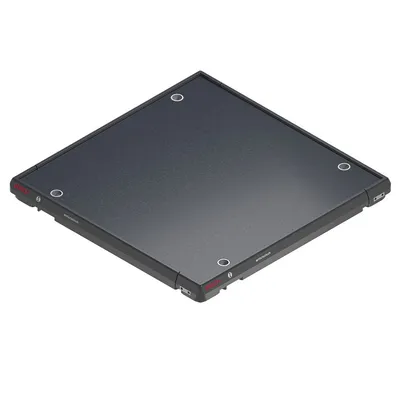

| 0842090043 | 125 | 364 | 4.1 | 3.4 | 4.1 |
| 0842090048 | 205 | 284 | 4.4 | 3.6 | 4.36 |
| 0842090041 | 125 | 284 | 3.3 | 2.7 | 3.3 |
| 0842090034 | 45 | 284 | 2.3 | 1.8 | 2.33 |
| 0842090039 | 125 | 204 | 2.5 | 2 | 2.54 |
| 0842090032 | 45 | 204 | 1.8 | 1.3 | 1.77 |
| 0842090030 | 45 | 124 | 1.2 | 0.9 | 1.25 |
Common to all listed parts
| Plate thickness [dPL] [mm] | 4.8 |
| Workpiece pallet total weight [mG] [kg] | 100 |

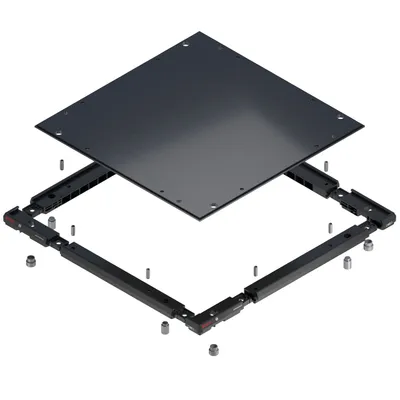

| Scope of delivery | Carrying plate; Connection elements; Frame modules; Positioning bushings |
| Delivery information | Fully assembled |
| Material information | Frame module with polyamide (PA) wear pad; Steel carrying plate (4.8 mm) |
