Beckhoff ZB7306-xxxx

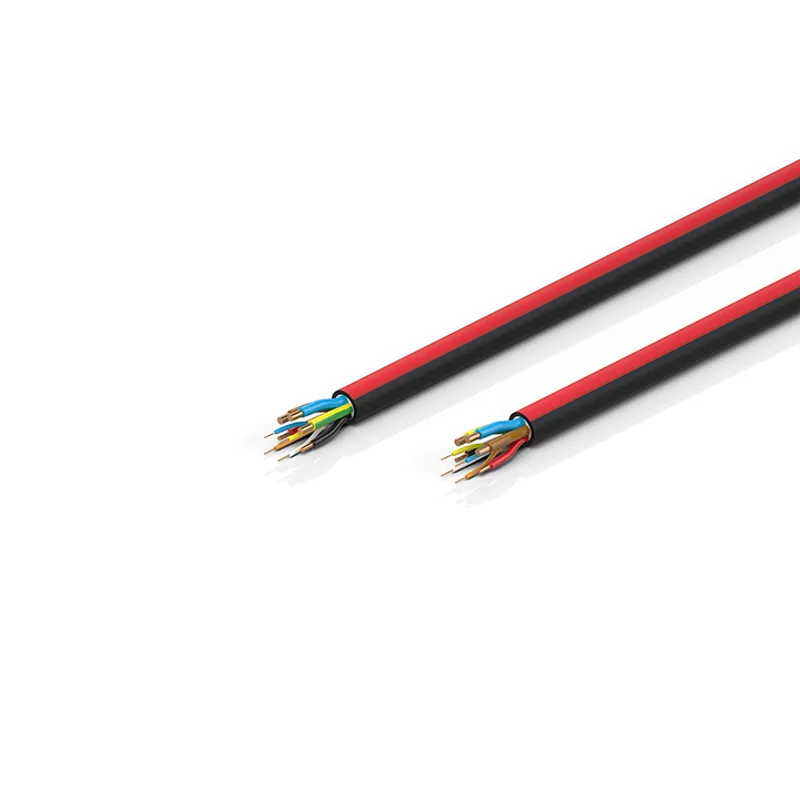

EtherCAT P cable, no overall shield, PUR, drag-chain suitable, 3 G 2.5 mm² + 2 x 1.5 mm² +(1 x 4 x AWG22), black with red stripe, OD = 11.9 (±0.4 mm)
- MPN
- ZB7306-xxxx
- Category
- Hybrid cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff ZB7306-xxxx?
EtherCAT P cable, no overall shield, PUR, drag-chain suitable, 3 G 2.5 mm² + 2 x 1.5 mm² +(1 x 4 x AWG22), black with red stripe, OD = 11.9 (±0.4 mm) - ZB7306-xxxx
Specifications
Specifications
| Operating voltage | ≤ 1000 V AC |
| Cross-section (power) | 3 x 2.5 mm² (approx. AWG14) + 2 x 1.5 mm² (approx. AWG16) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 11.9 mm ± 0.4 mm (0.469" ± 0.0157") |
| Min. bending radius, moved | 7 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 5 million |
| Jacket color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
ZB7306-xxxx: frequently asked questions
When can ZB7306-xxxx be shipped?
ZB7306-xxxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZB7306-xxxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZB7306-xxxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZB7306-xxxx, subject to availability and destination.
