Beckhoff ZB7303-xxxx

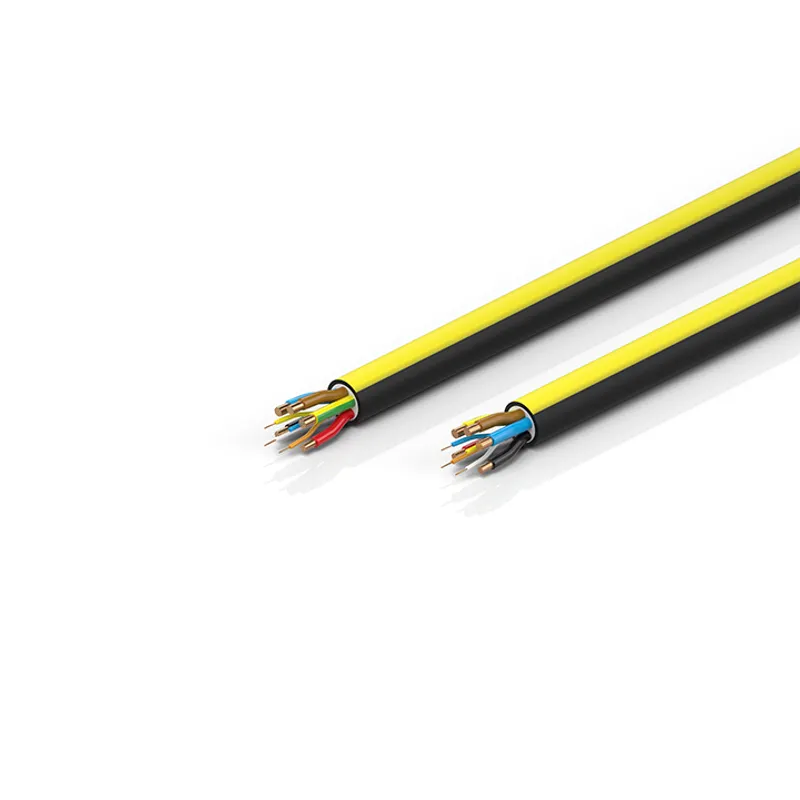

EtherCAT cable, overall shield, PUR, drag-chain suitable, 3G4 mm² + 2 x 2.5 mm² + (1 x 4 x AWG22), black with yellow stripe, OD = 16.5 (±0.4 mm)

MPN: ZB7303-xxxx
Category: Hybrid cables

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZB7303-xxxx?

EtherCAT P cable, total screen, PUR, drag-chain suitable, 4x4mm²+2x2.5mm²+1x4xAWG22), black with yellow stripe, OD = 15,0

Specifications

Specifications

Cross-section (Ethernet)	1 x 4 x 0.34 mm² (AWG22)
Cross-section (power)	4 x 4.0 mm² (approx. AWG12)
Cross-section (signal)	2 x 2.5 mm² (approx. AWG14)
Use	drag-chain suitable
Material jacket	PUR (polyurethane)
Outer cable diameter	16.4 mm ± 0.4 mm (0.6456" ± 0.0157")
Jacket color	black (similar to RAL 9005) with yellow stripe (similar to RAL 1003)

ZB7303-xxxx: frequently asked questions

When can ZB7303-xxxx be shipped?

ZB7303-xxxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZB7303-xxxx in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZB7303-xxxx and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZB7303-xxxx, subject to availability and destination.
