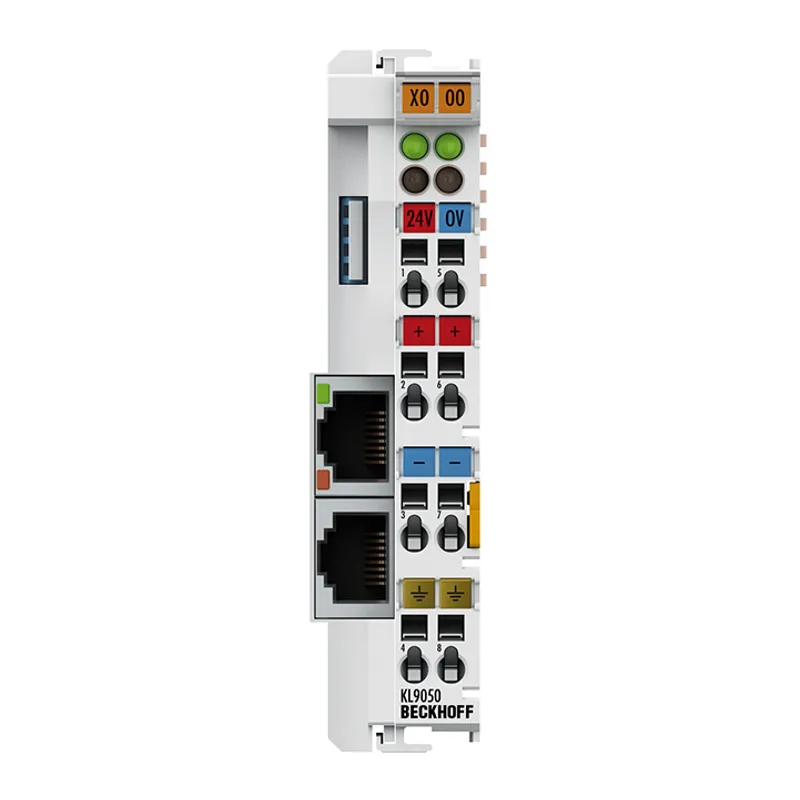

Beckhoff KL9050
Terminal bus extension, coupler terminal
- MPN
- KL9050
- Category
- KL9xxx | System
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff KL9050?
The KL9050 coupler terminal replaces the Bus Coupler on a Bus Terminal block. The KL9050 is the counterpart to the KL9020. The S(F)TP cable (shielded twisted pair) is plugged into the upper socket, providing the logical connection to the Bus Coupler. The
Specifications
Specifications
| Number of Bus Terminals | 64 |
| Current load | ≤ 10 A |
| Power LED | green |
| Defect LED | – |
| Type/number of peripheral signals | Bus Coupler dependency |
| Distance between stations | max. 5 m between KL9050 and KL9050 |
| Bus interface | 2 x RJ45 socket (input + output) |
| Power supply | 24 V DC (-15%/+20%) |
| Input current | 70 mA + (total K-bus current)/4, 200 mA max. |
| Starting current | 2.5 x continuous current |
| Current supply K-bus | up to 400 mA |
| Power contacts | max. 24 V DC/max. 10 A |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Electrical isolation | 500 V (power contact/supply voltage/fieldbus) |
| Shield connection | – |
| Electrical connection to DIN rail | – |
| Special features | coupler terminal for K-bus extension (max. 64 Bus Terminals) |
| Weight | approx. 75 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
