KL9xxx | System Parts

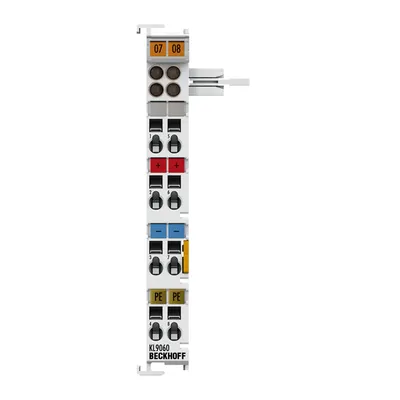

Beckhoff KL9060 – Adapter terminal for KL8001 power terminals

Beckhoff

Adapter terminal for KL8001 power terminals

Beckhoff KL9010 – End terminal

Beckhoff

End terminal

Beckhoff KL9050 – Terminal bus extension, coupler terminal

Beckhoff

Terminal bus extension, coupler terminal

Beckhoff KL9020 – Terminal bus extension, end terminal

Beckhoff

Terminal bus extension, end terminal

Beckhoff KL9380 – Mains filter terminal for dimmers

Beckhoff

Mains filter terminal for dimmers

Beckhoff KL9540-0010 – System terminal, surge filter field supply for analog terminals

Beckhoff

System terminal, surge filter field supply for analog terminals

Beckhoff KL9290 – Potential supply terminal, any voltage up to 230 V AC, with fuse

Beckhoff

Potential supply terminal, any voltage up to 230 V AC, with fuse

Beckhoff KL9200 – Potential supply terminal, 24 V DC, with fuse

Beckhoff

Potential supply terminal, 24 V DC, with fuse

Beckhoff KL9080 – Separation terminal

Beckhoff

Separation terminal

Beckhoff KL9195 – Shield terminal

Beckhoff

Shield terminal

Beckhoff KL9185 – Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC

Beckhoff

Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC

Beckhoff KL9180 – Potential distribution terminal, 2 x 24 V DC; 2 x 0 V DC, 2 x PE

Beckhoff

Potential distribution terminal, 2 x 24 V DC; 2 x 0 V DC, 2 x PE

Beckhoff KL9260 – Potential supply terminal, 120…230 V AC, with diagnostics and fuse

Beckhoff

Potential supply terminal, 120…230 V AC, with diagnostics and fuse

Beckhoff KL9250 – Potential supply terminal, 120…230 V AC, with fuse

Beckhoff

Potential supply terminal, 120…230 V AC, with fuse

Beckhoff KL9160 – Potential supply terminal, 120…230 V AC, with diagnostics

Beckhoff

Potential supply terminal, 120…230 V AC, with diagnostics

Beckhoff KL9210 – Potential supply terminal, 24 V DC, with diagnostics and fuse

Beckhoff

Potential supply terminal, 24 V DC, with diagnostics and fuse

Beckhoff KL9150 – Potential supply terminal, 120…230 V AC

Beckhoff

Potential supply terminal, 120…230 V AC

Beckhoff KL9110 – Potential supply terminal, 24 V DC, with diagnostics

Beckhoff

Potential supply terminal, 24 V DC, with diagnostics

Beckhoff KL9100 – Potential supply terminal, 24 V DC

Beckhoff

Potential supply terminal, 24 V DC

Beckhoff KL9190 – Potential supply terminal, any voltage up to 230 V AC

Beckhoff

Potential supply terminal, any voltage up to 230 V AC

Beckhoff KL9570 – Buffer capacitor terminal

Beckhoff

Buffer capacitor terminal

Beckhoff KL9070 – Shield terminal

Beckhoff

Shield terminal

Beckhoff KL9515 – Power supply terminal 15 V DC

Beckhoff

Power supply terminal 15 V DC

Beckhoff KL9512 – Power supply terminal 12 V DC

Beckhoff

Power supply terminal 12 V DC

Compare KL9xxx | System

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal voltage	Bit width in the process image	Weight	Approvals/markings	Connection facility to additional power contact
KL9060	24 V DC (-15%/+20%)	–	approx. 65 g	CE	—
KL9010	–	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV, cFMus	–
KL9050	24 V DC (-15%/+20%)	—	approx. 75 g	CE, CCC, UL, ATEX, IECEx, DNV	—
KL9020	–	—	approx. 45 g	CE, CCC, UL, ATEX, IECEx, DNV	—
KL9380	arbitrary up to 230 V AC	0	approx. 50 g	CE	2
KL9540-0010	24 V DC (-15%/+20%)	—	approx. 65 g	CE, UL, DNV	—
KL9290	arbitrary	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9200	24 V DC	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9080	separation terminal	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	–
KL9195	arbitrary up to 230 V AC	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	2
KL9185	arbitrary up to 230 V AC	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	4
KL9180	arbitrary up to 230 V AC	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	2
KL9260	120/230 V AC	2	approx. 55 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9250	120/230 V AC	0	approx. 55 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9160	120/230 V AC	2	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9210	24 V DC	2	approx. 55 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9150	120/230 V AC	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9110	24 V DC	1	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV, cFMus	1
KL9100	24 V DC	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9190	arbitrary	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx, DNV	1
KL9570	50 V	—	approx. 65 g	CE, CCC, ATEX, IECEx	—
KL9070	≤ 60 V	0	approx. 50 g	CE, CCC, UL, ATEX, IECEx	no
KL9515	—	—	approx. 65 g	CE, CCC, UL, ATEX, IECEx	—
KL9512	—	—	approx. 65 g	CE, CCC, UL, ATEX, IECEx	—
