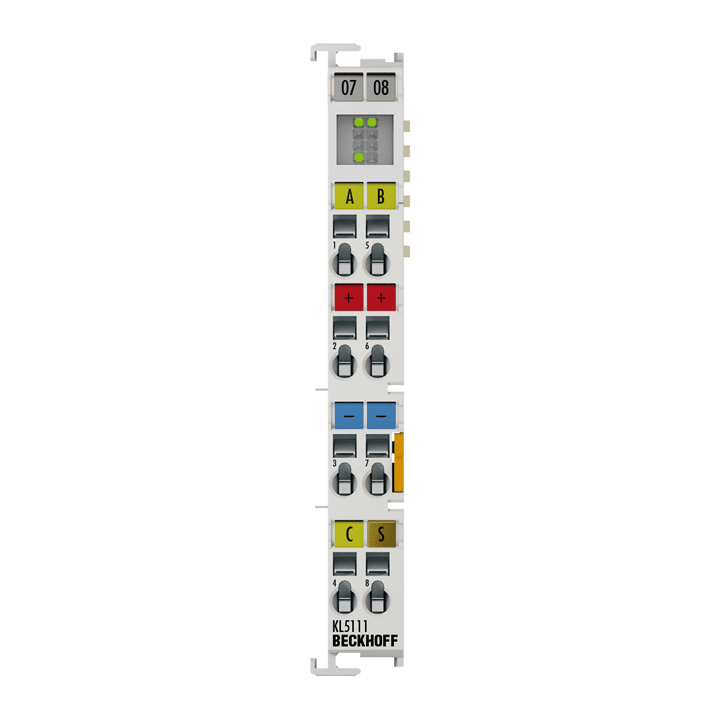

Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 250 kHz
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | KL5xxx | Position measurement |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can KL5111 be shipped?
KL5111 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KL5111 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KL5111 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KL5111, subject to availability and destination.
The KL5111 Bus Terminal is an interface for the direct connection of 24 V incremental encoders. A 16 bit counter with a quadrature decoder and a 16 bit latch for the zero pulse can be read, set or enabled. The state of the counter is transmitted quickly
Specifications
Specifications
| Technology | incremental encoder interface 24 V DC, EN 61131-2, type 1, “0”: 5 V DC, “1”: > 15 V DC, typ. 5 mA |
| Number of channels | 1 incremental encoder |
| Encoder connection | A, B, C, 24 V |
| Encoder operating voltage | 24 V DC |
| Encoder output current | – |
| Counter | 16 bit, binary |
| Limit frequency | 1 million increments/s (with 4-fold evaluation) |
| Quadrature decoder | 4-fold evaluation |
| Zero-pulse latch | 16 bit |
| Commands | read, set, enable |
| Power supply | 24 V DC (-15%/+20%) |
| Current consumption power contacts | – |
| Current consumption K-bus | typ. 40 mA |
| Bit width in the process image | input/output: 2 x 16 bit data, 2 x 8 bit control/status |
| Weight | approx. 60 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
