KL5xxx | Position measurement Parts

Showing 1–7 of 7 parts
Beckhoff KL5121 – Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 250 kHz, with 4 x digital output 24 V DC, linear path control
Beckhoff
KL5121

Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 250 kHz, with 4 x digital output 24 V DC, linear path control

Beckhoff KL5111 – Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 250 kHz
Beckhoff
KL5111

Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 250 kHz

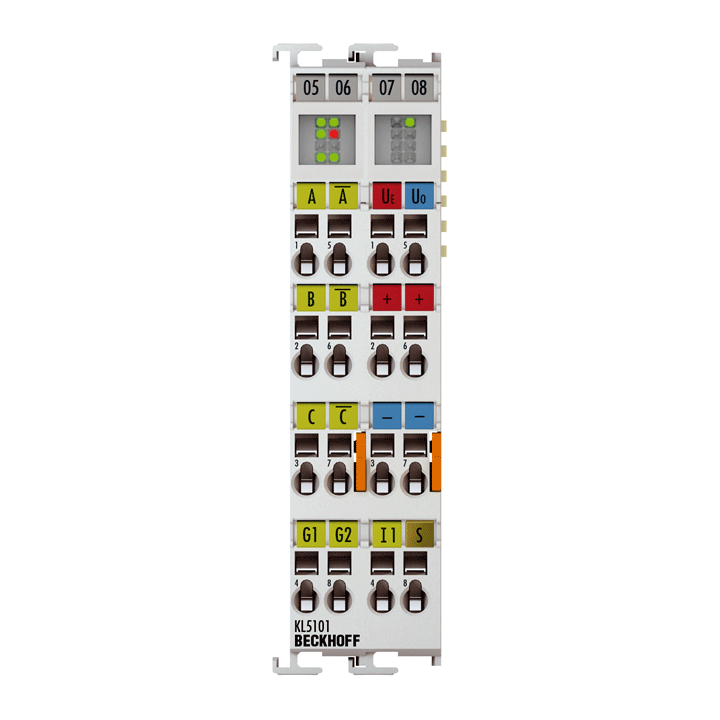

Beckhoff KL5101 – Bus Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz
Beckhoff
KL5101

Bus Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz

Beckhoff KL5152 – Bus Terminal, 2-channel encoder interface, incremental, 24 V DC HTL, 100 kHz
Beckhoff
KL5152

Bus Terminal, 2-channel encoder interface, incremental, 24 V DC HTL, 100 kHz

Beckhoff KL5151 – Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz
Beckhoff
KL5151

Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz

Beckhoff KL5051 – Bus Terminal, 1-channel encoder interface, SSI, bidirectional
Beckhoff
KL5051

Bus Terminal, 1-channel encoder interface, SSI, bidirectional

Beckhoff KL5001 – Bus Terminal, 1-channel encoder interface, SSI
Beckhoff
KL5001

Bus Terminal, 1-channel encoder interface, SSI

Compare KL5xxx | Position measurement

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNNumber of channelsPower supplyCurrent consumption power contactsCurrent consumption K-busWeight
KL51211 incremental encoder + 4 outputs24 V DC (-15%/+20%)typ. 30 mA + loadtyp. 60 mAapprox. 60 g
KL51111 incremental encoder24 V DC (-15%/+20%)–typ. 40 mAapprox. 60 g
KL51011 incremental encoder + 1 input24 V DC (-15%/+20%)– (no power contacts)typ. 60 mAapprox. 85 g
KL51522 incremental encoders24 V DC (-15%/+20%)–typ. 40 mAapprox. 50 g
KL51511 incremental encoder24 V DC (-15%/+20%)–typ. 40 mAapprox. 50 g
KL50511 encoder interface5 V DC via power contacts (KL9505)no datatyp. 75 mAapprox. 80 g
KL50011 encoder interface24 V DC via power contactstyp. 20 mA + loadtyp. 25 mAapprox. 60 g

Common to all listed parts

Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP20/variable
Pluggable wiringfor all KSxxxx Bus Terminals
Approvals/markingsCE, CCC, UL, ATEX, IECEx
Ex markingATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design formcompact terminal housing with signal LEDs
