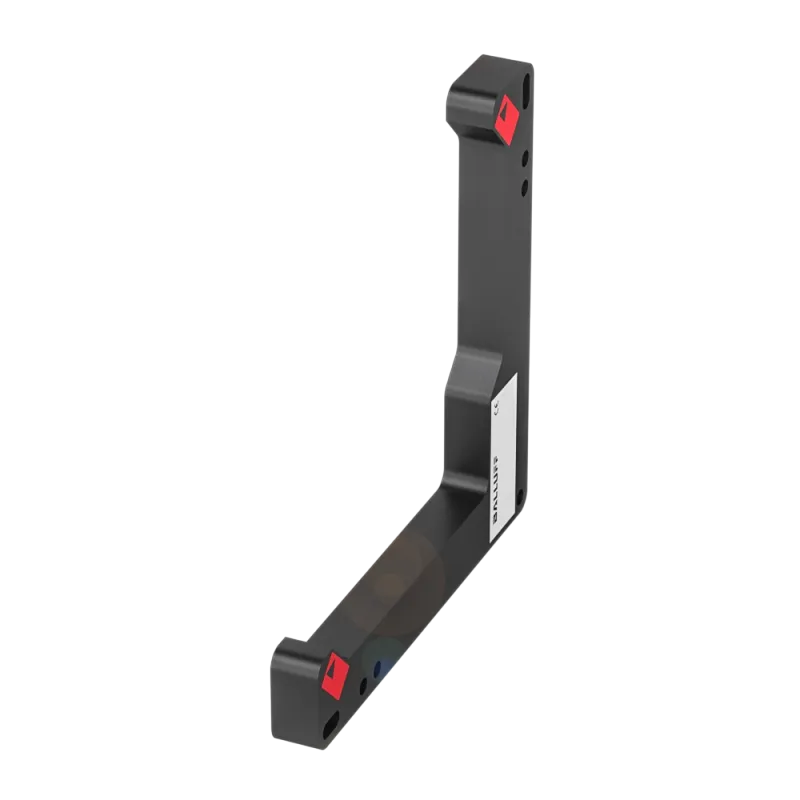

Balluff BWL001E

BWL 9090D-R014-S49 – Angle sensors

MPN: BWL001E
Category: Angle sensors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BWL001E?

Balluff BWL001E (BWL 9090D-R014-S49) — Angle sensor. Series: D; Dimension: 12 x 125 x 134 mm; Interface: NPN normally open/normally closed (NO/NC); Principle of optical operation: Through-beam sensor; Beam characteristic: Divergent. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BWL 9090D-R014-S49
Product group	Angle sensors

Key features

Series	D
Dimension	12 x 125 x 134 mm
Interface	NPN normally open/normally closed (NO/NC)
Principle of operation	Angle sensor
Principle of optical operation	Through-beam sensor
Beam characteristic	Divergent
Light type	Red light
Light spot size	Ø 2.5 mm Light exit
Connection	Connector, M8x1-Male, 3-pin
Housing material	Zinc, Die casting, Painted
Material sensing surface	Glass
Operating voltage Ub	10...30 VDC
Approval/Conformity	CE cULus WEEE

Classifications

ECLASS 14.0	27-27-09-09
ETIM 9.0	EC002720
UNSPSC 11	39121528
