Angle sensors Parts

Balluff

BWL0002

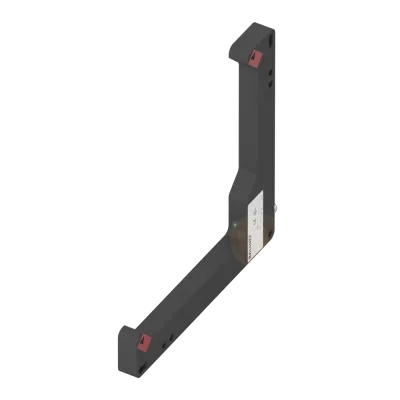

BWL 110110D-I012-S49 – Angle sensors

Balluff

BWL000Z

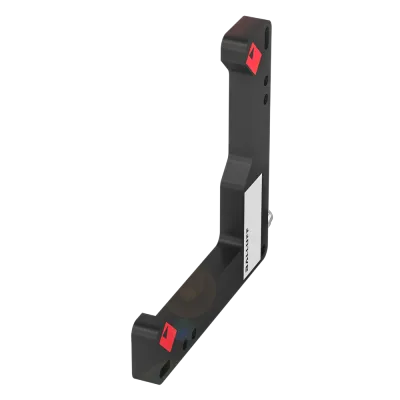

BWL 6868D-I012-S49 – Angle sensors

Balluff

BWL000M

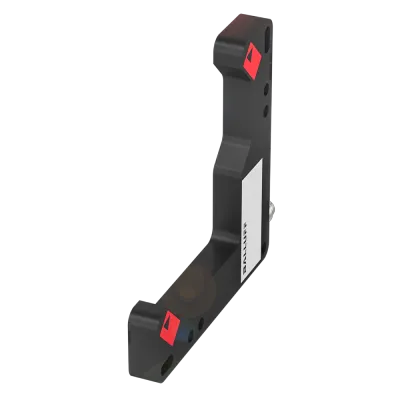

BWL 5454D-I012-S49 – Angle sensors

Balluff

BWL000A

BWL 4040D-I012-S49 – Angle sensors

Balluff

BWL0008

BWL 110110D-R014-S49 – Angle sensors

Balluff

BWL001E

BWL 9090D-R014-S49 – Angle sensors

Balluff

BWL0014

BWL 6868D-R014-S49 – Angle sensors

Balluff

BWL000W

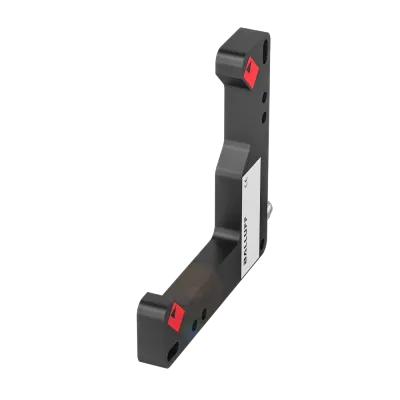

BWL 5454D-R014-S49 – Angle sensors

Balluff

BWL000K

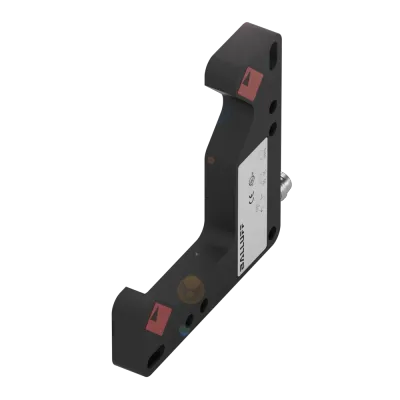

BWL 4040D-R014-S49 – Angle sensors

Balluff

BWL0007

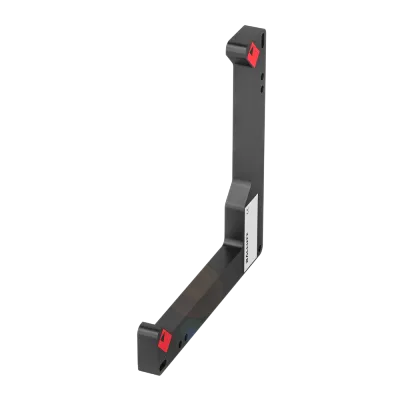

BWL 110110D-R013-S49 – Angle sensors

Balluff

BWL001N

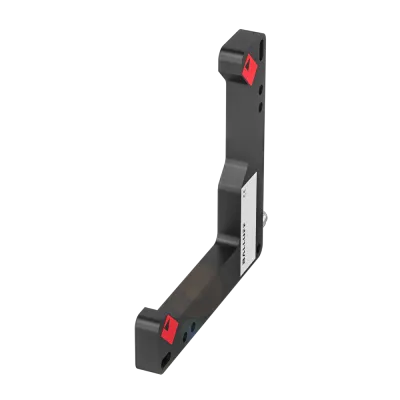

BWL 6868D-R013-S49 – Angle sensors

Balluff

BWL0004

BWL 110110D-L012-S49 – Angle sensors

Balluff

BWL0018

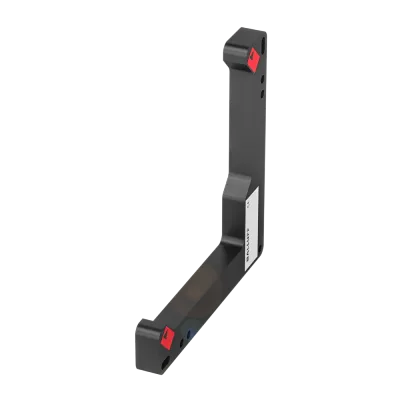

BWL 9090D-L012-S49 – Angle sensors

Balluff

BWL0011

BWL 6868D-L012-S49 – Angle sensors

Balluff

BWL000P

BWL 5454D-L012-S49 – Angle sensors

Balluff

BWL000E

BWL 4040D-L012-S49 – Angle sensors

Balluff

BWL001A

BWL 9090D-R012-S49 – Angle sensors

Balluff

BWL0013

BWL 6868D-R012-S49 – Angle sensors

Balluff

BWL000T

BWL 5454D-R012-S49 – Angle sensors

Balluff

BWL001L

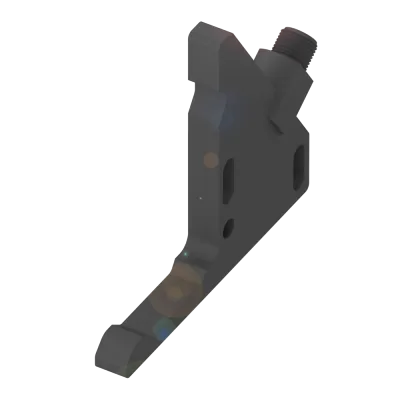

BWL 4260A-001-S4 – Angle sensors

Balluff

BWL001J

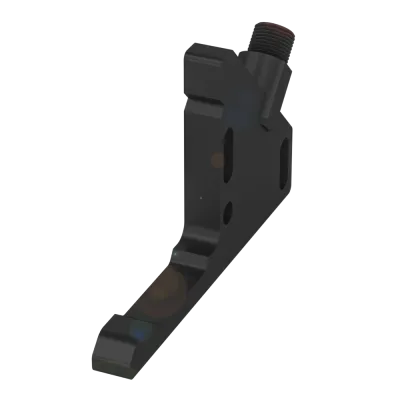

BWL 4241A-001-S4 – Angle sensors

Balluff

BWL001H

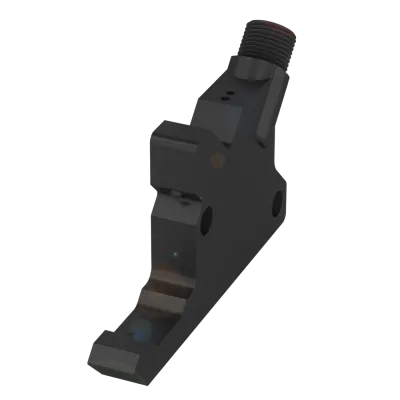

BWL 2222C-001-S4 – Angle sensors

Balluff

BWL001F

BWL 2222B-001-S4 – Angle sensors

Balluff

BWL001M

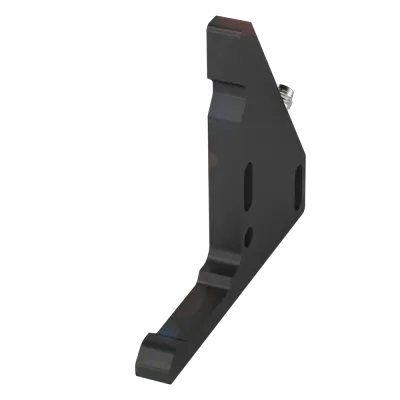

BWL 4260A-001-S49 – Angle sensors

Compare Angle sensors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Type designation	Series	Dimension	Light type	Light spot size
BWL0002	BWL 110110D-I012-S49	D	12 x 150 x 159 mm	Infrared	Ø 2.5 mm Light exit
BWL000Z	BWL 6868D-I012-S49	D	10 x 105 x 114 mm	Infrared	Ø 2.5 mm Light exit
BWL000M	BWL 5454D-I012-S49	D	10 x 90 x 99 mm	Infrared	Ø 2.5 mm Light exit
BWL000A	BWL 4040D-I012-S49	D	10 x 75 x 84 mm	Infrared	Ø 2.5 mm Light exit
BWL0008	BWL 110110D-R014-S49	D	12 x 150 x 159 mm	Red light	Ø 2.5 mm Light exit
BWL001E	BWL 9090D-R014-S49	D	12 x 125 x 134 mm	Red light	Ø 2.5 mm Light exit
BWL0014	BWL 6868D-R014-S49	D	10 x 105 x 114 mm	Red light	Ø 2.5 mm Light exit
BWL000W	BWL 5454D-R014-S49	D	10 x 90 x 99 mm	Red light	Ø 2.0 mm Light exit
BWL000K	BWL 4040D-R014-S49	D	10 x 75 x 84 mm	Red light	Ø 1.7 mm Light exit
BWL0007	BWL 110110D-R013-S49	D	12 x 150 x 159 mm	Red light	Ø 2.5 mm Light exit
BWL001N	BWL 6868D-R013-S49	D	10 x 105 x 114 mm	Red light	Ø 2.5 mm Light exit
BWL0004	BWL 110110D-L012-S49	D	12 x 150 x 159 mm	Laser red light	Ø 0.2 mm Light exit
BWL0018	BWL 9090D-L012-S49	D	12 x 125 x 134 mm	Laser red light	Ø 0.2 mm Light exit
BWL0011	BWL 6868D-L012-S49	D	10 x 105 x 114 mm	Laser red light	Ø 0.2 mm Light exit
BWL000P	BWL 5454D-L012-S49	D	10 x 90 x 99 mm	Laser red light	Ø 0.2 mm Light exit
BWL000E	BWL 4040D-L012-S49	D	10 x 75 x 84 mm	Laser red light	Ø 0.2 mm Light exit
BWL001A	BWL 9090D-R012-S49	D	12 x 125 x 134 mm	LED, red light	Ø 2.5 mm Light exit
BWL0013	BWL 6868D-R012-S49	D	10 x 105 x 114 mm	LED, red light	Ø 2.5 mm Light exit
BWL000T	BWL 5454D-R012-S49	D	10 x 90 x 99 mm	LED, red light	Ø 2.0 mm Light exit
BWL001L	BWL 4260A-001-S4	A	14 x 90 x 113 mm	Infrared	Ø 3.0 mm Light exit
BWL001J	BWL 4241A-001-S4	A	14 x 66 x 112.6 mm	Infrared	Ø 3.0 mm Light exit
BWL001H	BWL 2222C-001-S4	C	14 x 51 x 90 mm	Infrared	Ø 3.0 mm Light exit
BWL001F	BWL 2222B-001-S4	B	14 x 45.4 x 99.5 mm	Infrared	Ø 3.0 mm Light exit
BWL001M	BWL 4260A-001-S49	A	10 x 90 x 106 mm	Infrared	Ø 3.0 mm Light exit

Common to all listed parts

Lifecycle	Active
Product group	Angle sensors
Principle of operation	Angle sensor
Principle of optical operation	Through-beam sensor
Operating voltage Ub	10...30 VDC
ECLASS 14.0	27-27-09-09
ETIM 9.0	EC002720
UNSPSC 11	39121528
