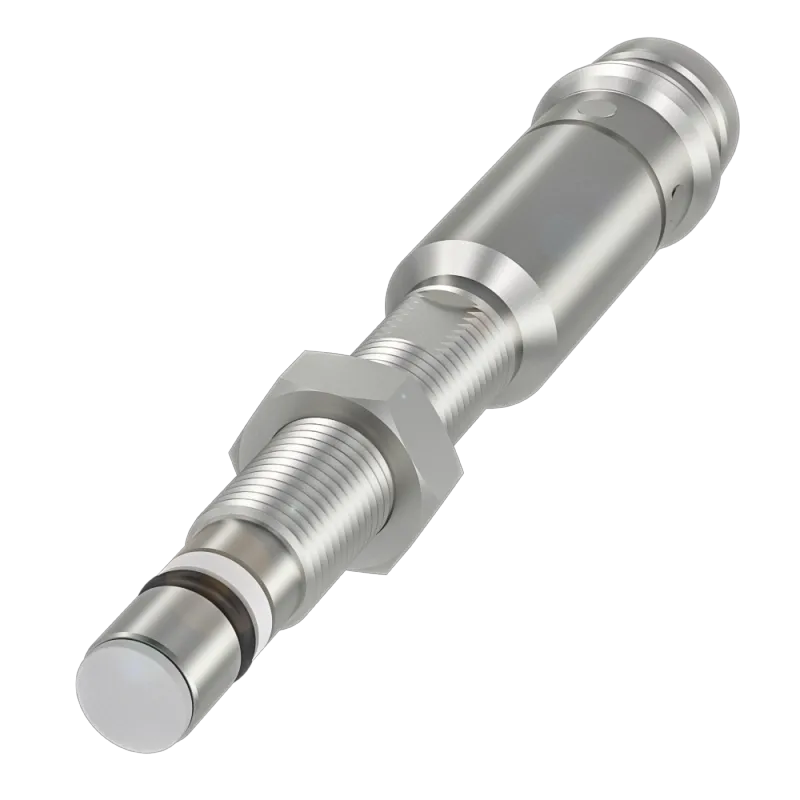

Balluff BHS005F

BHS G408N-POC10-S49 – Pressure-rated inductive sensors

MPN: BHS005F
Category: Pressure-rated inductive sensors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Balluff parts? We buy surplus →

What is the Balluff BHS005F?

Balluff BHS005F (BHS G408N-POC10-S49) — Pressure-rated inductive sensor. Dimension: Ø 5 x 47 mm; Style Housing: M5x0.5; Installation: for flush mounting; Range: 1 mm; Switching output: PNP normally closed (NC). PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Type designation	BHS G408N-POC10-S49
Product group	Pressure-rated inductive sensors

Key features

Dimension	Ø 5 x 47 mm
Style Housing	M5x0.5
Installation	for flush mounting
Range	1 mm
Switching output	PNP normally closed (NC)
Switching frequency	3000 Hz
Housing material	1.4104 stainless steel
Material sensing surface	Ceramic
Connection	Connector, M8x1-Male, 3-pin
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...80 °C
Pressure rating max.	500 bar
IP rating	IP68
Approval/Conformity	CE cULus EAC WEEE

Classifications

ECLASS 14.0	27-27-40-01
ETIM 9.0	EC002714
UNSPSC 11	41111926
