Pressure-rated inductive sensors Parts
Compare Pressure-rated inductive sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Dimension | Style Housing | Switching output | Approval/Conformity |
|---|---|---|---|---|---|

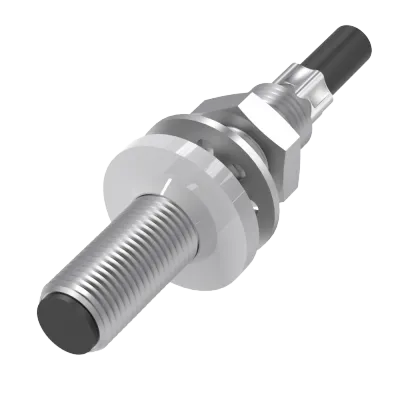

| BES03NZ | BES M05ED-PSC08B-BP02-R50 | Ø 5 x 27 mm | M5x0.5 | PNP normally open (NO) | cULus CE UKCA WEEE |

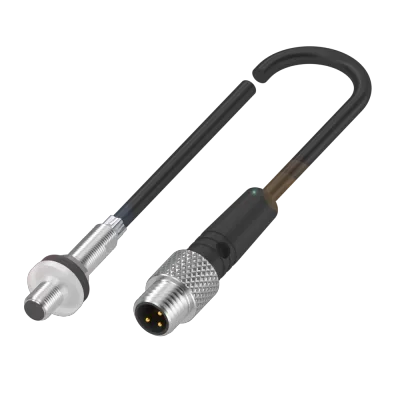

| BES03LH | BES M05ED-NOD08B-BP00,3-GS49-R03 | Ø 5 x 27 mm | M5x0.5 | NPN normally closed (NC) | CE cULus EAC |
| BES03LF | BES M05ED-NSD08B-BP00,3-GS49-R03 | Ø 5 x 27 mm | M5x0.5 | NPN normally open (NO) | CE cULus EAC |

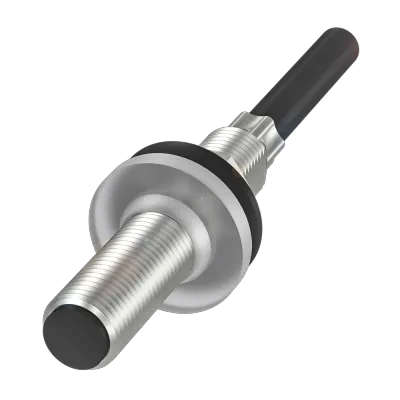

| BES03LA | BES M05ED-NOD08B-BP02-R03 | Ø 5 x 27 mm | M5x0.5 | NPN normally closed (NC) | CE cULus EAC |
| BES03L9 | BES M05ED-NSD08B-BP02-R03 | Ø 5 x 27 mm | M5x0.5 | NPN normally open (NO) | CE cULus EAC WEEE |
| BES03L8 | BES M05ED-POD08B-BP02-R03 | Ø 5 x 27 mm | M5x0.5 | PNP normally closed (NC) | CE UKCA cULus WEEE |
| BES03L7 | BES M05ED-PSD08B-BP02-R03 | Ø 5 x 27 mm | M5x0.5 | PNP normally open (NO) | CE UKCA cULus WEEE |

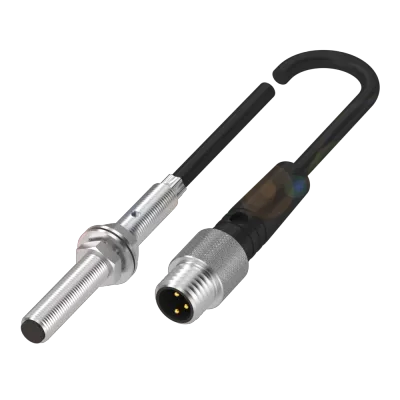

| BES0315 | BES M05EG-NSC08B-BP00,2-GS49 | Ø 5 x 42 mm | M5x0.5 | NPN normally open (NO) | CE UKCA cULus WEEE |

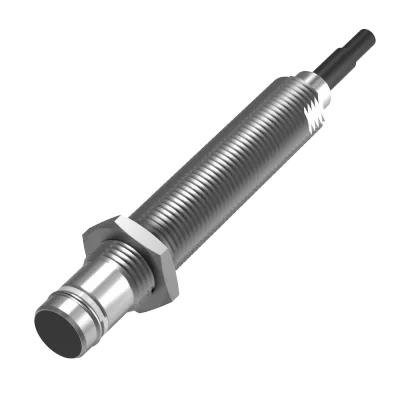

| BES02RJ | BES 516-300-S135-D-PU-10 | Ø 12 x 61 mm | M12x1 | PNP normally open (NO) | CE UKCA cULus WEEE |
| BHS005C | BHS G408N-NOC10-S49 | Ø 4.2 x 47 mm | D4.2 | NPN normally closed (NC) | CE cULus EAC |
| BHS005E | BHS G408N-NSC10-S49 | Ø 5 x 47 mm | M5x0.5 | NPN normally open (NO) | CE UKCA cULus WEEE |

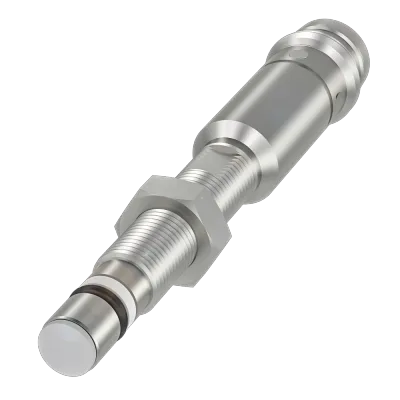

| BHS005F | BHS G408N-POC10-S49 | Ø 5 x 47 mm | M5x0.5 | PNP normally closed (NC) | CE cULus EAC WEEE |

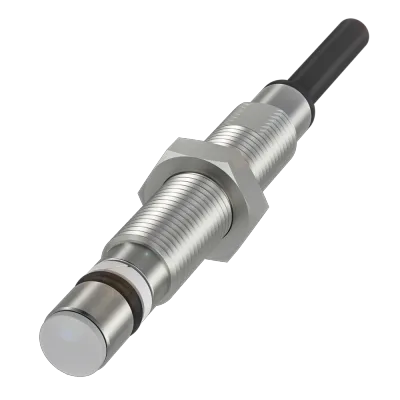

| BHS006Z | BHS G409N-NOD10-EP02 | Ø 4.2 x 32 mm | D4.2 | NPN normally closed (NC) | CE cULus EAC |
| BHS006W | BHS G409N-POD10-EP02 | Ø 4.2 x 32 mm | D4.2 | PNP normally closed (NC) | CE cULus EAC WEEE |

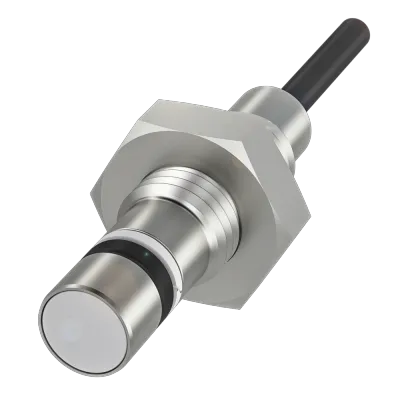

| BHS0055 | BHS A407N-NOD15-BP02 | Ø 6.5 x 31.3 mm | D6.5 | NPN normally closed (NC) | CE cULus EAC WEEE |
| BHS0056 | BHS A407N-NSD15-BP02 | Ø 6.5 x 31.3 mm | D6.5 | NPN normally open (NO) | CE cULus EAC WEEE |
| BHS0057 | BHS A407N-POD15-BP02 | Ø 6.5 x 31.3 mm | D6.5 | PNP normally closed (NC) | CE cULus EAC WEEE |
| BHS006T | BHS G403N-NOD10-S26 | Ø 4.2 x 40.5 mm | D4.2 | NPN normally closed (NC) | CE cULus EAC |

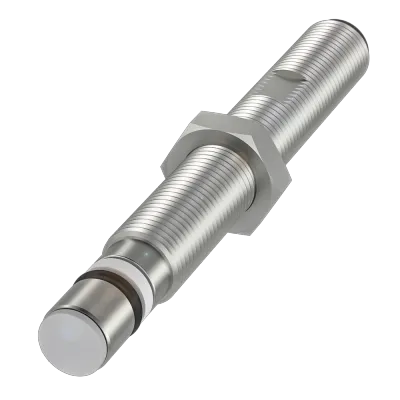

| BHS006R | BHS G403N-NSD10-S26 | Ø 4.2 x 40.5 mm | D4.2 | NPN normally open (NO) | CE cULus EAC WEEE |
| BHS006P | BHS G403N-POD10-S26 | Ø 5 x 40.5 mm | M5x0.5 | PNP normally closed (NC) | CE cULus EAC WEEE |
| BHS0051 | BHS A404N-NOC15-S49 | Ø 6.5 x 45 mm | D6.5 | NPN normally closed (NC) | CE cULus EAC |
| BHS0052 | BHS A404N-NSC15-S49 | Ø 6.5 x 45 mm | D6.5 | NPN normally open (NO) | CE cULus EAC |

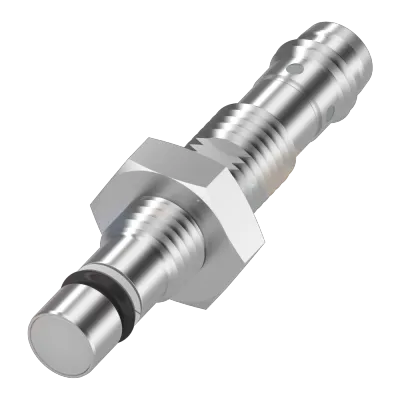

| BHS0053 | BHS A404N-POC15-S49 | Ø 6.5 x 45 mm | D6.5 | PNP normally closed (NC) | CE cULus EAC |

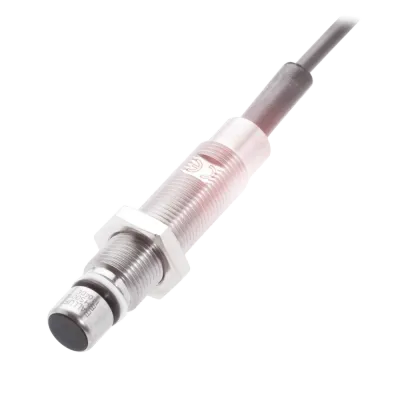

| BHS0020 | BES 516-300-S162-D-PU-10 | Ø 12 x 59 mm | M12x1 | PNP normally open (NO) | CE EAC WEEE |
Common to all listed parts
| Product group | Pressure-rated inductive sensors |
| Installation | for flush mounting |
| Operating voltage Ub | 10...30 VDC |
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
