Balluff BES01PZ
BES M12MF-PSC30A-S04G – Inductive factor 1 sensors
- MPN
- BES01PZ
- Category
- Inductive factor 1 sensors
Price and lead time confirmed within 1 business day
Discontinued by Balluff — we can still source the original BES01PZ (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Balluff BES01PZ?

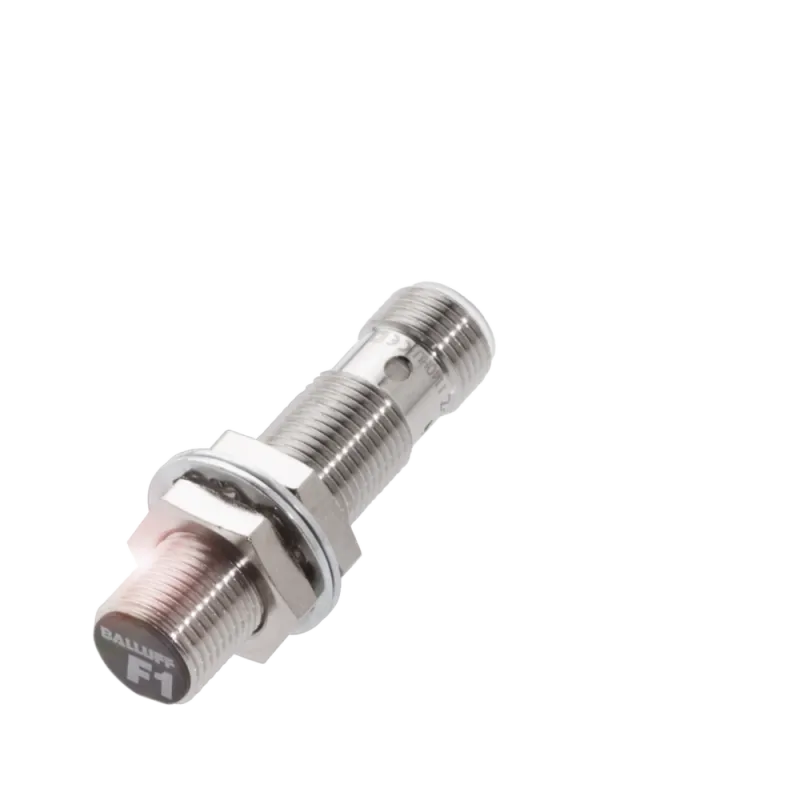

Balluff BES01PZ (BES M12MF-PSC30A-S04G) — Inductive factor 1 sensor. Dimension: Ø 12 x 50 mm; Style Housing: M12x1; Installation: for flush mounting; Range: 3 mm; Switching output: PNP normally open (NO). Discontinued by Balluff; Balluff names BES05KP as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Balluff |
| Type designation | BES M12MF-PSC30A-S04G |
| Product group | Inductive factor 1 sensors |
| Balluff alternatives | BES05KP, BES02JZ |
Key features
| Dimension | Ø 12 x 50 mm |
| Style Housing | M12x1 |
| Installation | for flush mounting |
| Range | 3 mm |
| Switching output | PNP normally open (NO) |
| Switching frequency | 2000 Hz |
| Housing material | Brass, nickel-plated |
| Material sensing surface | LCP/PTFE |
| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) |
| IP rating | IP67 |
| Approval/Conformity | CE cULus EAC WEEE |
| Additional features | Factor 1 Weld immune |
Classifications
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
No matching specifications
BES01PZ: frequently asked questions
Can I still buy the BES01PZ now that it is discontinued?
Yes. Balluff has discontinued the BES01PZ, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BES05KP as its successor — we can quote both.
When can BES01PZ be shipped?
BES01PZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BES01PZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BES01PZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BES01PZ, subject to availability and destination.
