Inductive factor 1 sensors Parts
Compare Inductive factor 1 sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Type designation | Dimension | Range | Switching frequency | Approval/Conformity |
|---|---|---|---|---|---|

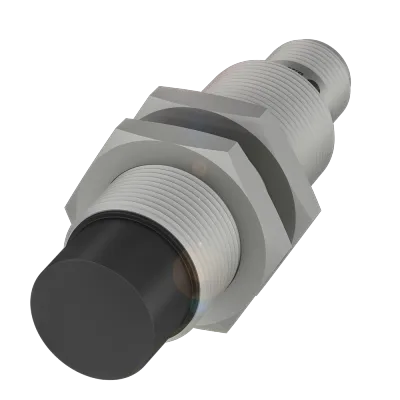

| BES02KF | BES M18ML-PSC12E-S04G-W | Ø 18 x 65 mm | 12 mm | 2500 Hz | CE cULus WEEE |
| BES02K6 | BES M12ML-PSC80E-S04G-W01 | Ø 12 x 65 mm | 8 mm | 2000 Hz | cULus CE UKCA WEEE |
| BES03MZ | BES M30ML-PSC20E-S04G-W01 | Ø 30 x 65 mm | 20 mm | 1000 Hz | cULus CE WEEE |

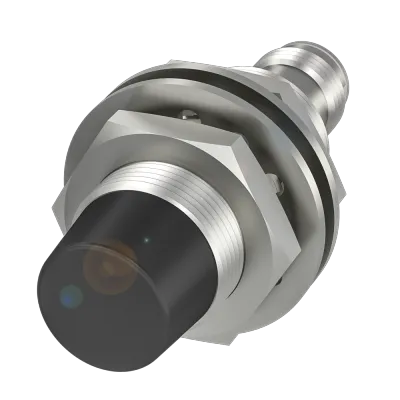

| BES02K8 | BES M18MD-PSC12E-S04G-W01 | Ø 18 x 56 mm | 12 mm | 2500 Hz | CE UKCA cULus WEEE |

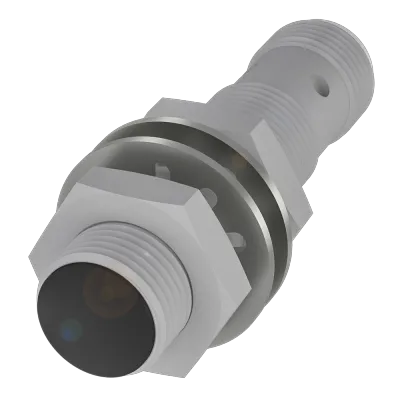

| BES02K0 | BES M12MF1-PSC30A-S04G-W01 | Ø 12 x 50 mm | 3 mm | 2000 Hz | CE cULus WEEE UKCA |
| BES02KN | BES M30ML-PSC10A-S04G-W01 | Ø 30 x 65 mm | 10 mm | 600 Hz | CE cULus WEEE UKCA |

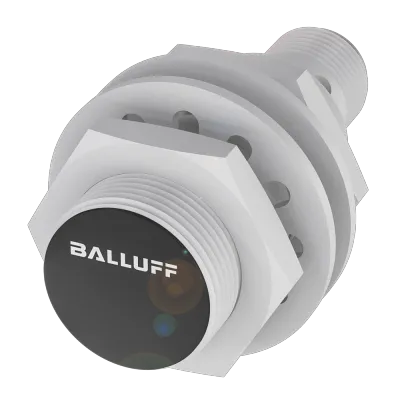

| BES02KA | BES M18MF1-PSC50A-S04G-W01 | Ø 18 x 50 mm | 5 mm | 2500 Hz | cULus CE WEEE |
| BES02JY | BES M12MD1-PSC80E-S04G-W01 | Ø 12 x 50 mm | 8 mm | 2000 Hz | CE UKCA cULus WEEE |

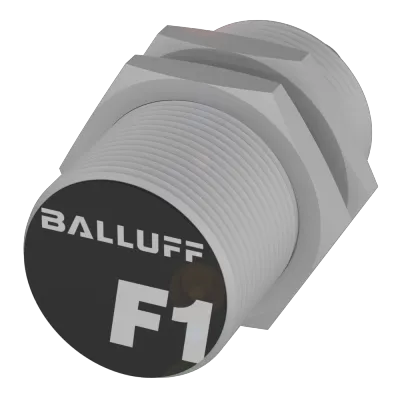

| BES02KL | BES M30MI-PSC13B-S04G-W | Ø 30 x 65 mm | 13 mm | 30 Hz | CE cULus EAC |
| BES021L | BES Q40KFU-PAC35E-S04G-W01-007 | 40 x 40 x 62 mm | 35 mm | 250 Hz | CE cULus EAC WEEE |
| BES0215 | BES Q40KFU-PAC15A-S04G-W01-007 | 40 x 40 x 62 mm | 15 mm | 400 Hz | cULus CE EAC |

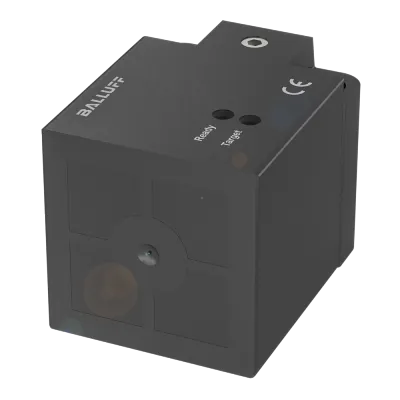

| BES021J | BES Q40KFU-PAC35E-S04G-007 | 40 x 40 x 62 mm | 35 mm | 250 Hz | CE cULus WEEE |
| BES021C | BES Q40KFU-PAC25E-S04G-007 | 40 x 40 x 62 mm | 25 mm | 250 Hz | CE cULus EAC |
| BES022L | BES Q40KFU-PAC15A-S04G-007 | 40 x 40 x 62 mm | 15 mm | 400 Hz | CE cULus EAC |

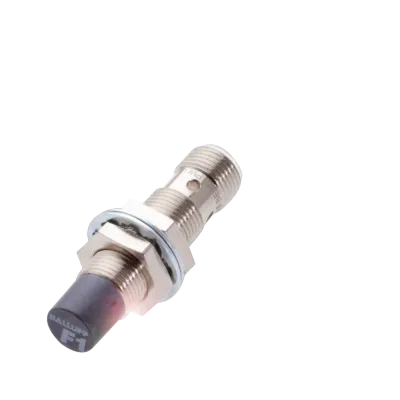

| BES01PW | BES M12MD-PSC80E-S04G | Ø 12 x 50 mm | 8 mm | 2000 Hz | CE UKCA cULus WEEE |

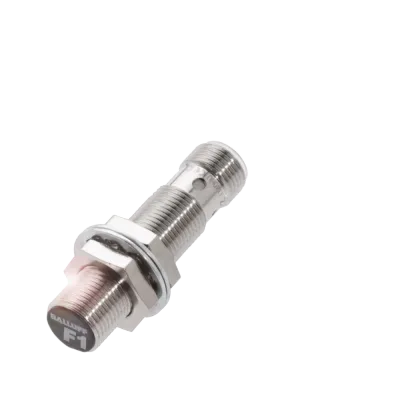

| BES01PZ | BES M12MF-PSC30A-S04G | Ø 12 x 50 mm | 3 mm | 2000 Hz | CE cULus EAC WEEE |
| BES02K3 | BES M12ML-PSC30A-S04G-W | Ø 12 x 65 mm | 3 mm | 2000 Hz | CE UKCA cULus WEEE |
| BES02KJ | BES M18ML-PSC50A-S04G-W | Ø 18 x 65 mm | 5 mm | 2500 Hz | cULus CE UKCA WEEE |
| BES01R3 | BES M18MF-PSC50A-S04G | Ø 18 x 50 mm | 5 mm | 2500 Hz | cULus CE EAC WEEE |

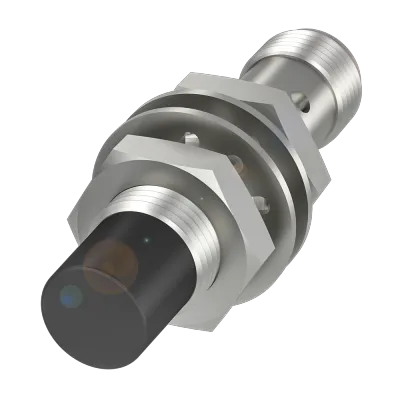

| BES02YU | BES M12MD1-NSC80E-S04G | Ø 12 x 50 mm | 8 mm | 2000 Hz | CE WEEE |
| BES01R2 | BES M18MD-PSC12E-S04G | Ø 18 x 50 mm | 12 mm | 2500 Hz | CE cULus EAC WEEE |
| BES02YR | BES M08EG-PSC15A-S49G-W | Ø 8 x 49 mm | 1.5 mm | 2000 Hz | CE WEEE |
| BES02YT | BES M08EG1-PSC15A-S04G-W | Ø 8 x 57 mm | 1.5 mm | 2000 Hz | CE WEEE |

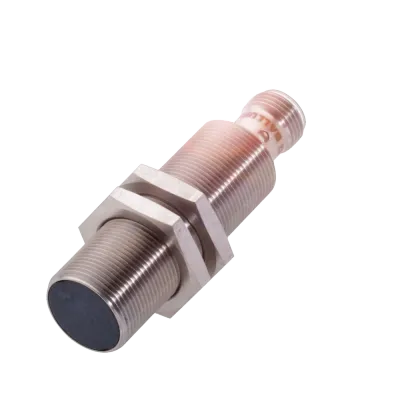

| BES01R1 | BES M18EL-PSH50A-S04G | Ø 18 x 65 mm | 5 mm | 600 Hz | CE EAC WEEE |
Common to all listed parts
| Product group | Inductive factor 1 sensors |
| IP rating | IP67 |
| ECLASS 14.0 | 27-27-40-01 |
| ETIM 9.0 | EC002714 |
| UNSPSC 11 | 41111926 |
