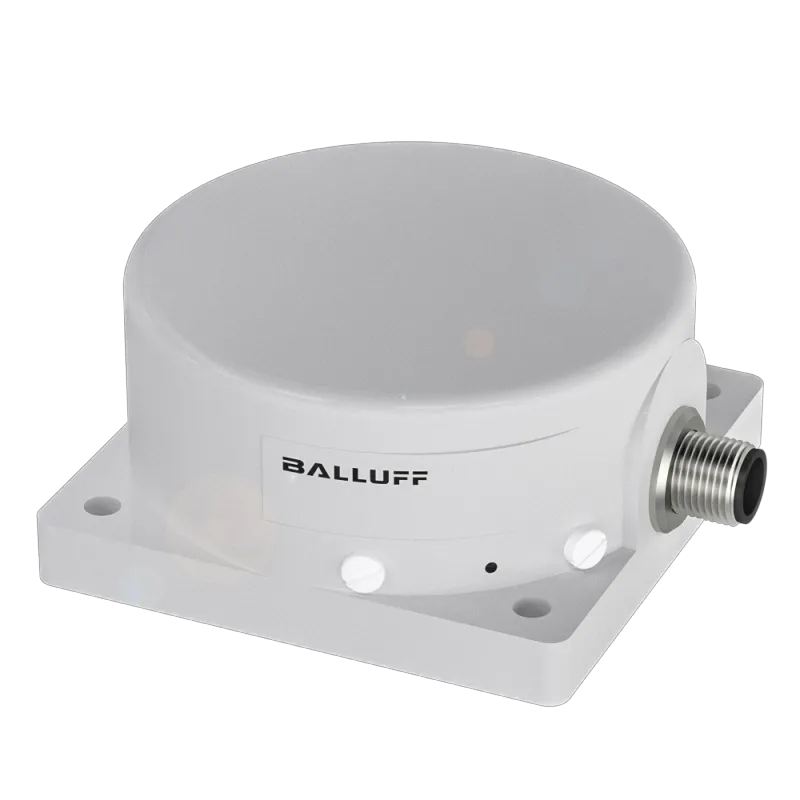

Balluff BAW003K
BAW MKK-050.19-S4 – Inductive distance sensors
- MPN
- BAW003K
- Category
- Inductive distance sensors
Price and lead time confirmed within 1 business day
Discontinued by Balluff — we can still source the original BAW003K (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Balluff BAW003K?
Balluff BAW003K (BAW MKK-050.19-S4) — Inductive distance sensor. Dimension: 80 x 80 x 40 mm; Style Housing: block style; Installation: non-flush; Range: 0...50 mm; Analog output: Analog, voltage 0...10 V. Discontinued by Balluff; Balluff names BAW005J as alternative. PartnerPLC supplies new, surplus and discontinued Balluff parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued by Balluff |
| Type designation | BAW MKK-050.19-S4 |
| Product group | Inductive distance sensors |
| Balluff alternatives | BAW005J |
Key features
| Dimension | 80 x 80 x 40 mm |
| Style Housing | block style |
| Installation | non-flush |
| Range | 0...50 mm |
| Analog output | Analog, voltage 0...10 V |
| Output characteristic | falling on approach |
| Limit frequency –3 dB | 15 Hz |
| Repeat accuracy per BWN | ±12 µm |
| Non-linearity max. | ±1500 µm |
| Housing material | PBT |
| Material sensing surface | PBT |
| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 20...30 VDC |
| Ambient temperature | -10...70 °C |
| IP rating | IP67 |
| Approval/Conformity | CE WEEE |
| Principle of operation | Inductive Distance Sensor |
Classifications
| ECLASS 14.0 | 27-27-40-03 |
| ETIM 9.0 | EC001818 |
| UNSPSC 11 | 41111926 |
No matching specifications
BAW003K: frequently asked questions
Can I still buy the BAW003K now that it is discontinued?
Yes. Balluff has discontinued the BAW003K, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Balluff names the BAW005J as its successor — we can quote both.
When can BAW003K be shipped?
BAW003K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BAW003K in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BAW003K and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BAW003K, subject to availability and destination.
