Inductive distance sensors Parts
Compare Inductive distance sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimension | Style Housing | Range | Repeat accuracy per BWN | Housing material |
|---|---|---|---|---|---|

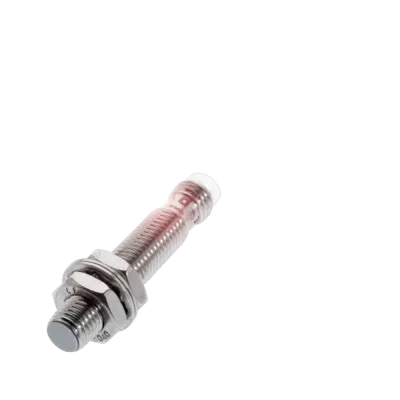

| BAW000M | Ø 8 x 45 mm | M8x1 | 0.5...1.5 mm | ±8 µm | Stainless steel |

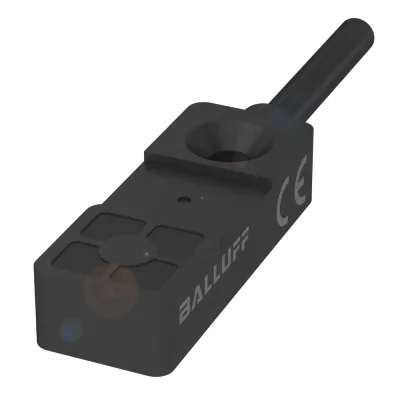

| BAW0032 | 30 x 10 x 6 mm | block style | 1...4 mm | ±35 µm | PA 6, GF30 |

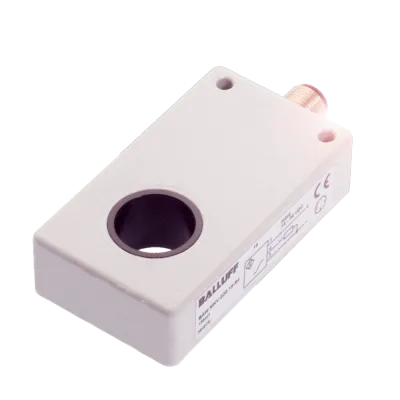

| BAW003L | 80 x 45 x 20 mm | block style | 0...60 mm | ±200 µm | PBT |
| BAW001K | Ø 12 x 65 mm | M12x1 | 0.5...2 mm | ±8.0 µm | Brass, nickel plated |
| BAW000N | Ø 8 x 51.5 mm | M8x1 | 0.5...1.5 mm | ±8 µm | Stainless steel |

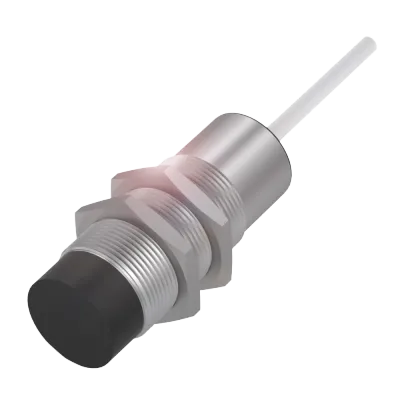

| BAW000F | Ø 30 x 83 mm | M30x1.5 | 3...15 mm | ±20.0 µm | Brass, nickel plated |

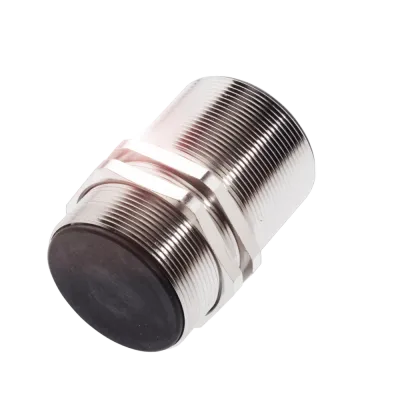

| BAW003M | Ø 47 x 70 mm | PG36 | 0...20 mm | ±5 µm | Brass, nickel-plated |
| BAW003K | 80 x 80 x 40 mm | block style | 0...50 mm | ±12 µm | PBT |

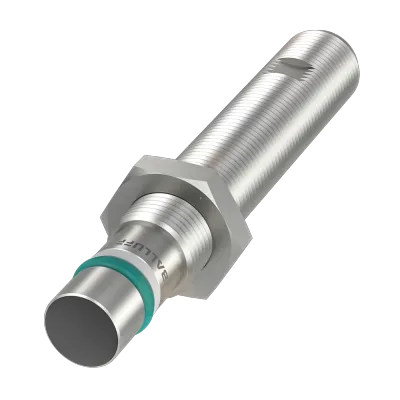

| BAW0040 | Ø 12 x 78 mm | M12x1 | 0.5...2 mm | ±8 µm | Stainless steel |
| BAW003E | 38.5 x 14 x 17 mm | block style | 1...5 mm | ±10 µm | Aluminium, Anodized |
| BAW0034 | 30 x 20 x 8 mm | block style | 0.5...2 mm | ±12 µm | Aluminium, Anodized |

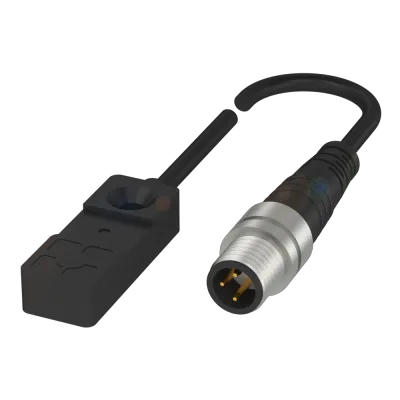

| BAW0031 | 30 x 10 x 6 mm | block style | 1...4 mm | ±35 µm | PA 6, GF30 |
| BAW0064 | 20 x 15 x 42 mm | Block style | 2...15 mm | ±200 µm | PA 12 |

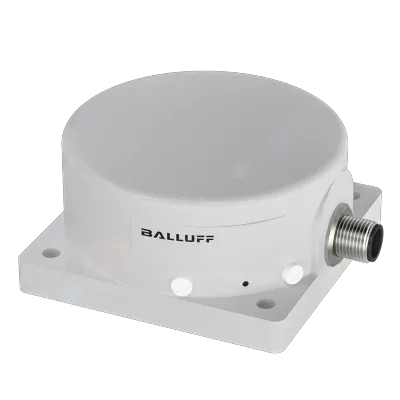

| BAW005J | 80 x 40 x 80 mm | block style | 0...50 mm | ±12 µm | PBT |
| BAW002Y | Ø 30 x 57 mm | M30x1.5 | 3...15 mm | ±12 µm | Brass, nickel-plated |
| BAW000J | Ø 6.5 x 30.5 mm | D6.5 | 0.5...2 mm | ±10 µm | Stainless steel |
| BAW003J | Ø 18 x 76.5 mm | M18x1 | 1...5 mm | ±8.0 µm | Brass, nickel plated |
Common to all listed parts
| Output characteristic | falling on approach |
