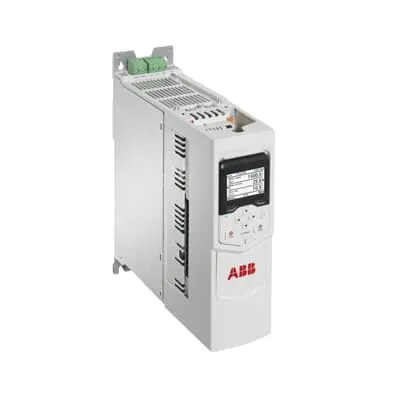

ABB ACS880-M04-018A-2

LV AC machinery drive module, IEC: Pn 4 kW, 18 A, 230 V, UL: Pld 5 Hp, 16.8 A, 230 V ( )

MPN: ACS880-M04-018A-2
Category: ACS880-M04

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ACS880-M04-018A-2?

LV AC machinery drive module, IEC: Pn 4 kW, 18 A, 230 V, UL: Pld 5 Hp, 16.8 A, 230 V (ACS880-M04-018A-2)

Specifications

Ordering

Customs Tariff Number	85044087
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS880-M04-018A-2 PN: 4 kW, IN: 18 A kW
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	5.6 kg, 12.3 lb kg
Product Net Depth / Length	234 mm, 9.21 in mm
Product Net Height	476 mm, 18.74 in mm
Product Net Width	100 mm, 3.94 in mm
Package Level 1 Depth / Length	450 mm, 17.72 in mm
Package Level 1 Height	360 mm, 14.17 in mm
Package Level 1 Width	200 mm, 7.87 in mm
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	1000 m m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	39 dB(A) A
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g V
Frequency (f)	47.5 ... 63 Hz Hz
Frame Size	R2
Input Voltage (Uin)	200 ... 240 V V
Mounting Type	Module
Communication Protocol	CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 3, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 5
Output Current, Normal Use (In)	18 A A
Output Current, Light-Overload Use (ILD)	16.8 A A
Output Current, Heavy-Duty Use (IHD)	14 A A
Output Power, Normal Use (Pn)	4 kW kW
Output Power, Light-Overload Use (PLD)	4 kW kW
Output Power, Heavy-Duty Use (PHD)	3 kW kW
Apparent Power Output	7.2 kV·A A
Efficiency Level	IE2
Standby Loss	30 W W
Temperature Rating	Maximum 40 °C

Technical UL

Output Current, Heavy-Duty Use (UL)	14 A A
Output Current, Light-Overload Use (UL)	16.8 A A
Output Power, Heavy-Duty Use (UL)	3 Hp
Output Power, Light-Overload Use (UL)	5 Hp

Certificates and Declarations

REACH Date	20250905
REACH Declaration	9AKK107992A7060
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	3AXD10000497831
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental

SCIP	09742e09-6081-4a7d-97e4-a8051c2bea68 Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001
