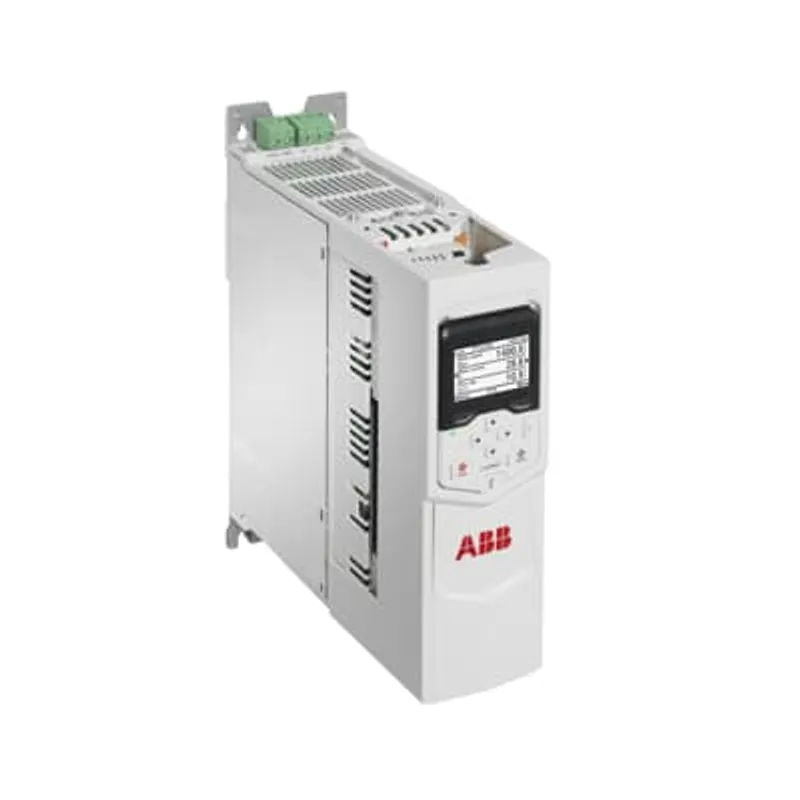

ABB ACS880-M04-014A-5

Name: ABB ACS880-M04-014A-5
Brand: ABB
SKU: ACS880-M04-014A-5

MPN: ACS880-M04-014A-5 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Machinery Drive
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	5.6 kg

Shipping & availability

When can ACS880-M04-014A-5 be shipped?

ACS880-M04-014A-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS880-M04-014A-5 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS880-M04-014A-5 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-M04-014A-5, subject to availability and destination.

LV AC machinery drive module, IEC: Pn 5.5 kW, 14 A, 400 V, UL: Pld 7.5 Hp, 13 A, 480 V (ACS880-M04-014A-5)

Specifications

Customs Tariff Number	85044086
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS880-M04-014A-5 PN: 5.5 kW, IN: 14 A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	5.6 kg, 12.3 lb
Product Net Depth / Length	234 mm, 9.21 in
Product Net Height	476 mm, 18.74 in
Product Net Width	100 mm, 3.94 in
Package Level 1 Depth / Length	450 mm, 17.72 in
Package Level 1 Height	360 mm, 14.17 in
Package Level 1 Width	200 mm, 7.87 in
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	1000 m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	39 dB(A)
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f)	47.5 ... 63 Hz
Frame Size	R2
Input Voltage (Uin)	380 ... 500 V
Mounting Type	Module
Communication Protocol	CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 3, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 5
Output Current, Normal Use (In)	14 A
Output Current, Light-Overload Use (ILD)	13 A
Output Current, Heavy-Duty Use (IHD)	11 A
Output Power, Normal Use (Pn)	5.5 kW
Output Power, Light-Overload Use (PLD)	5.5 kW
Output Power, Heavy-Duty Use (PHD)	5.5 kW
Apparent Power Output	9.7 kV·A
Efficiency Level	IE2
Standby Loss	32 W
Temperature Rating	Maximum 40 °C
Output Current, Heavy-Duty Use (UL)	11 A
Output Current, Light-Overload Use (UL)	13 A
Output Power, Heavy-Duty Use (UL)	7.5 Hp
Output Power, Light-Overload Use (UL)	7.5 Hp
REACH Date	20250905
REACH Declaration	REACH SVHC-250 declaration
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	EU Declaration of Conformity for ACS880-01, ACS880-04/-04F, ACS880-11/-31, ACS880-14/-34, ACS880-M04
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	e551ec43-3ae3-4814-b2e4-9b0cbea5e237 Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC	39122001
