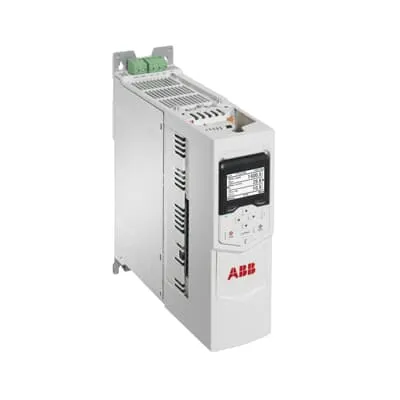

ABB ACS880-M04-010A-2

Name: ABB ACS880-M04-010A-2
Brand: ABB
SKU: ACS880-M04-010A-2

MPN: ACS880-M04-010A-2 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ACS880-M04
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	5.6 kg

Shipping & availability

When can ACS880-M04-010A-2 be shipped?

ACS880-M04-010A-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS880-M04-010A-2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS880-M04-010A-2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS880-M04-010A-2, subject to availability and destination.

LV AC machinery drive module, IEC: Pn 2.2 kW, 10.5 A, 230 V, UL: Pld 3 Hp, 9.7 A, 230 V (ACS880-M04-010A-2)

Specifications

Ordering

Customs Tariff Number	85044087
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS880-M04-010A-2 PN: 2.2 kW, IN: 10.5 A kW
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	5.6 kg, 12.3 lb kg
Product Net Depth / Length	234 mm, 9.21 in mm
Product Net Height	476 mm, 18.74 in mm
Product Net Width	100 mm, 3.94 in mm
Package Level 1 Depth / Length	450 mm, 17.72 in mm
Package Level 1 Height	360 mm, 14.17 in mm
Package Level 1 Width	200 mm, 7.87 in mm
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Altitude	1000 m m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	39 dB(A) A
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g V
Frequency (f)	47.5 ... 63 Hz Hz
Frame Size	R2
Input Voltage (Uin)	200 ... 240 V V
Mounting Type	Module
Communication Protocol	CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 3, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0
Includes	PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 5
Output Current, Normal Use (In)	10.5 A A
Output Current, Light-Overload Use (ILD)	9.7 A A
Output Current, Heavy-Duty Use (IHD)	9 A A
Output Power, Normal Use (Pn)	2.2 kW kW
Output Power, Light-Overload Use (PLD)	2.2 kW kW
Output Power, Heavy-Duty Use (PHD)	1.5 kW kW
Apparent Power Output	4.2 kV·A A
Efficiency Level	IE2
Standby Loss	29 W W
Temperature Rating	Maximum 40 °C

Technical UL

Output Current, Heavy-Duty Use (UL)	9 A A
Output Current, Light-Overload Use (UL)	9.7 A A
Output Power, Heavy-Duty Use (UL)	2 Hp
Output Power, Light-Overload Use (UL)	3 Hp

Certificates and Declarations

REACH Date	20250905
REACH Declaration	9AKK107992A7060
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	3AXD10000497831
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
