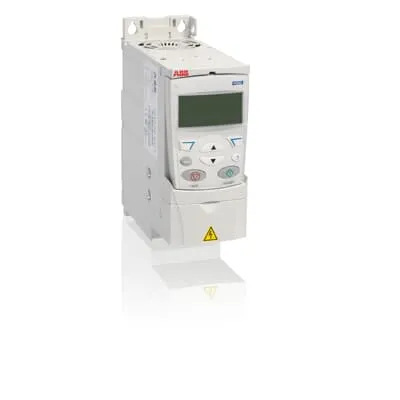

ABB ACS320-03U-23A1-4

HVAC OEM pump and fan microdrive, UL: Pld 15 Hp, 30.9 A, 460 V ( )

MPN: ACS320-03U-23A1-4
Category: ACS320

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACS320-03U-23A1-4?

The compact ACS320 will save energy throughout your pump and fan HVAC applications. From booster pumps, exhaust and condenser fans to supply and return fans, the drive’s built-in HVAC features such as embedded BACnet (MS/TP) ensure easy and complete integration into building management systems.

Specifications

Ordering

Customs Tariff Number	85044084
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS320-03U-23A1-4, 480VAC, Pn 15HP, I2LD 23.1 A, N0/IP20 A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	5.5 lb
Product Net Depth / Length	6.65 in
Product Net Height	9.29 in
Product Net Width	6.65 in

Technical

Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Frequency (f)	50/60 Hz Hz
Frame Size	R3
Input Voltage (Uin)	440 … 480 V V
Mounting Type	Wall-mounting
Apparent Power Output	19 kV·A A
Efficiency Level	IE2
Standby Loss	13 W W
Temperature Rating	40 °C

Technical UL

Output Current, Light-Overload Use (UL)	30.9 A A
Output Power, Light-Overload Use (UL)	15 Hp

Environmental

SCIP	e6d5d8a1-6fda-4f06-be32-c8f10666cd62 Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001

ACS320-03U-23A1-4: frequently asked questions

When can ACS320-03U-23A1-4 be shipped?

ACS320-03U-23A1-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ACS320-03U-23A1-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ACS320-03U-23A1-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS320-03U-23A1-4, subject to availability and destination.
