ACS320 Parts
Compare ACS320
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Frame Size | Apparent Power Output | Standby Loss | Output Current, Light-Overload Use (UL) | Output Power, Light-Overload Use (UL) |
|---|---|---|---|---|---|
| ACS320-03E-12A5-4 | R3 | — | — | — | — |
| ACS320-03U-03A9-2 | R0 | 1.6 kV·A A | 7 W W | 6.7 A A | 0.75 Hp |
| ACS320-03U-10A8-2 | R2 | 4.3 kV·A A | 8 W W | 15.7 A A | 2+ Hp |
| ACS320-03U-02A6-2 | R0 | 1.0 kV·A A | 7 W W | 4.7 A A | 0.5 Hp |
| ACS320-01U-09A8-2 | R2 | — | — | 21 A A | 3 Hp |

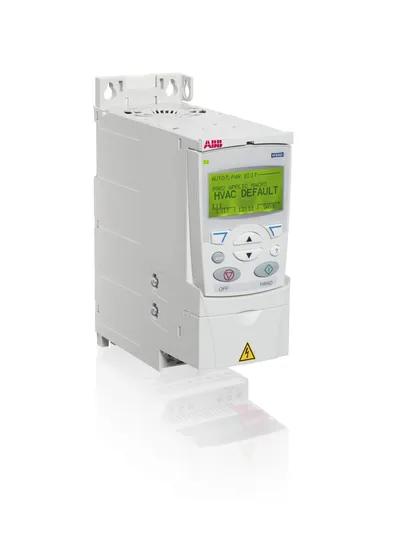

| ACS320-03U-07A4-2 | R1 | 2.9 kV·A A | 7 W W | 13 A A | 1.5 Hp |
| ACS320-01U-07A5-2 | R2 | — | — | 16.8 A A | 2 Hp |
| ACS320-03U-08A3-2 | R1 | 3.3 kV·A A | 7 W W | 13.2 A A | 2 Hp |
| ACS320-03U-05A2-2 | R1 | 2.1 kV·A A | 7 W W | 8.4 A A | 1 Hp |
| ACS320-01U-04A7-2 | R1 | — | — | 11.4 A A | 1 Hp |
| ACS320-01U-06A7-2 | R1 | — | — | 16.1 A A | 1.5 Hp |
| ACS320-03U-44A0-4 | R4 | 37 kV·A A | 15 W W | 67 A A | 30 Hp |
| ACS320-03U-08A8-4 | R1 | 7.3 kV·A A | 9 W W | 13.6 A A | 5 Hp |

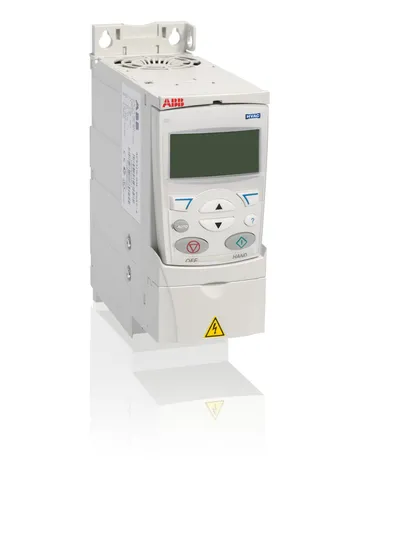

| ACS320-03U-31A0-4 | R4 | 26 kV·A A | 12 W W | 52 A A | 20 Hp |
| ACS320-03U-38A0-4 | R4 | 32 kV·A A | 14 W W | 61 A A | 25 Hp |
| ACS320-03U-15A6-4 | R3 | 13 kV·A A | 11 W W | 22.1 A A | 10 Hp |
| ACS320-03U-05A6-4 | R1 | 4.7 kV·A A | 8 W W | 9.6 A A | 3 Hp |
| ACS320-03U-12A5-4 | R3 | 10 kV·A A | 11 W W | 18.8 A A | 7.5 Hp |
| ACS320-03U-23A1-4 | R3 | 19 kV·A A | 13 W W | 30.9 A A | 15 Hp |
| ACS320-03U-07A3-4 | R1 | 6.1 kV·A A | 9 W W | 11.6 A A | 3+ Hp |
| ACS320-01U-02A4-2 | R0 | — | — | 6.1 A A | 0.5 Hp |
| ACS320-DEMOCASE w/US cord | A A | — | — | — | — |
Common to all listed parts
| Customs Tariff Number | 85044084 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
