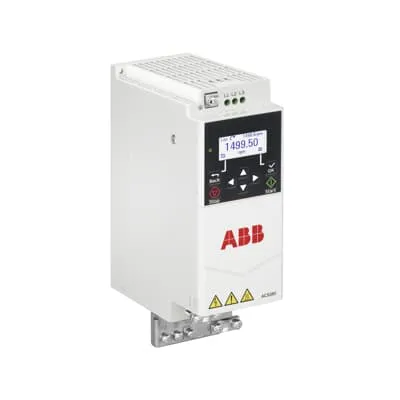

ABB ACS180-04N-050A-4

LV AC machinery drive module, IEC: Pn 22 kW, 50 A ( )

MPN: ACS180-04N-050A-4
Category: ACS180

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB ACS180-04N-050A-4?

The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.

Specifications

Ordering

Customs Tariff Number	85044087
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACS180-04N-050A-4 PN:22kW, IN:50A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	5.21 kg kg
Product Net Depth / Length	178 mm mm
Product Net Height	205 mm mm
Product Net Width	260 mm mm
Package Level 1 Depth / Length	225 mm mm
Package Level 1 Height	115 mm mm
Package Level 1 Width	220 mm mm
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Frequency (f)	47.5 ... 63 Hz Hz
Frame Size	R4
Input Voltage (Uin)	380 … 480 V V
Mounting Type	Module_NO UNIT$
Output Current, Normal Use (In)	50 A A
Output Current, Light-Overload Use (ILD)	48 A A
Output Current, Heavy-Duty Use (IHD)	45 A A
Output Power, Normal Use (Pn)	22 kW kW
Output Power, Light-Overload Use (PLD)	22 kW kW
Output Power, Heavy-Duty Use (PHD)	22 kW kW
Efficiency Level	IE2

Environmental

SCIP	a7e9add0-620e-4316-8bd6-c358d91bc66b Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

39122001
