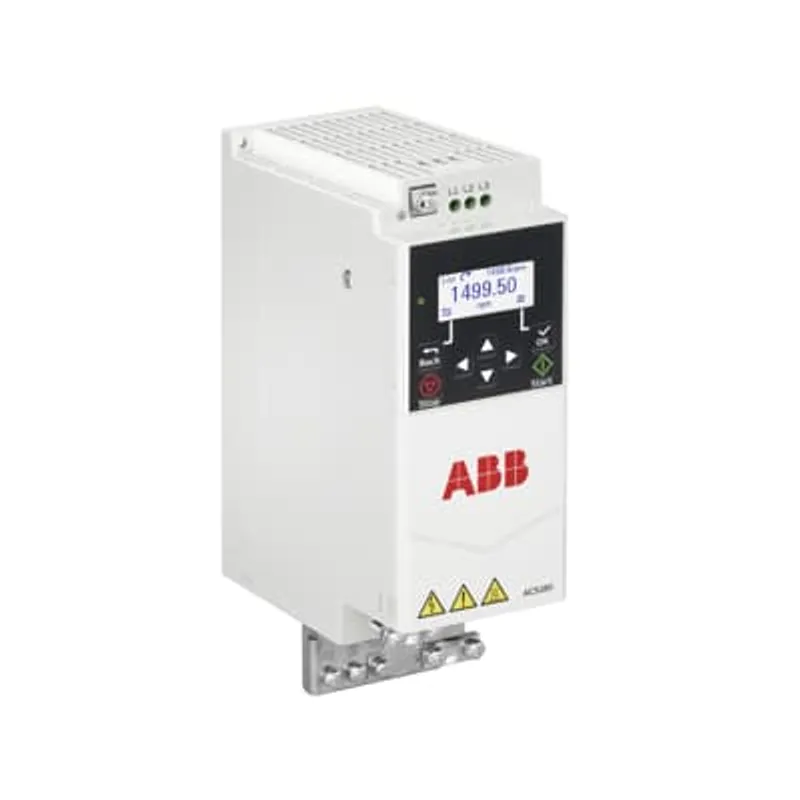

ABB ACS180-04N-07A8-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Machinery Drive |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.24 kg |
Shipping & availability
When can ACS180-04N-07A8-1 be shipped?
ACS180-04N-07A8-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACS180-04N-07A8-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACS180-04N-07A8-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACS180-04N-07A8-1, subject to availability and destination.
The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB’s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Specifications
Specifications
| Customs Tariff Number | 85044085 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACS180-04N-07A8-1 PN: 1.5 kW, IN: 7.8 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 1.24 kg, 2.734 lb |
| Product Net Depth / Length | 143 mm, 5.630 in |
| Product Net Height | 220 mm, 8.661 in |
| Product Net Width | 70 mm, 2.756 in |
| Package Level 1 Depth / Length | 225 mm, 8.858 in |
| Package Level 1 Height | 115 mm, 4.528 in |
| Package Level 1 Width | 220 mm, 8.661 in |
| Package Level 1 Units | 1 carton |
| Number of Phases | 1-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Altitude | 2000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Power Factor | 0.98 |
| Sound dB (A) | 51.8 dB(A) |
| Multiple Battery Information | No battery / cell included |
| Frequency (f) | 47 ... 63 Hz |
| Frame Size | R1 |
| Input Voltage (Uin) | 200 ... 240 V |
| Mounting Type | Module |
| Communication Protocol | MODBUS |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 1, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 0 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Number of Digital In/Outputs | 4 / 2 |
| Output Current, Normal Use (In) | 7.8 A |
| Output Current, Light-Overload Use (ILD) | 7.5 A |
| Output Current, Heavy-Duty Use (IHD) | 6.6 A |
| Output Power, Normal Use (Pn) | 1.5 kW |
| Output Power, Light-Overload Use (PLD) | 1.5 kW |
| Output Power, Heavy-Duty Use (PHD) | 1.1 kW |
| Apparent Power Output | 3.1 kV·A |
| Output Current, Heavy-Duty Use (UL) | 6.6 A |
| Output Current, Light-Overload Use (UL) | 7.5 A |
| Output Power, Heavy-Duty Use (UL) | 1.5 Hp |
| Output Power, Light-Overload Use (UL) | 2 Hp |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20250106 |
| RoHS Declaration | ACS180 EU Declaration of Conformity |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 030cdeeb-e61c-40db-b392-d77adebb2036 Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
